Center Mounted Brake Lamp: Service and Repair

Center High Mounted Stoplamp Removal and Installation

Removal
1. Disconnect the negative battery cable.
2. Open the rear deck lid.

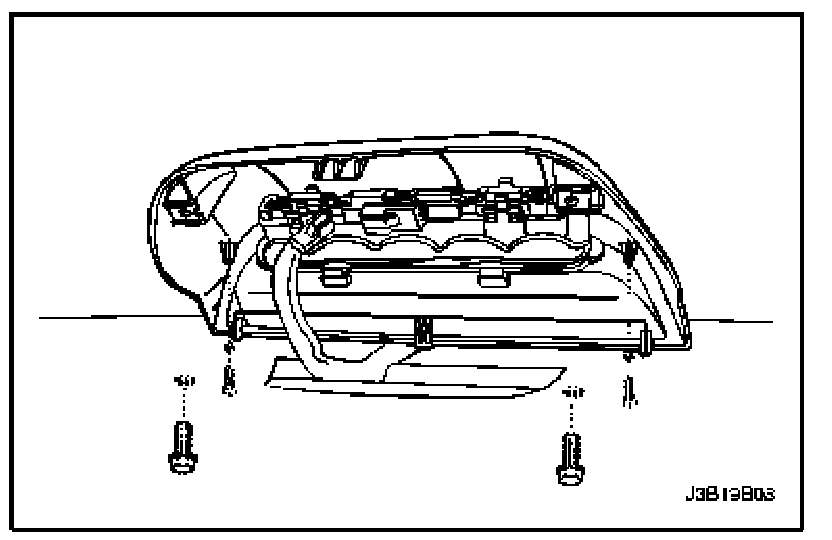

3. Remove the bolts and the CHMSL.

Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the CHMSL with the bolts.

Tighten: Tighten the CHMSL mounting bolts to 4 Nm (35 in. lbs.).




2. Connect the negative battery cable.
