Connectors

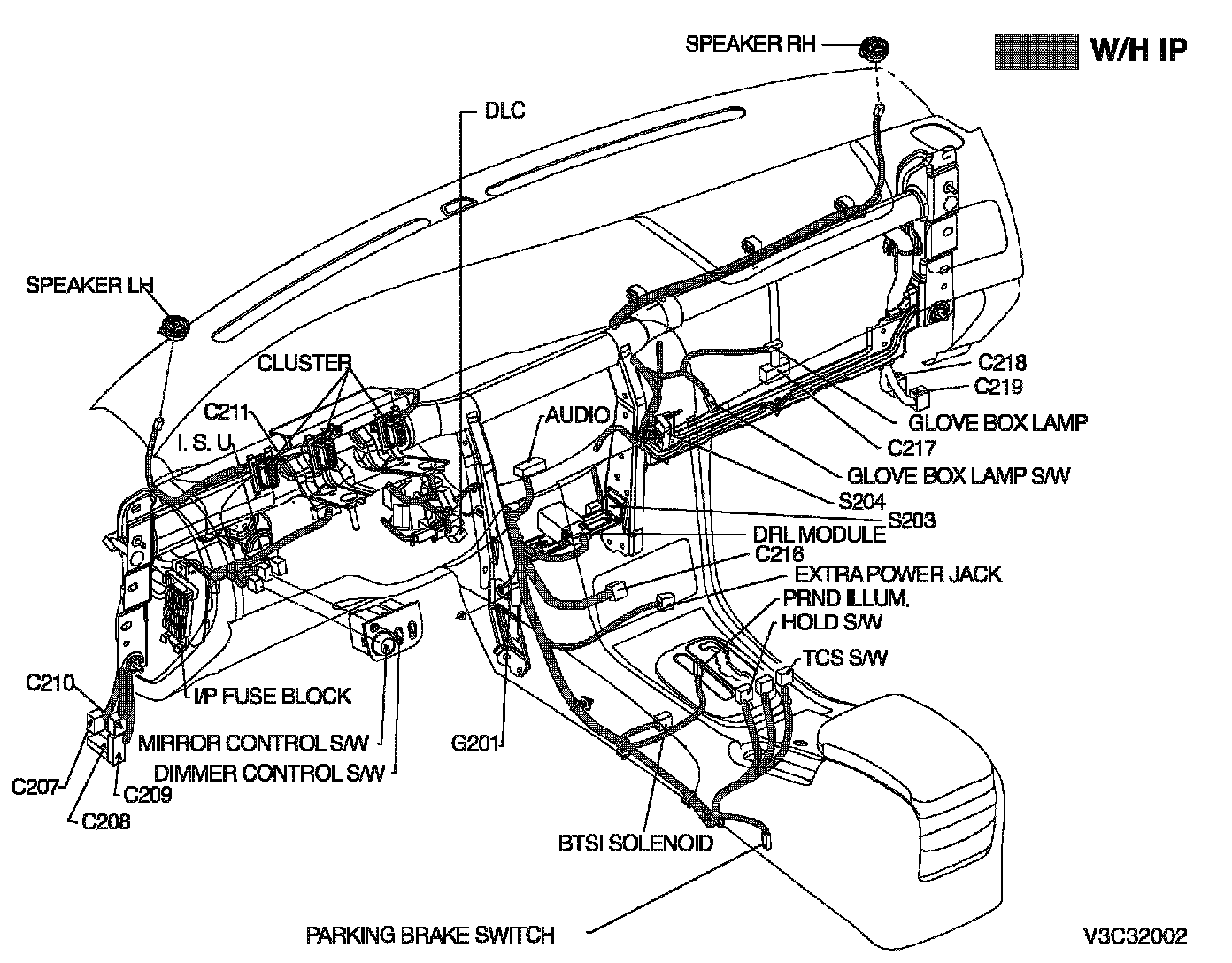

W/H Instrument Panel:

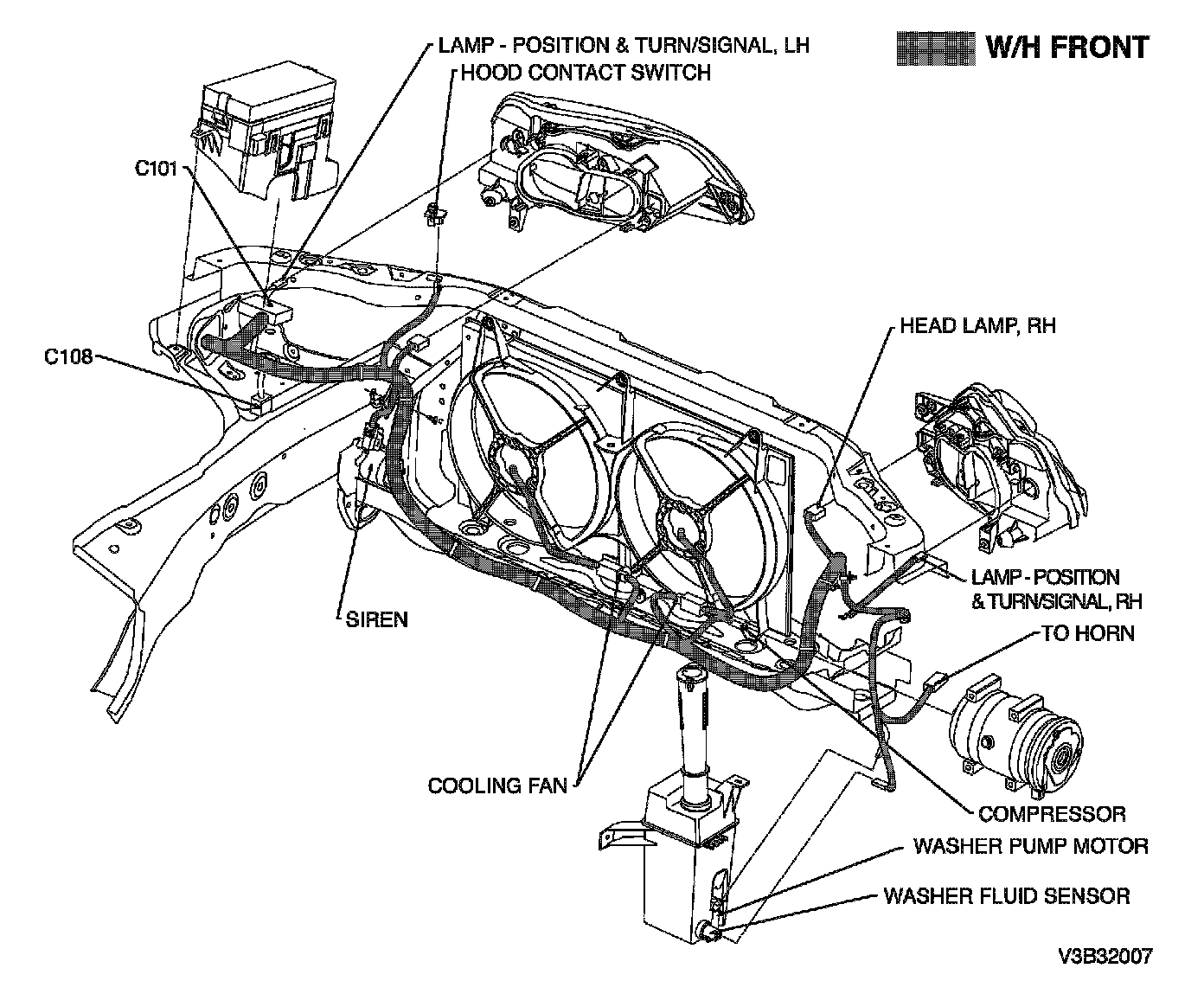

W/H Front:

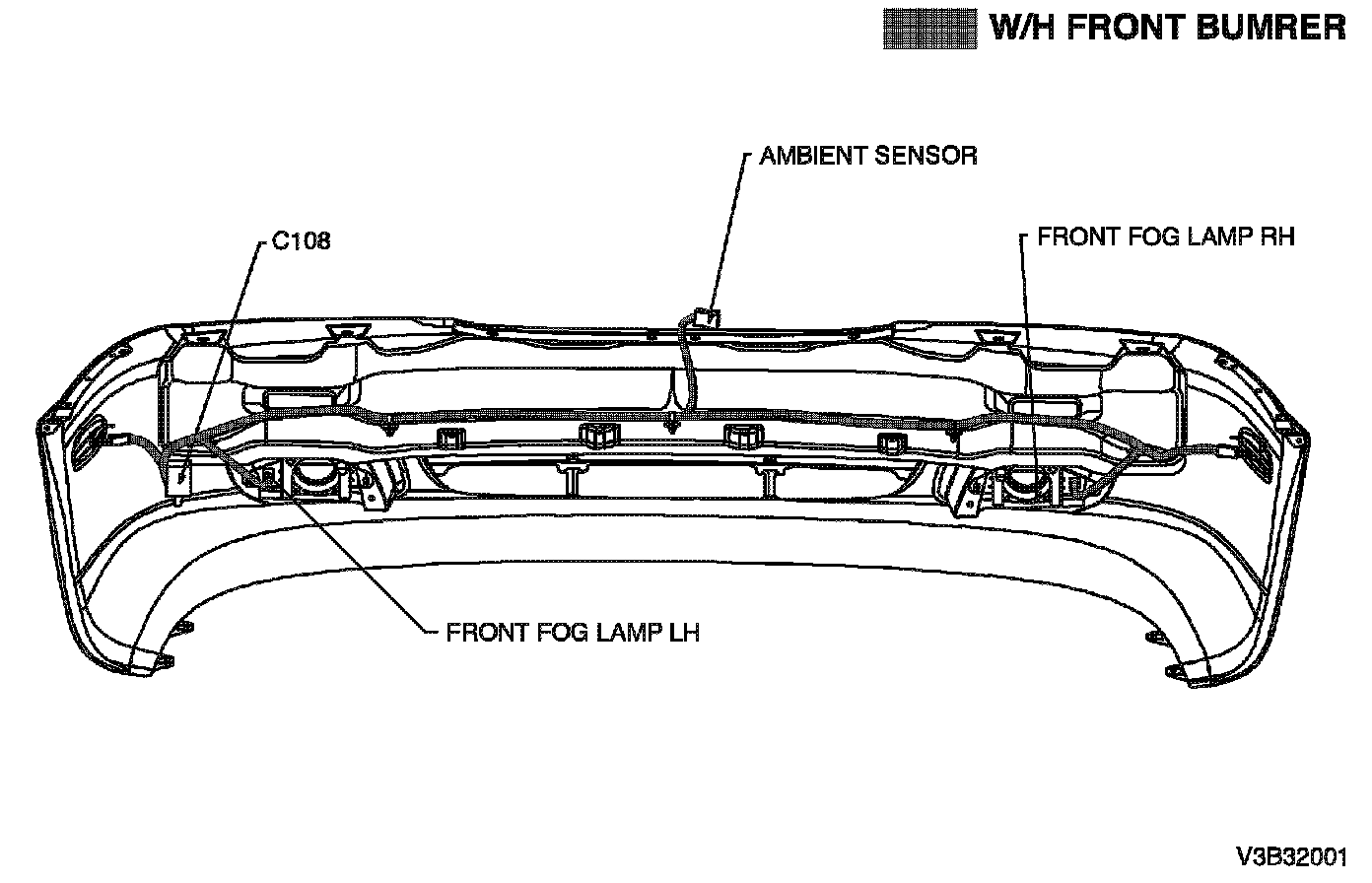

W/H Front Bumper:

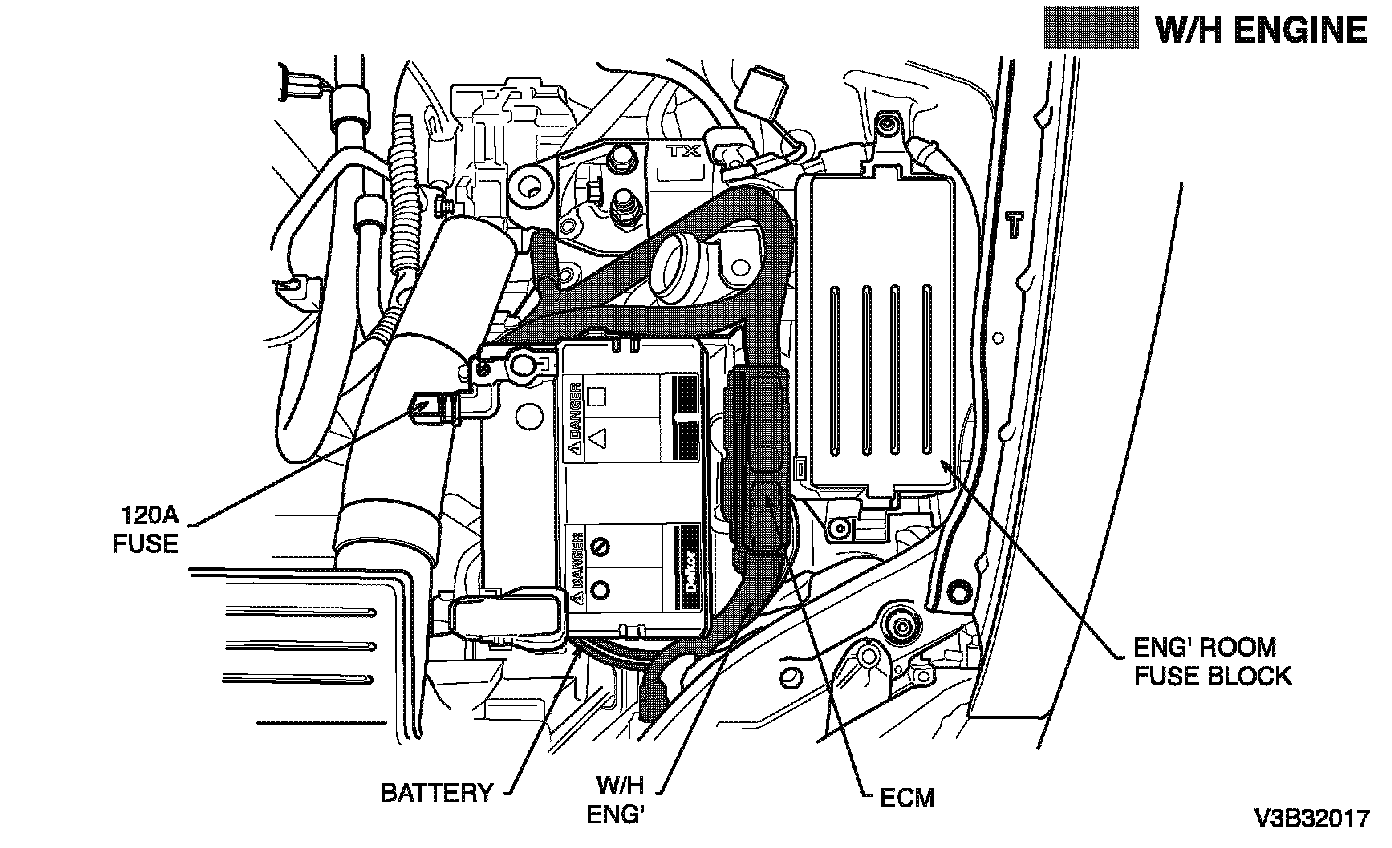

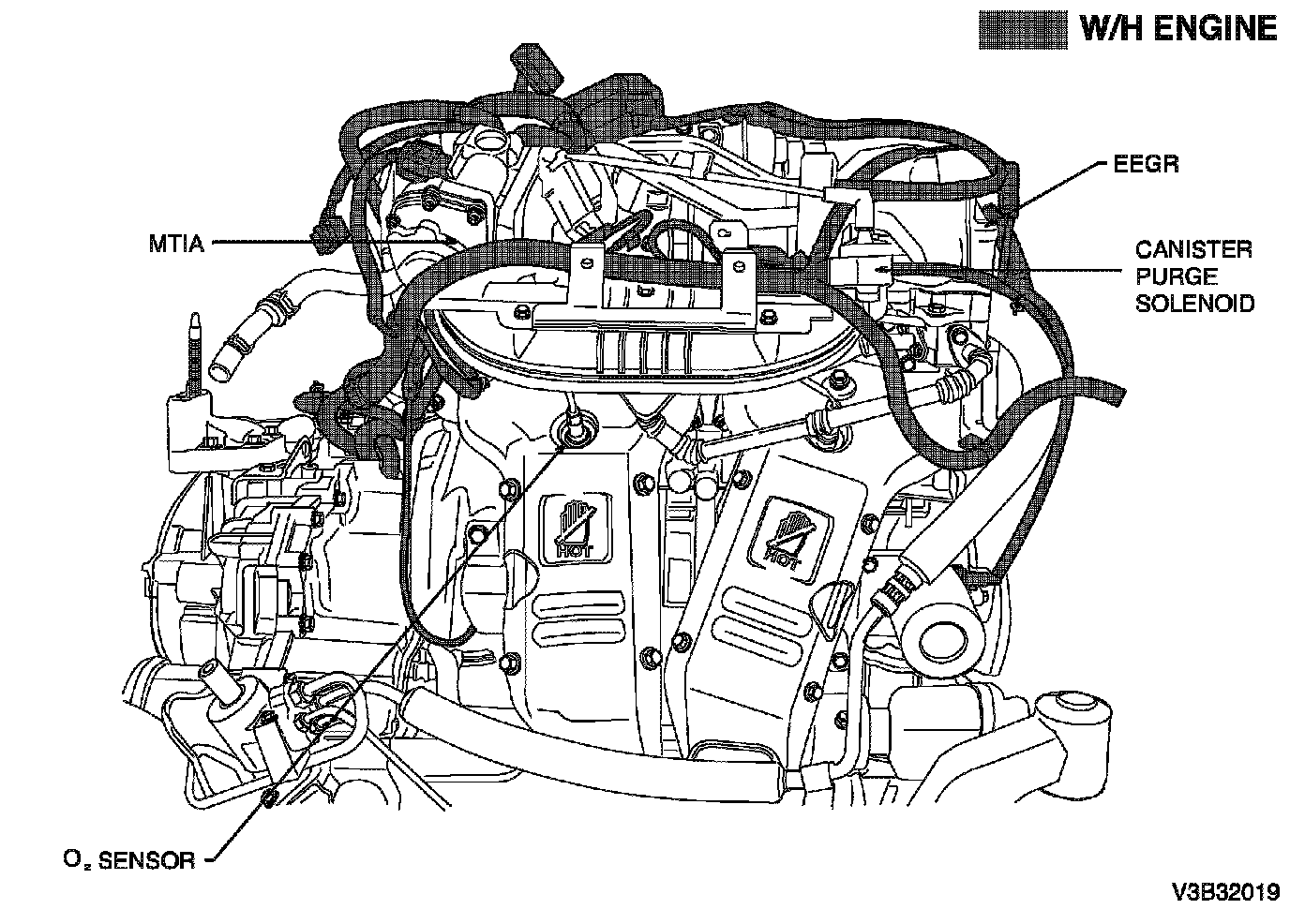

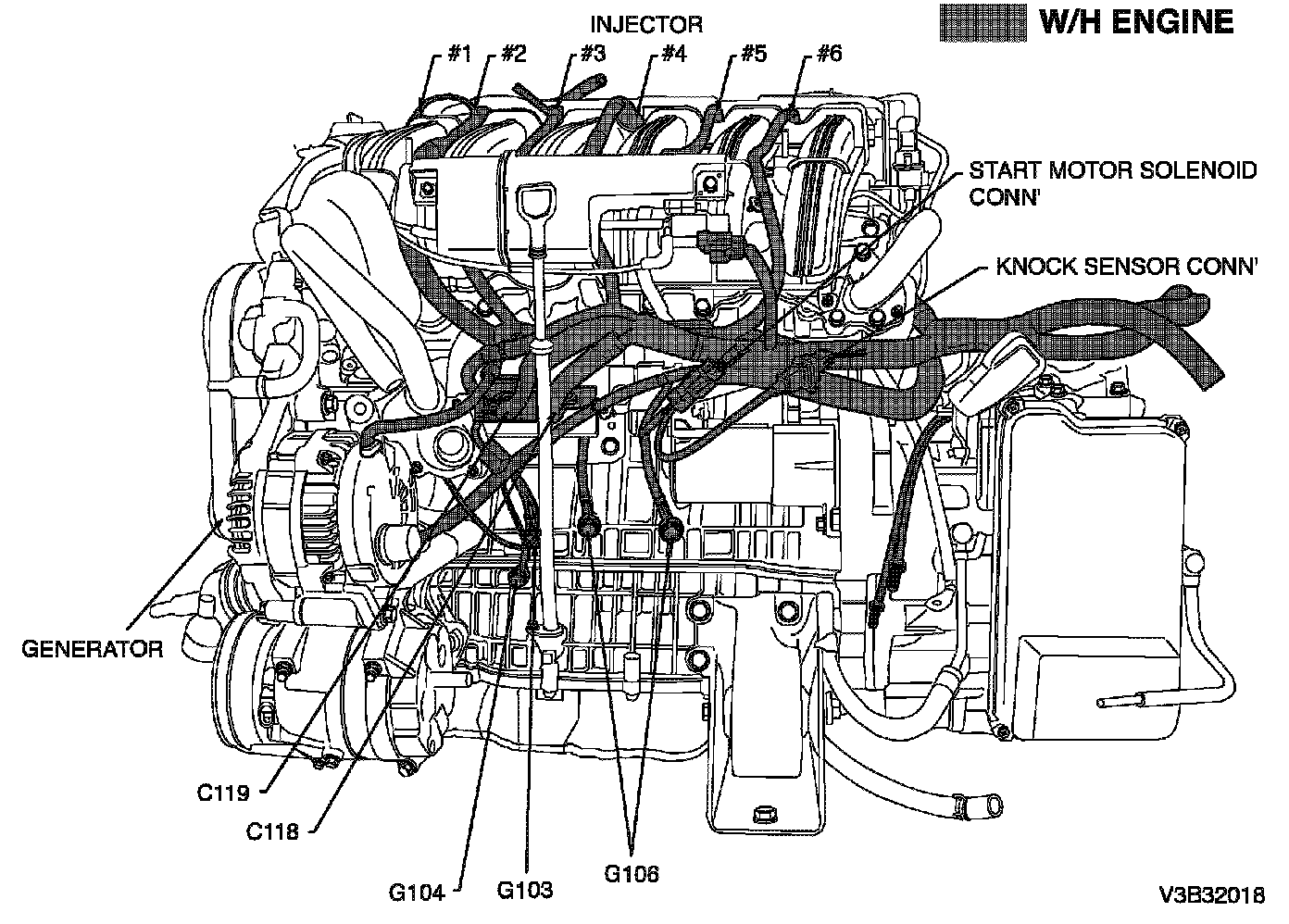

W/H Engine (view 1):

W/H Engine (view 2):

W/H Engine (view 3):

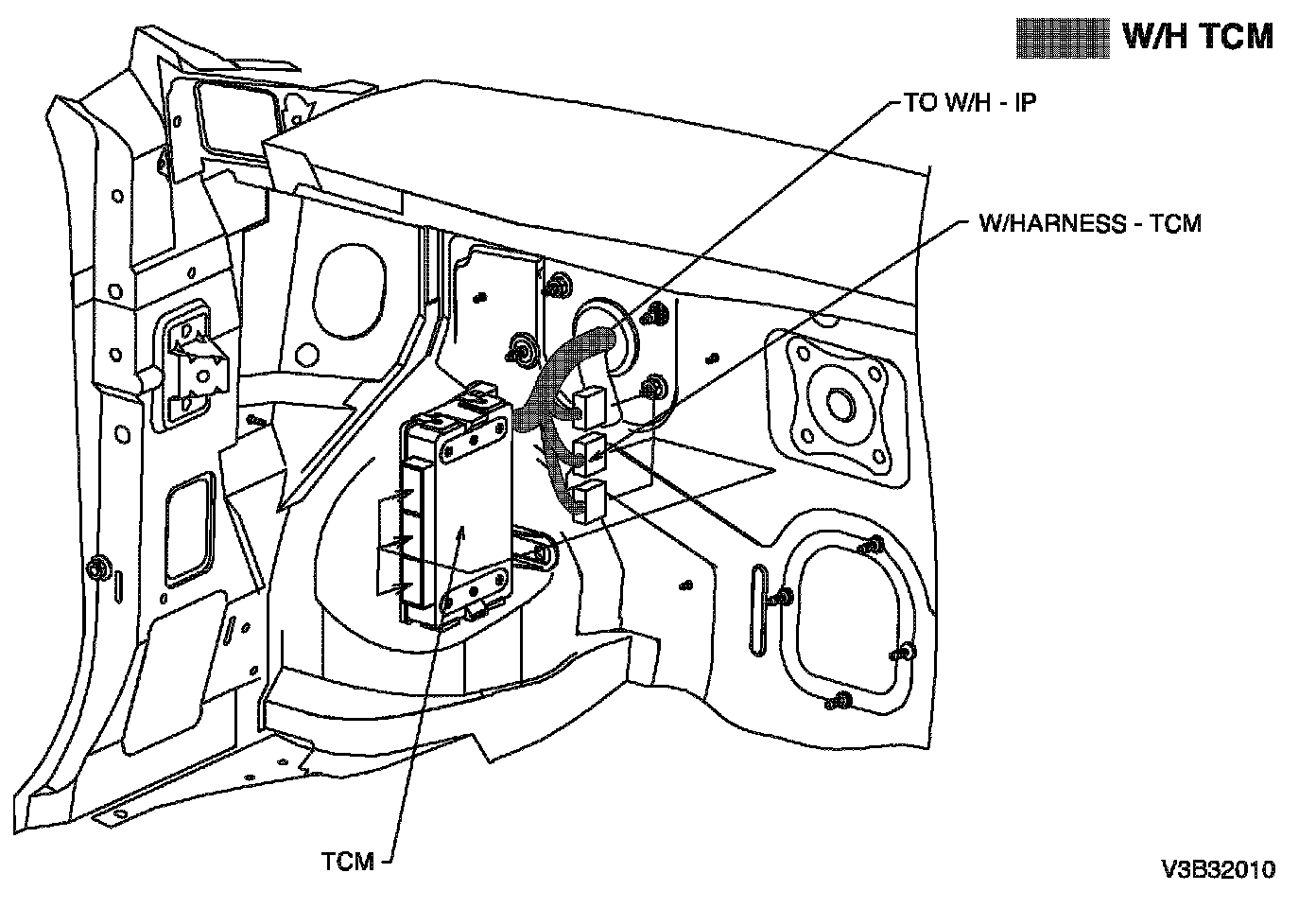

W/H TCM:

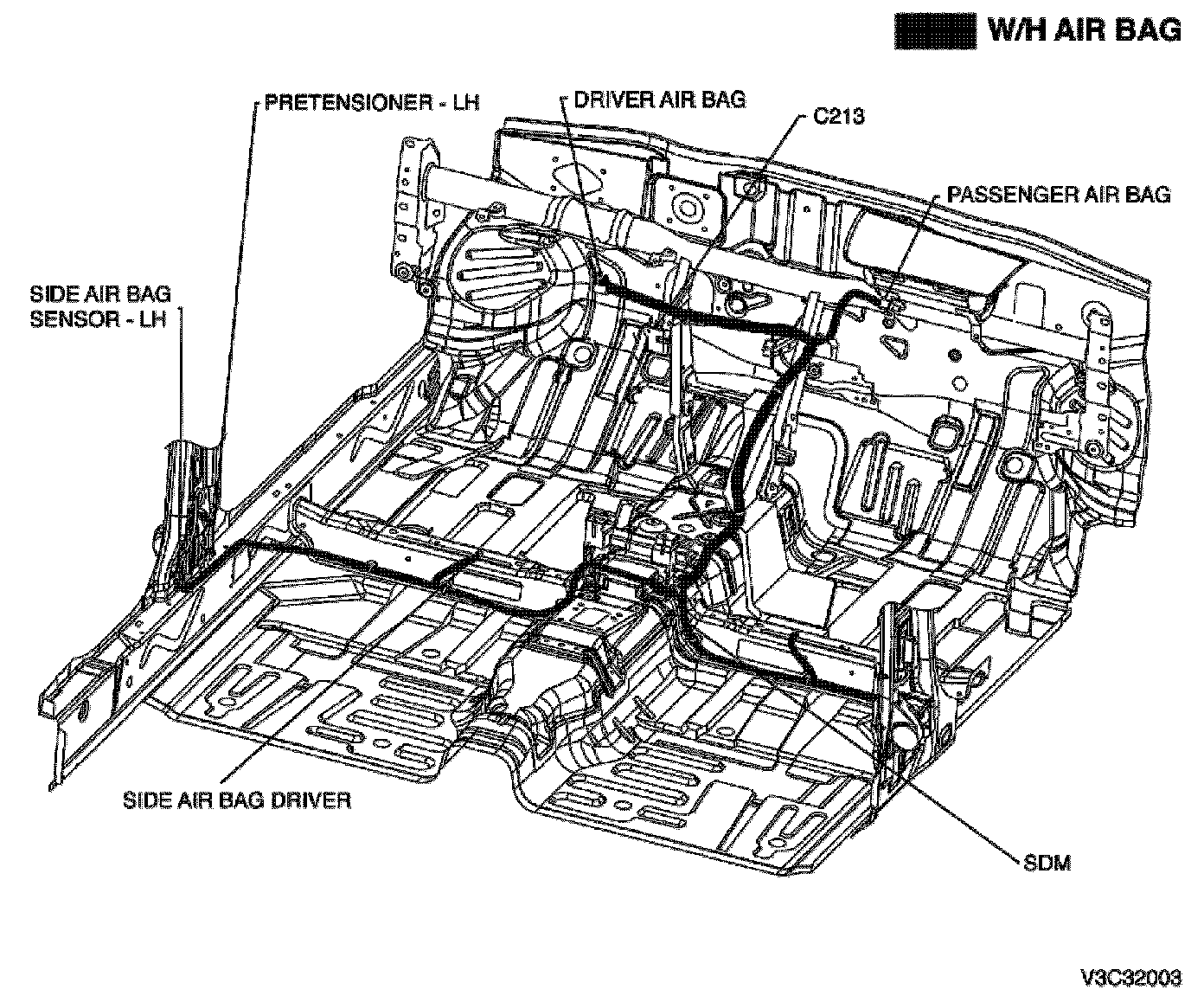

W/H Air Bag:

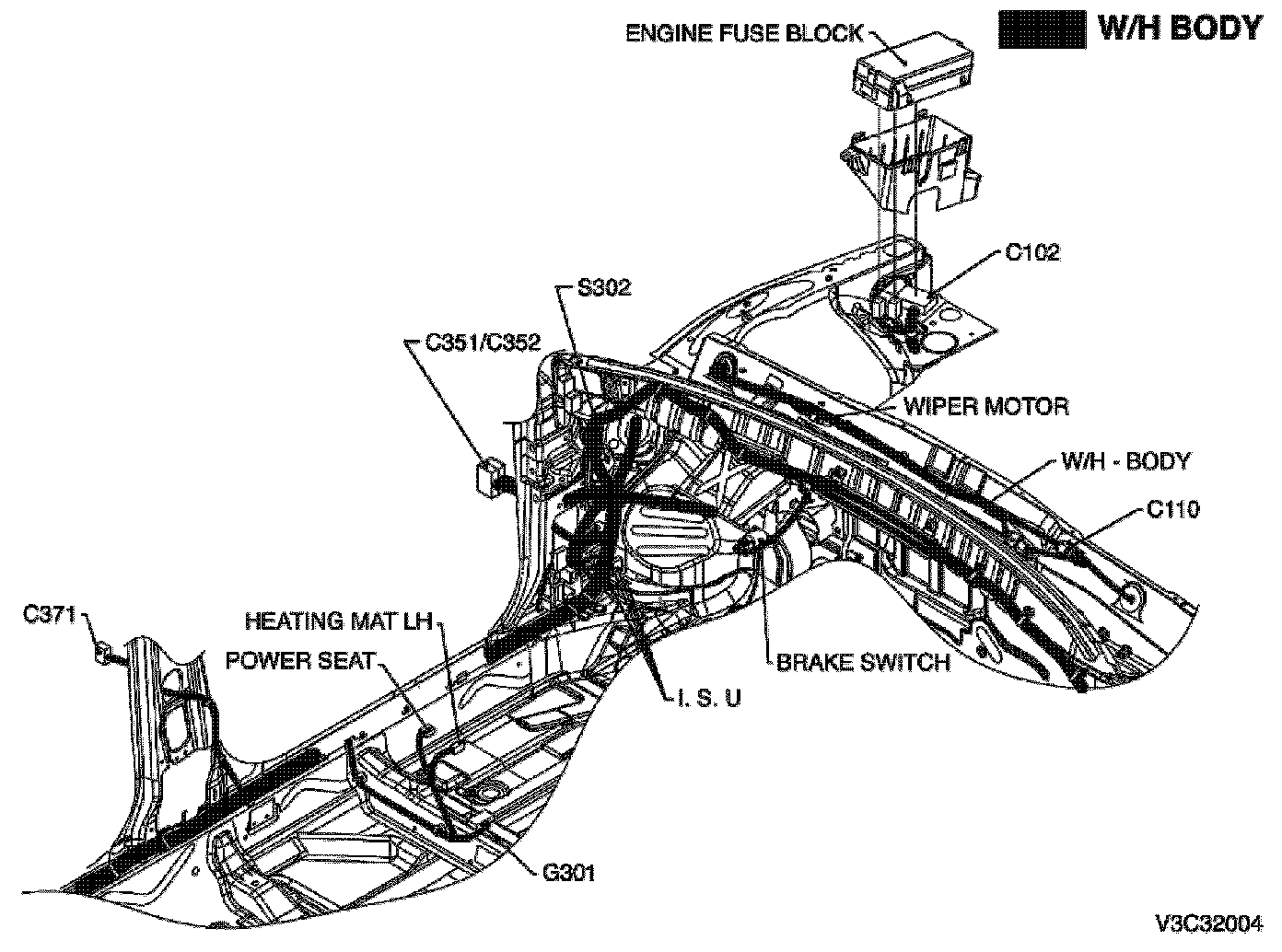

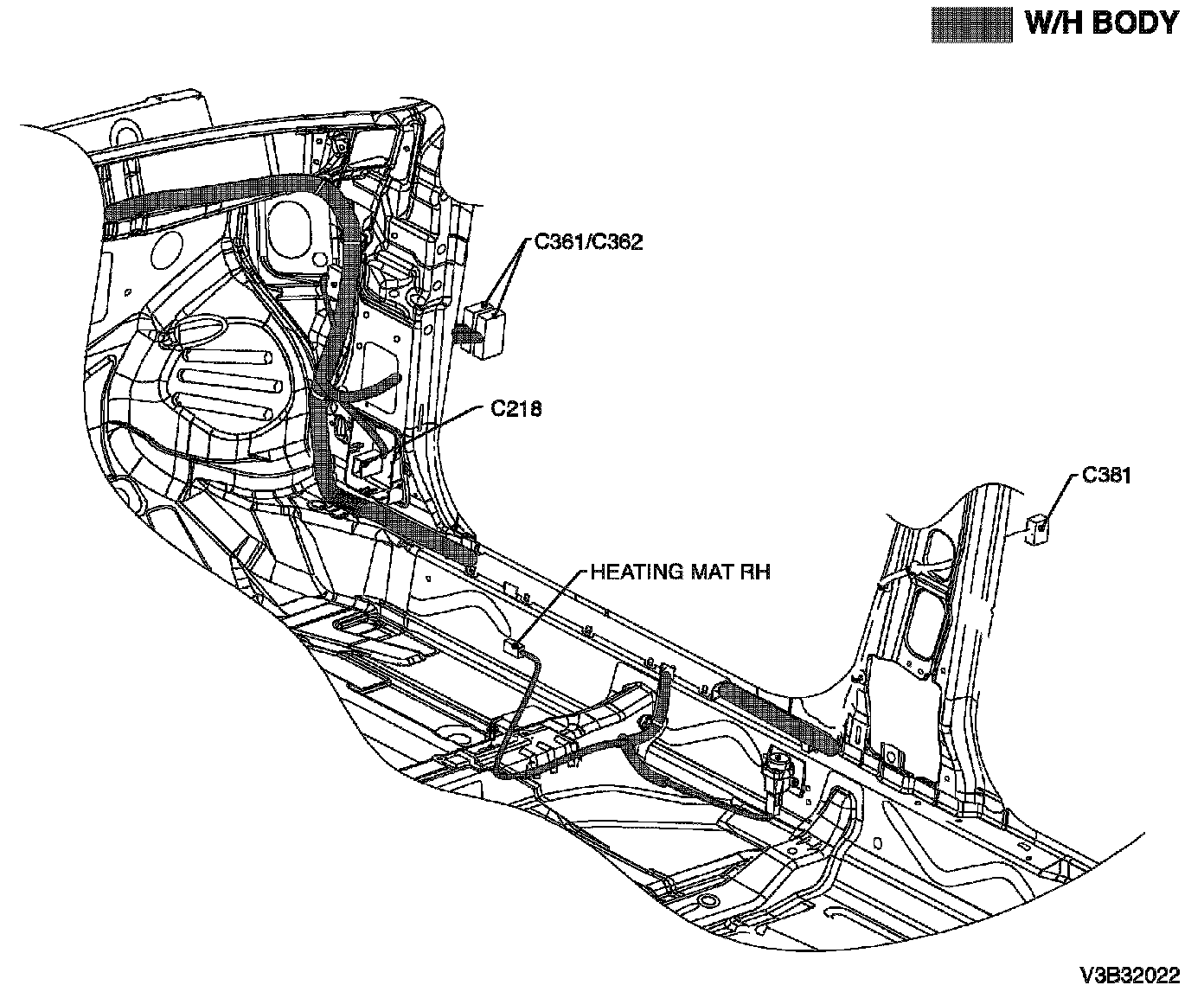

W/H Body (view 1):

W/H Body (view 2):

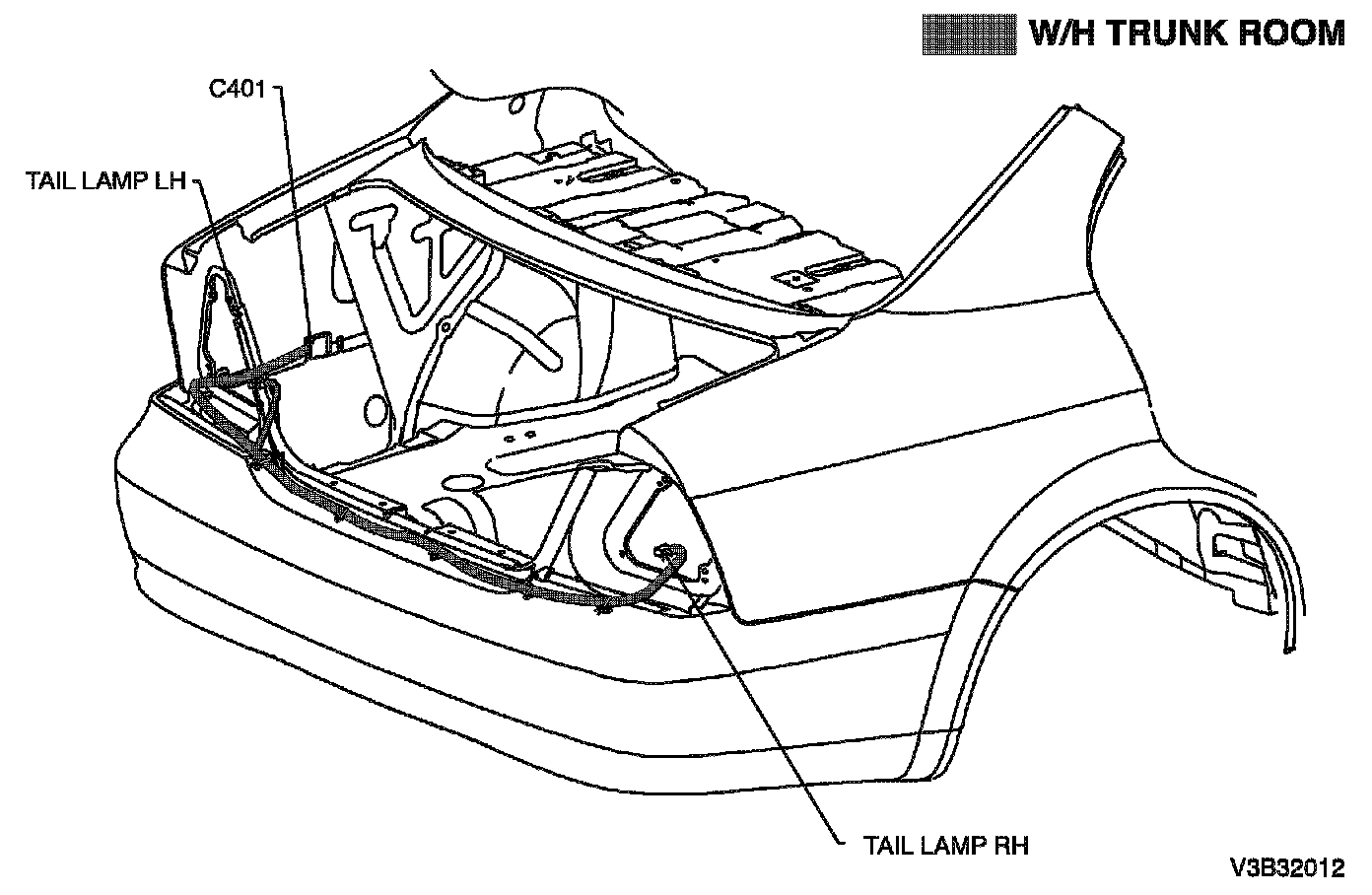

W/H Trunk Room:

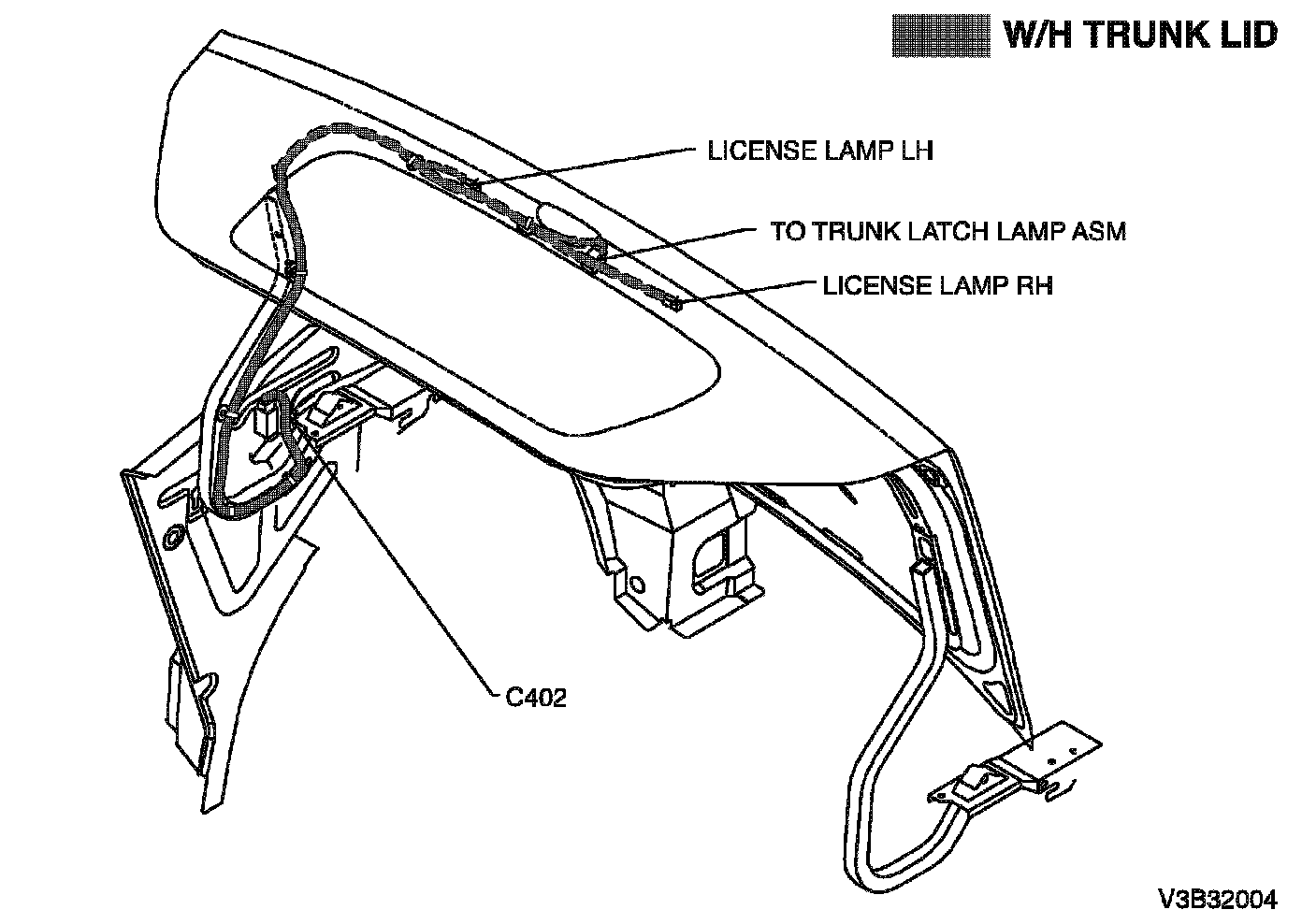

W/H Trunk Lid:

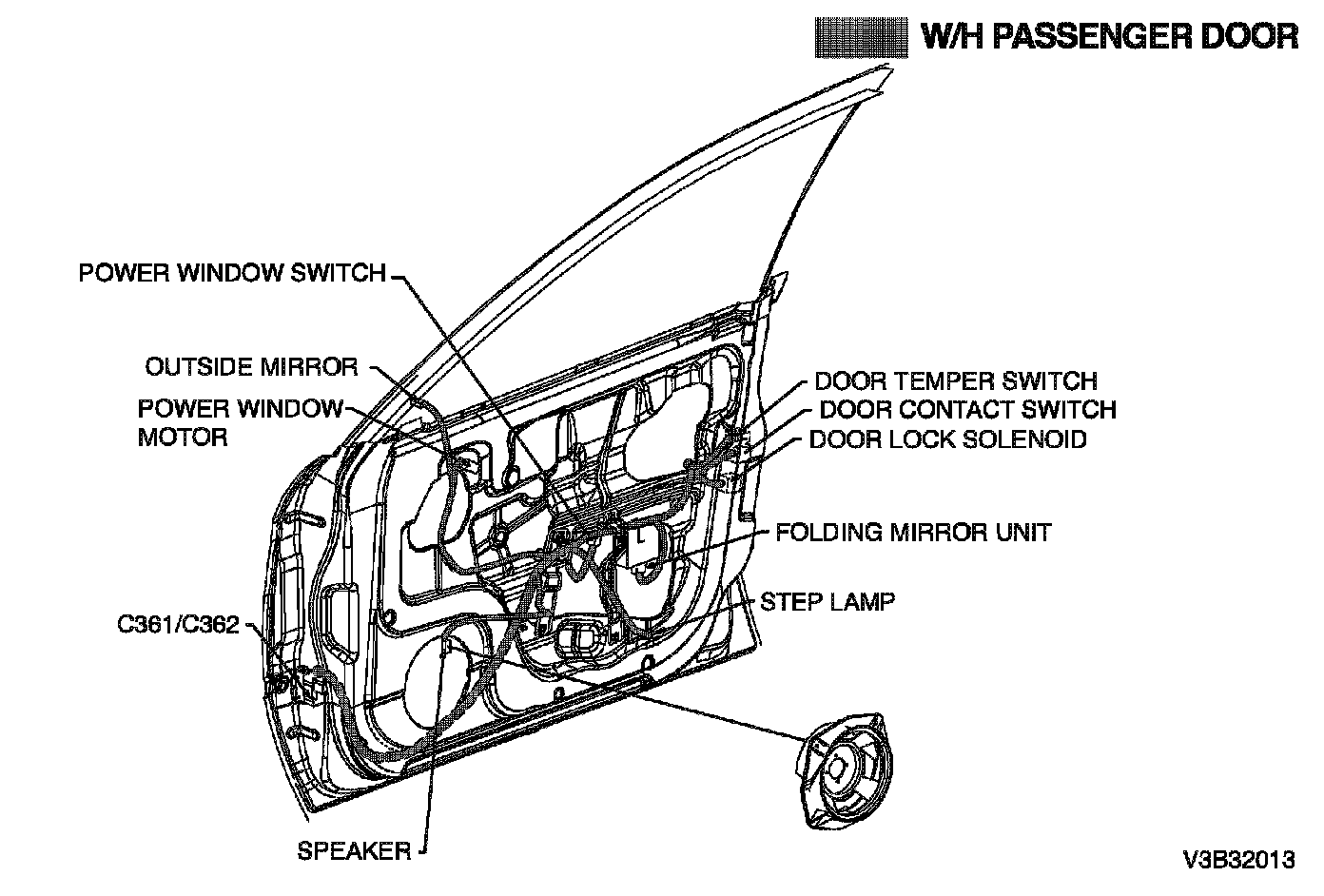

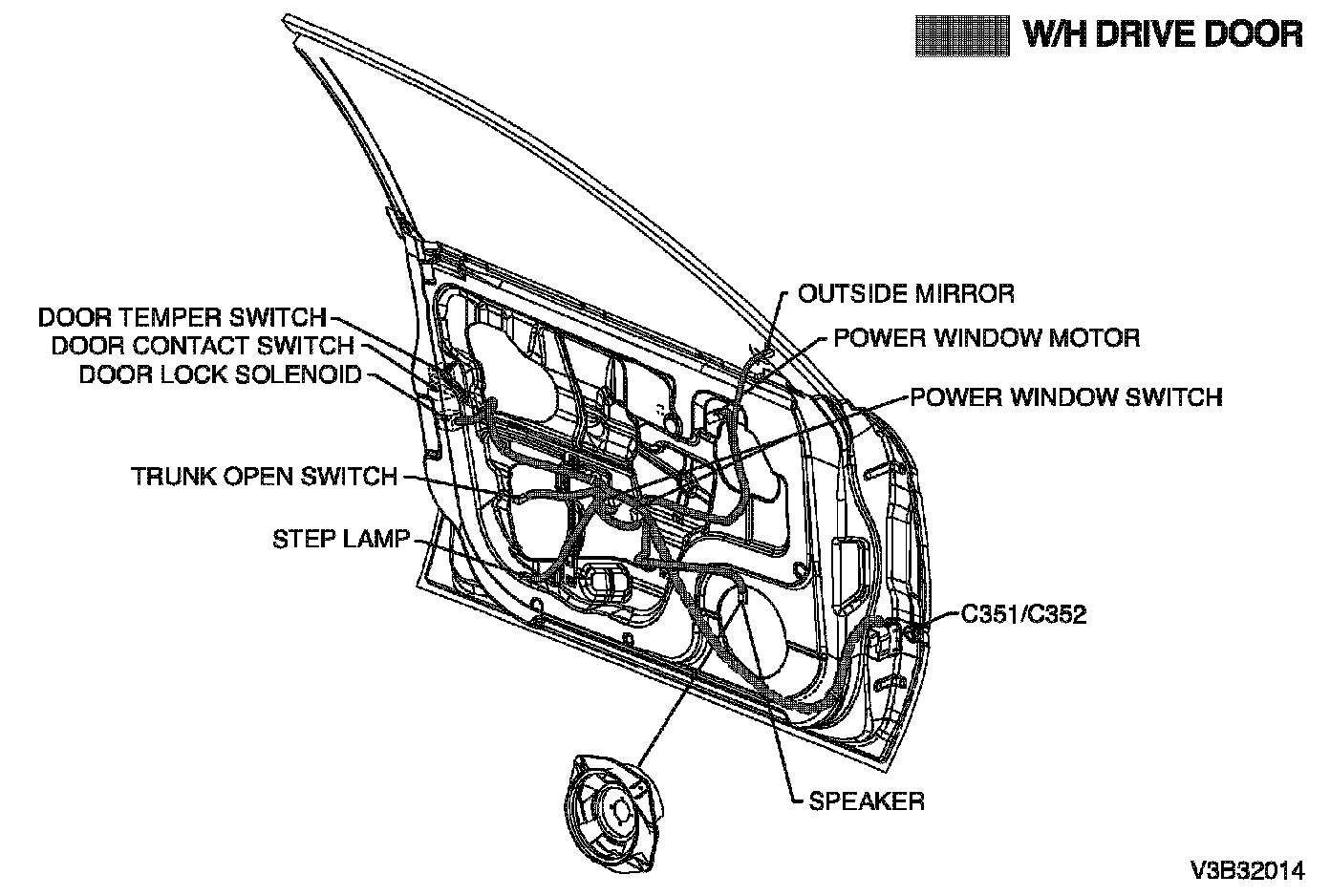

W/H Front Door (view 1):

W/H Front Door (view 2):

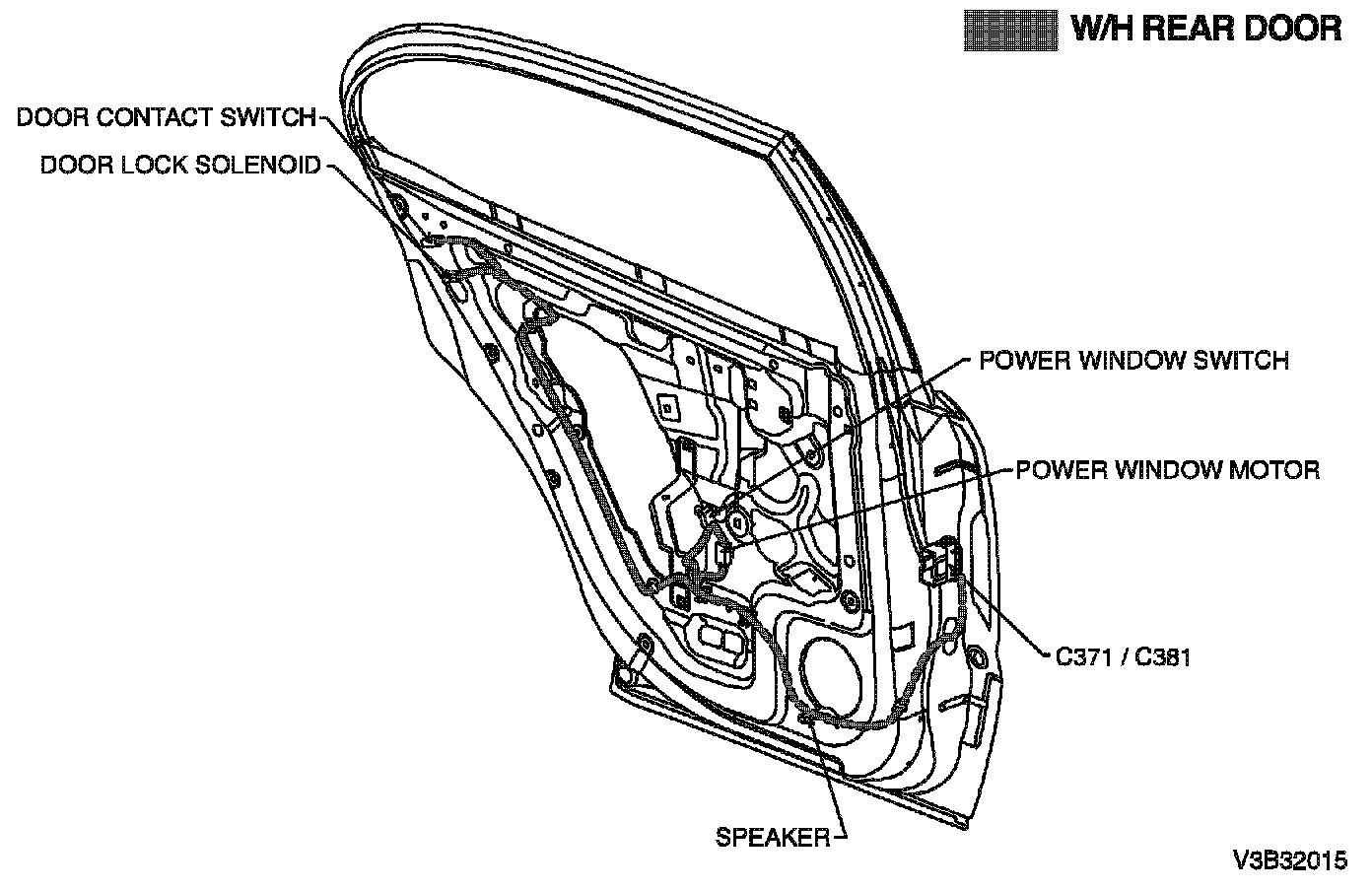

W/H Rear Door:

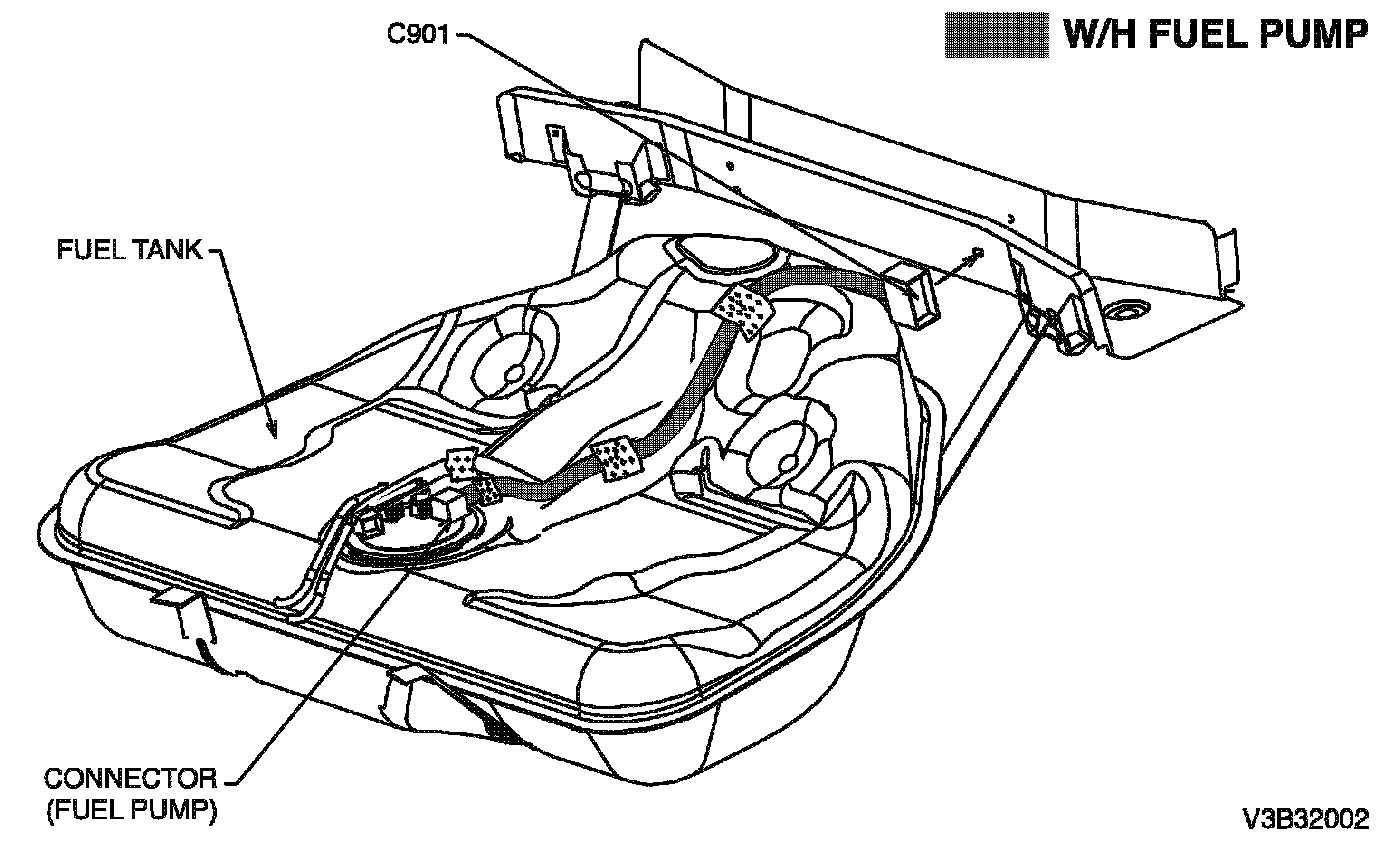

W/H Fuel Pump:

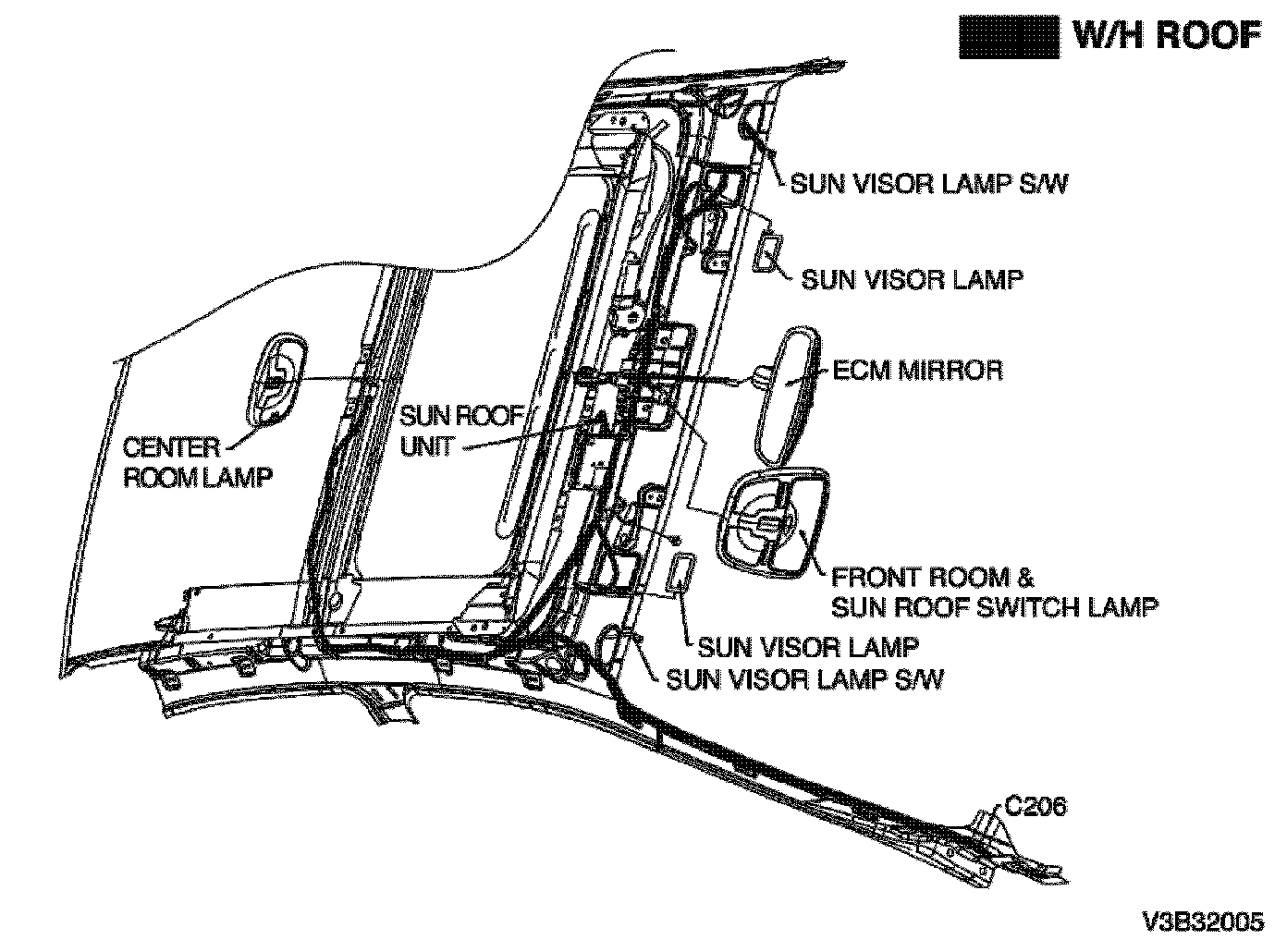

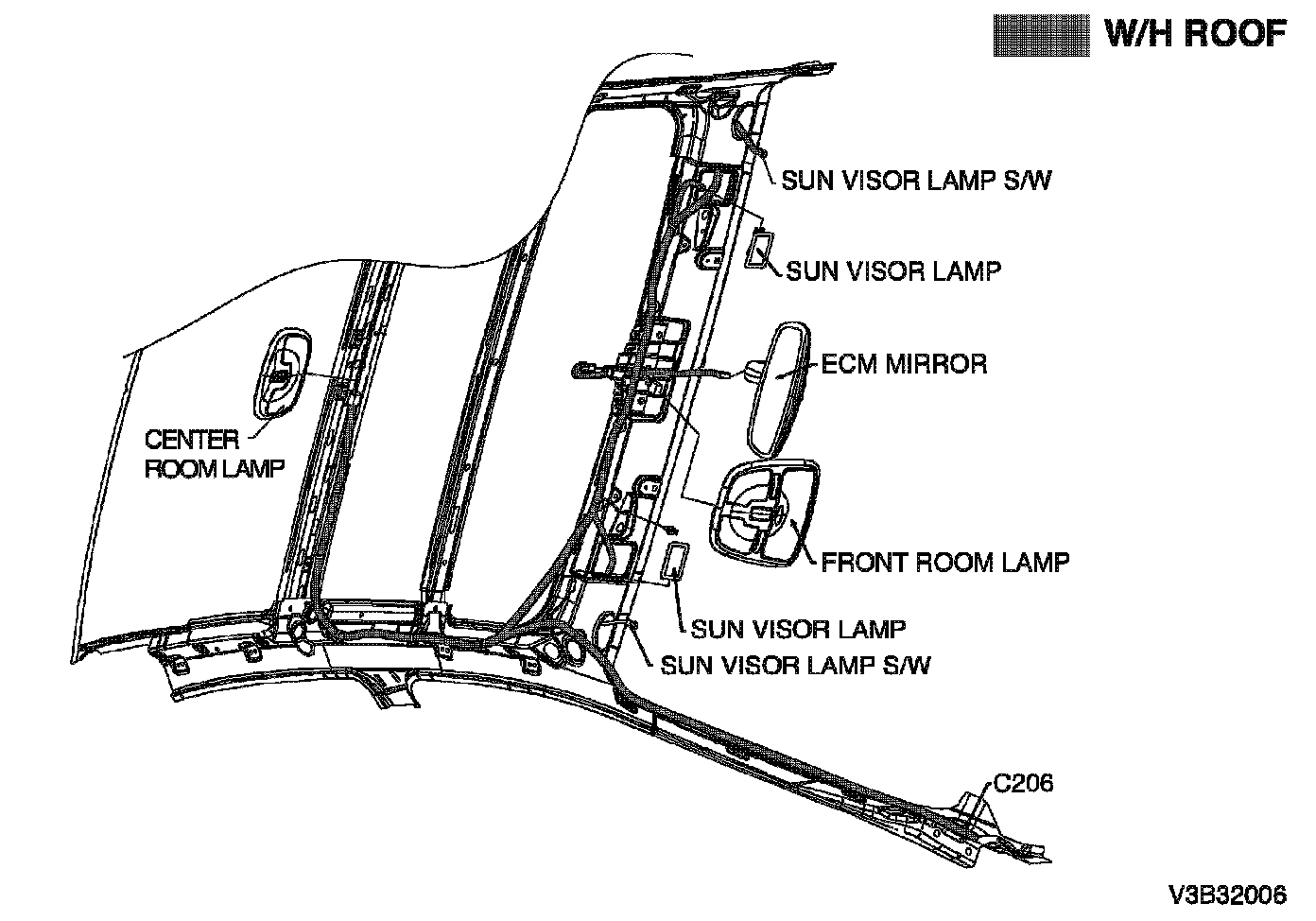

W/H Roof (view 1):

W/H Roof (view 2):

W/H ABS:
