Key Remind Switch, Seat Belt Switch, Trunk Latch Assembly and Hood Contact Switch Circuit

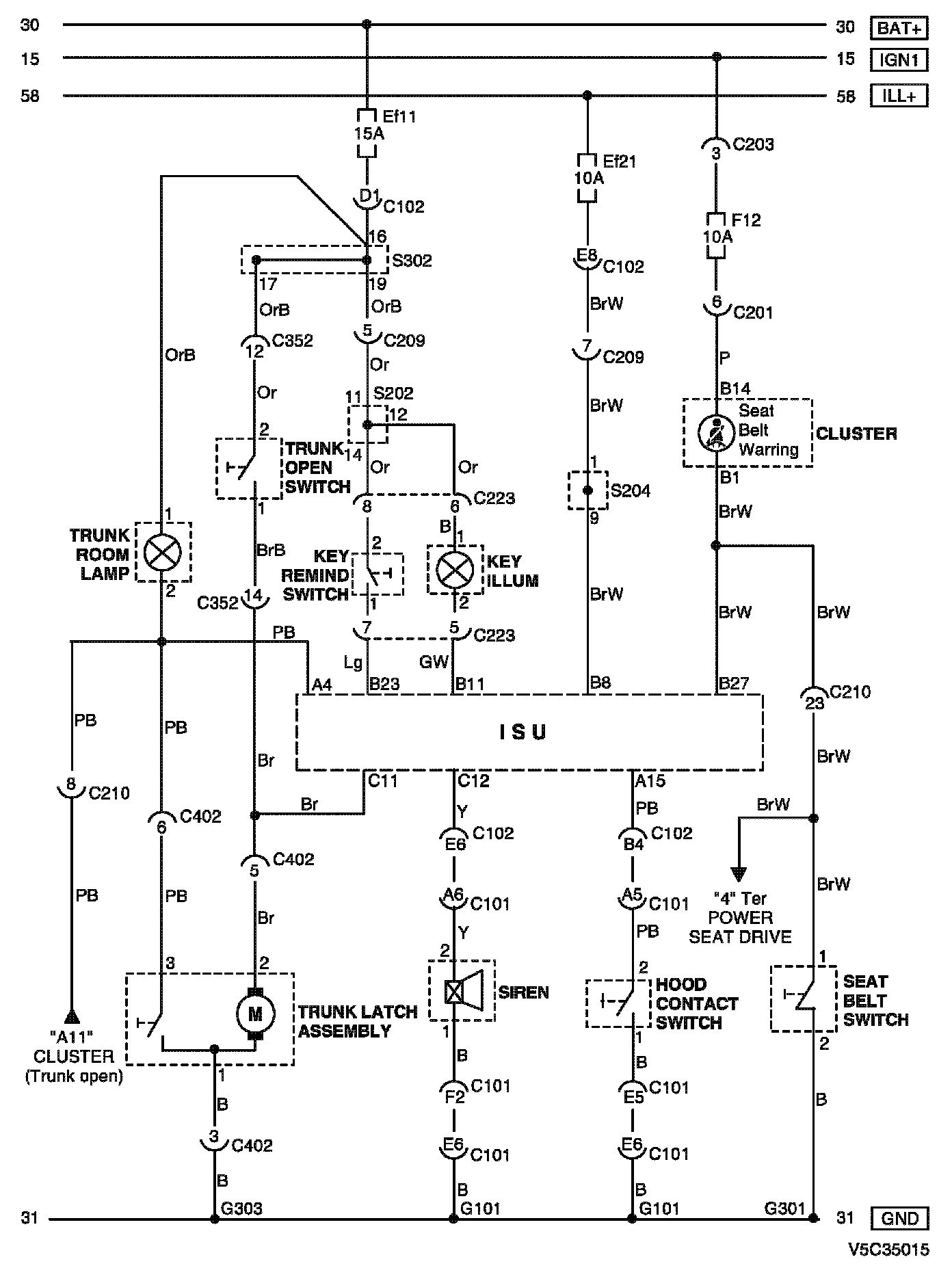

Key Remind Switch, Seat Belt Switch, Trunk Latch Assembly and Hood Contact Switch Circuit Diagram:
WIRING DIAGRAM
C101 - G303:
CONNECTOR INFORMATION

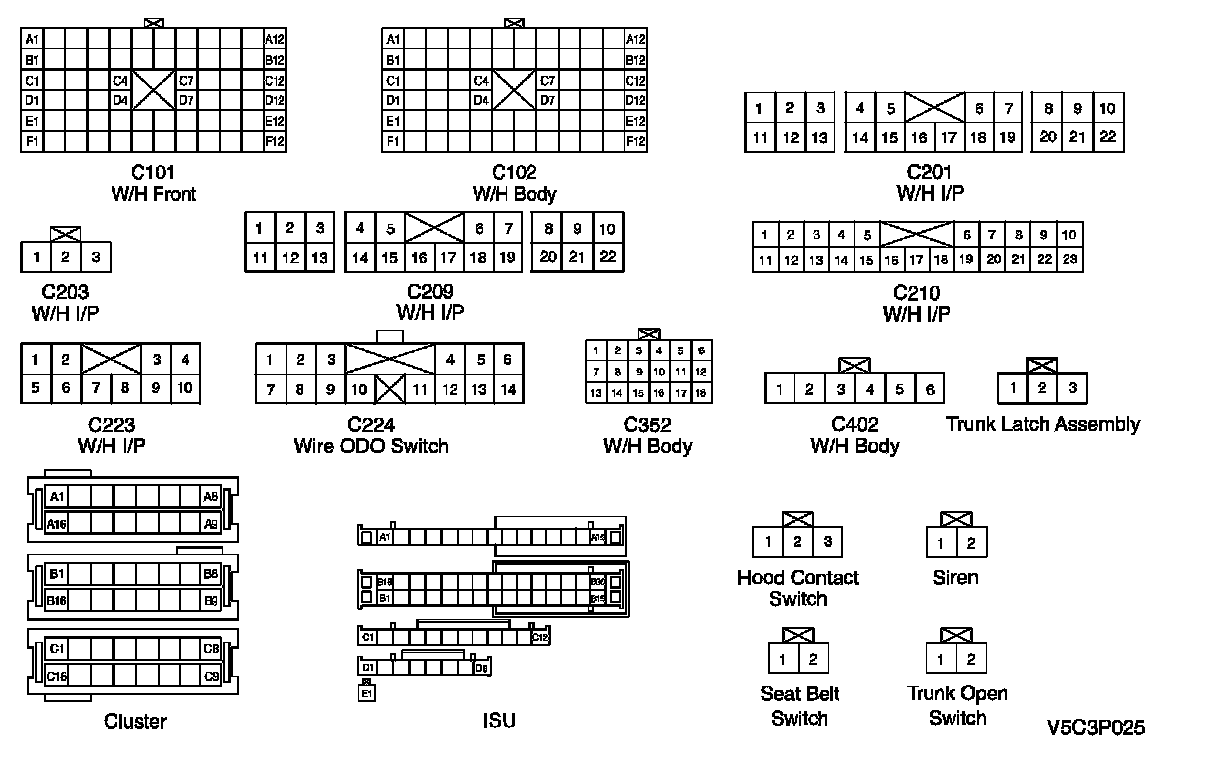

Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

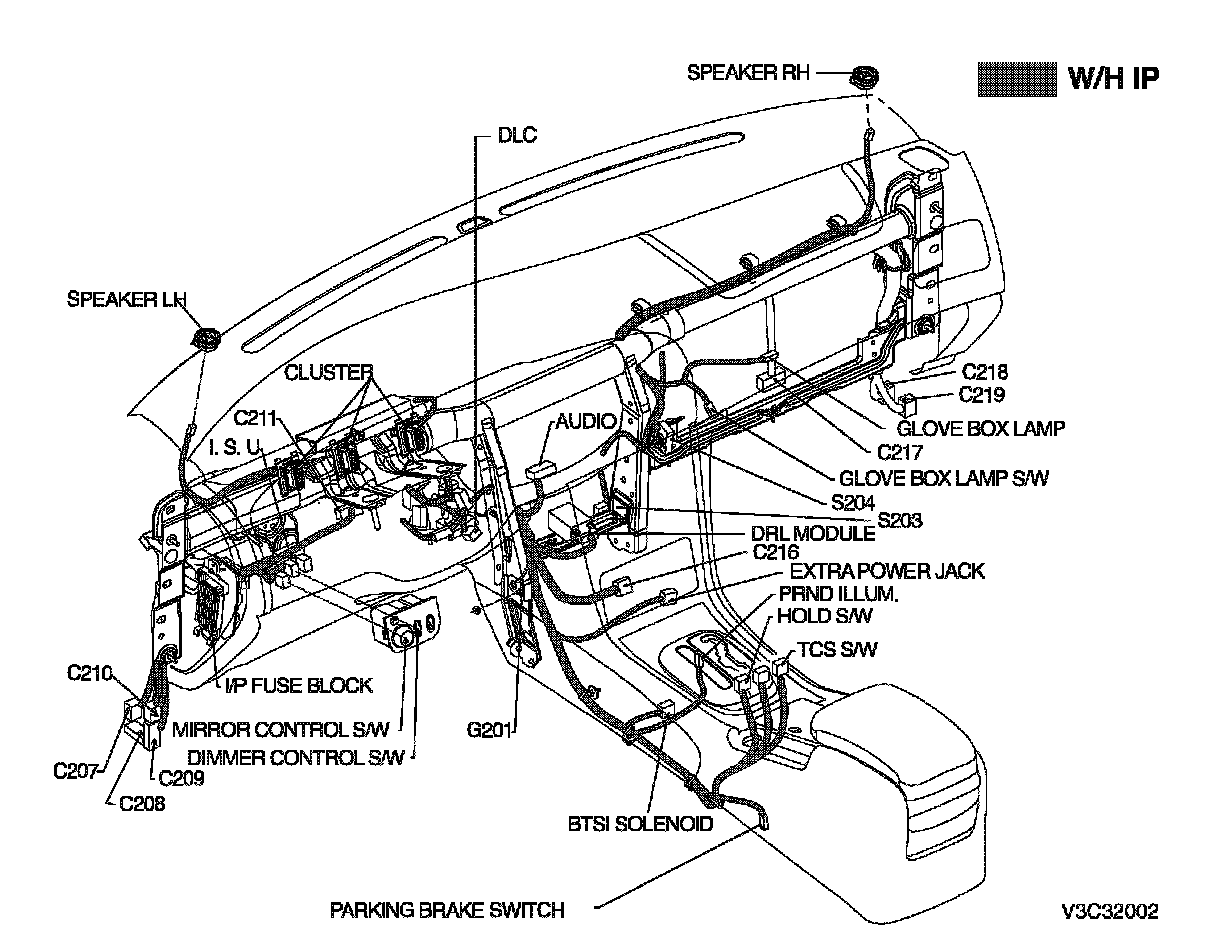

W/h Instrument Panel:
POSITION OF CONNECTORS AND GROUNDS

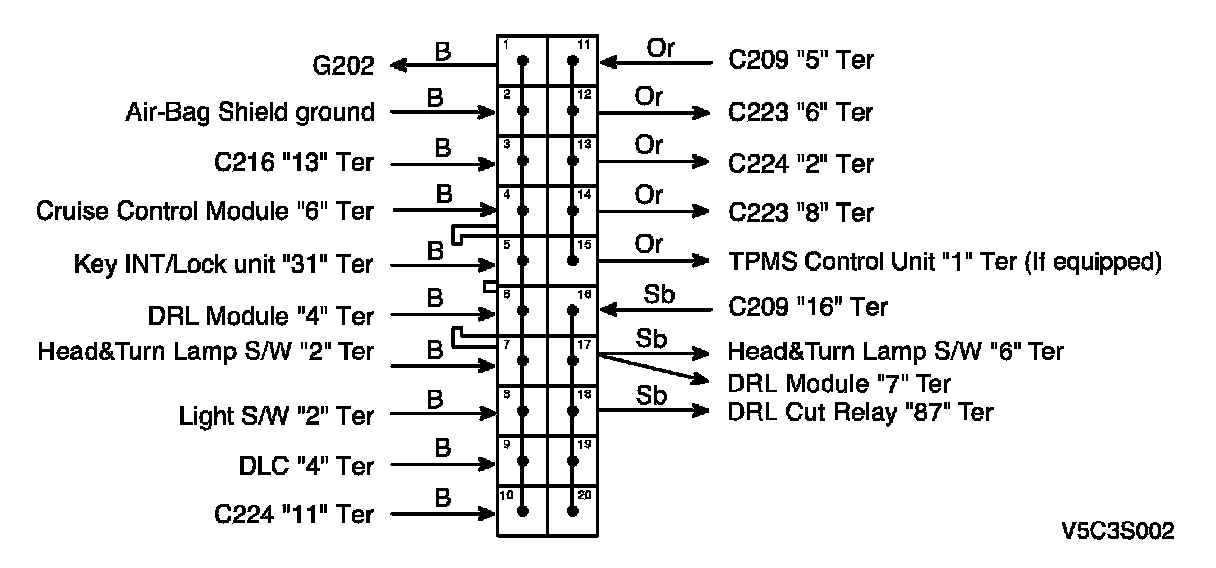

S202 (ORANGE):

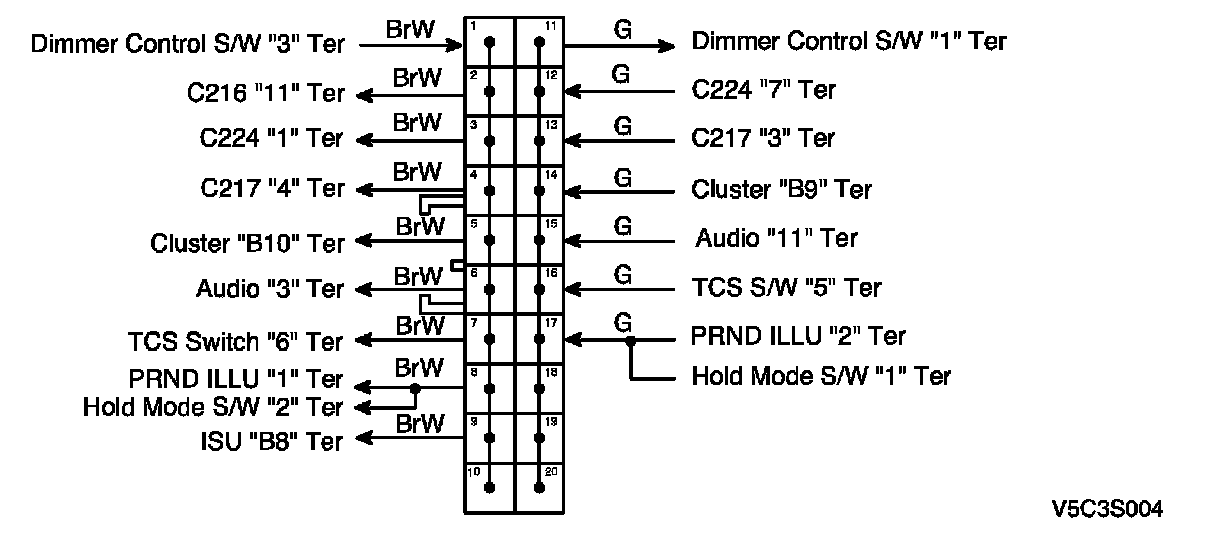

S204 (RED):
S302 (COLORLESS):
SPLICE PACK
