Head Lamp With DRL

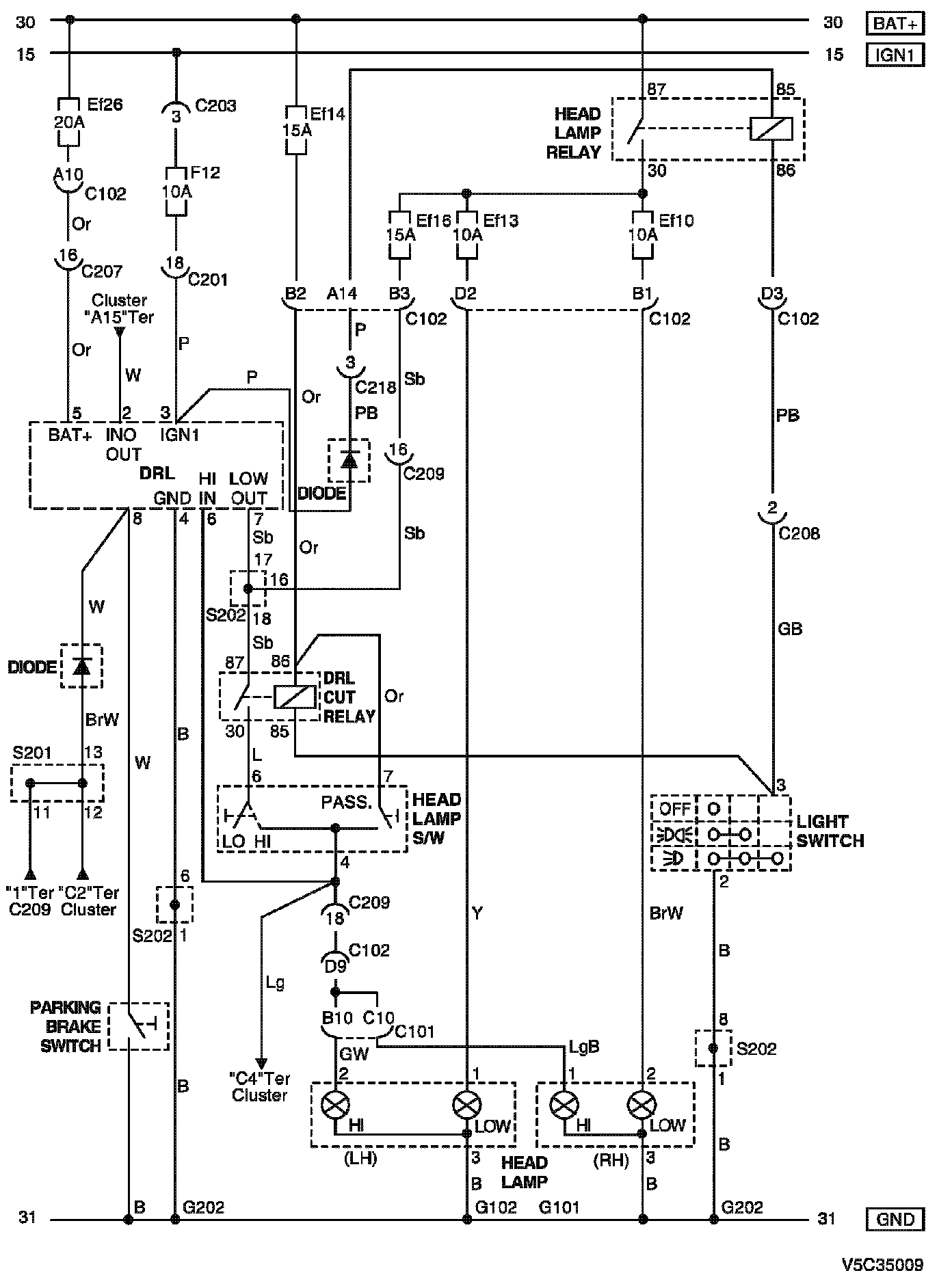

Head Lamp With DRL Circuit Diagram:
WIRING DIAGRAM
C101 - G202:

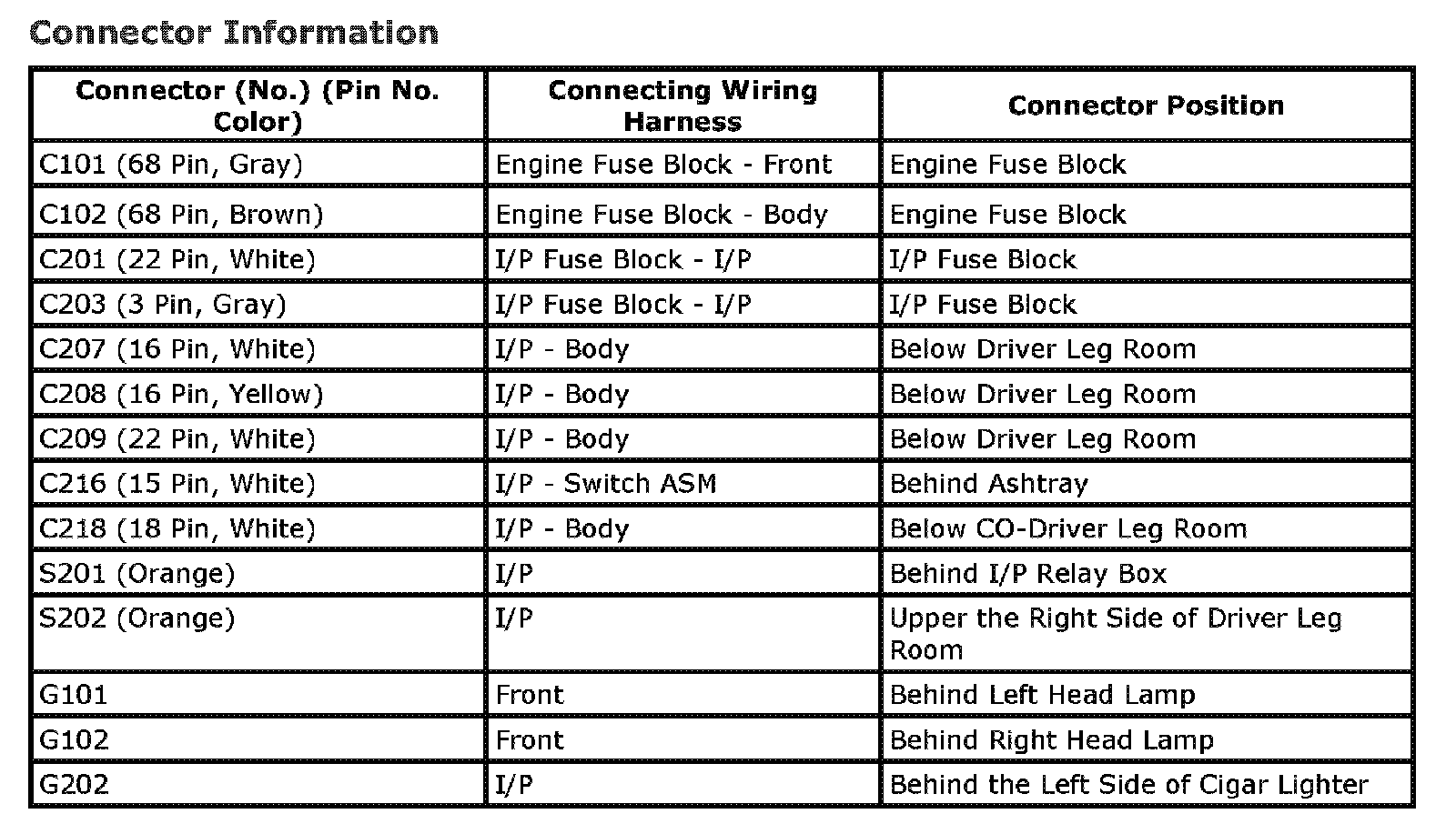

CONNECTOR INFORMATION
Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H FRONT:

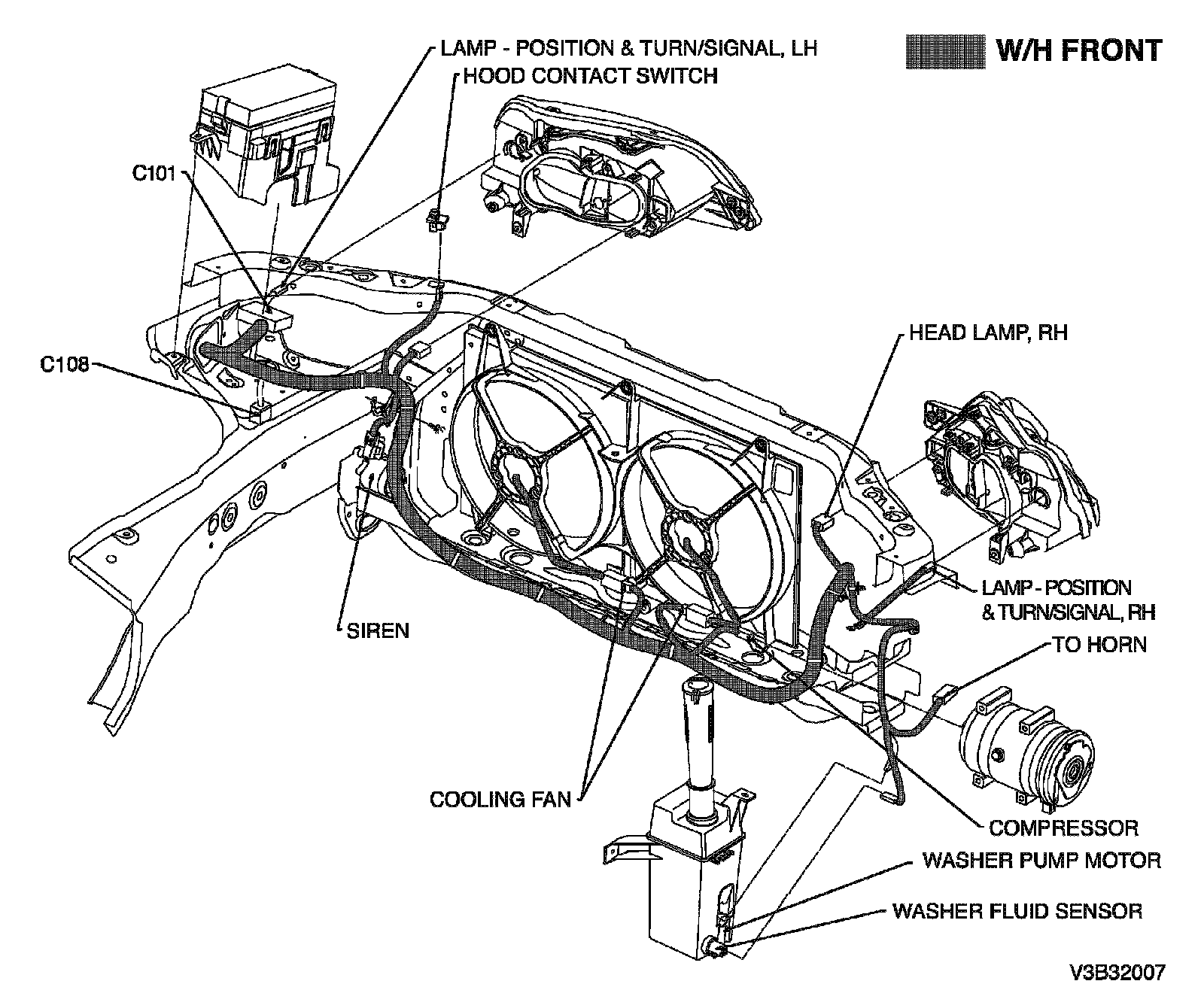

POSITION OF CONNECTORS AND GROUNDS
S201 (ORANGE):
S202 (ORANGE):

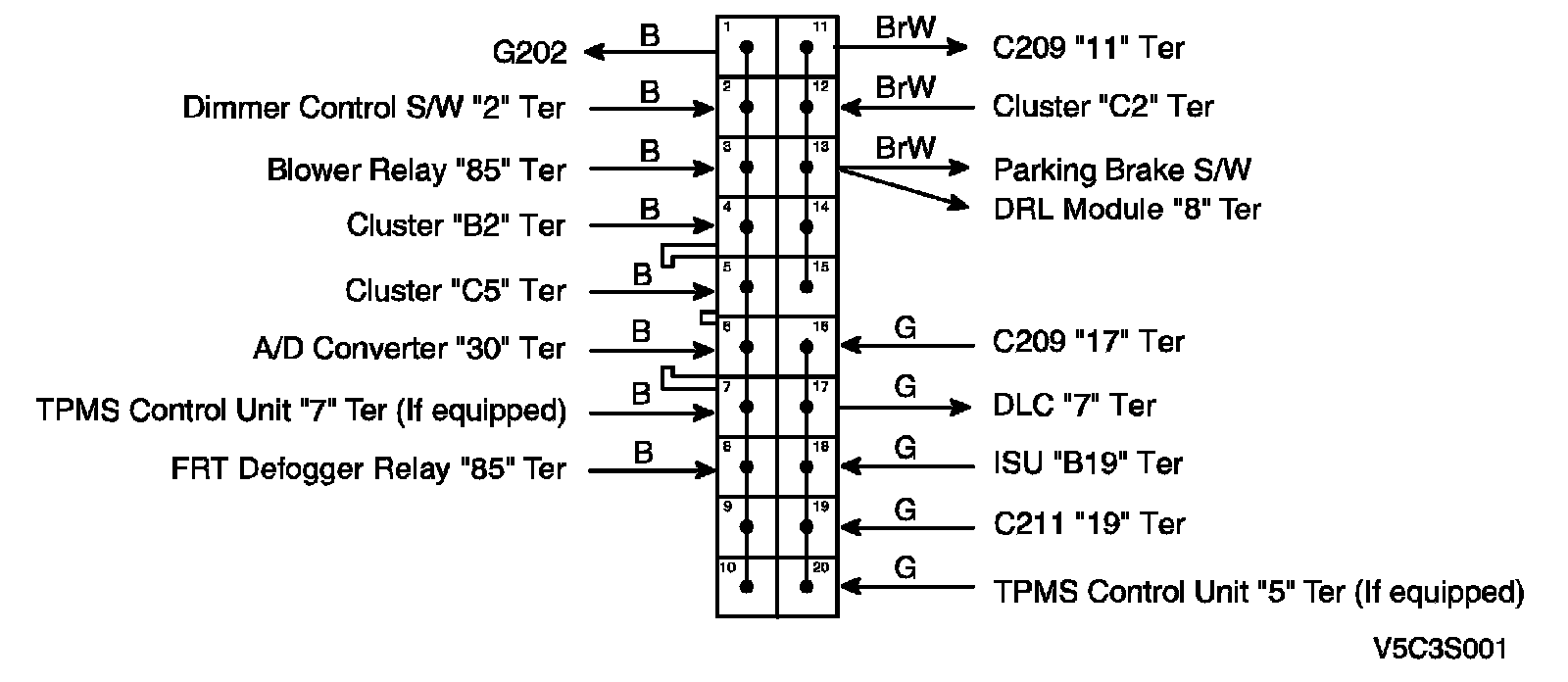

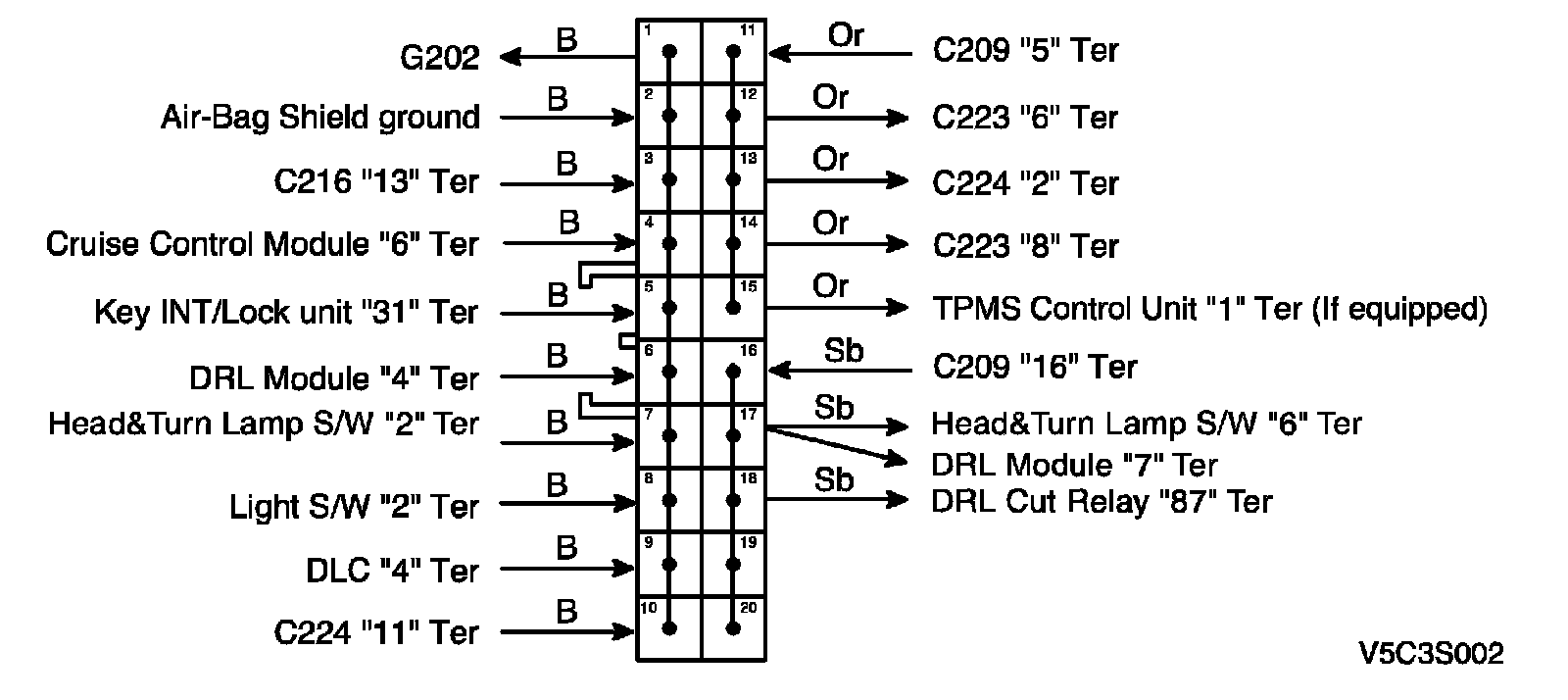

SPLICE PACK
