Warning (Door, Trunk Open and TPMS (If equipped)), Indicator (DRL, Cruise) Circuit
Warning (Door, Trunk Open and TPMS (If equipped)), Indicator (DRL, Cruise) Circuit Diagram:

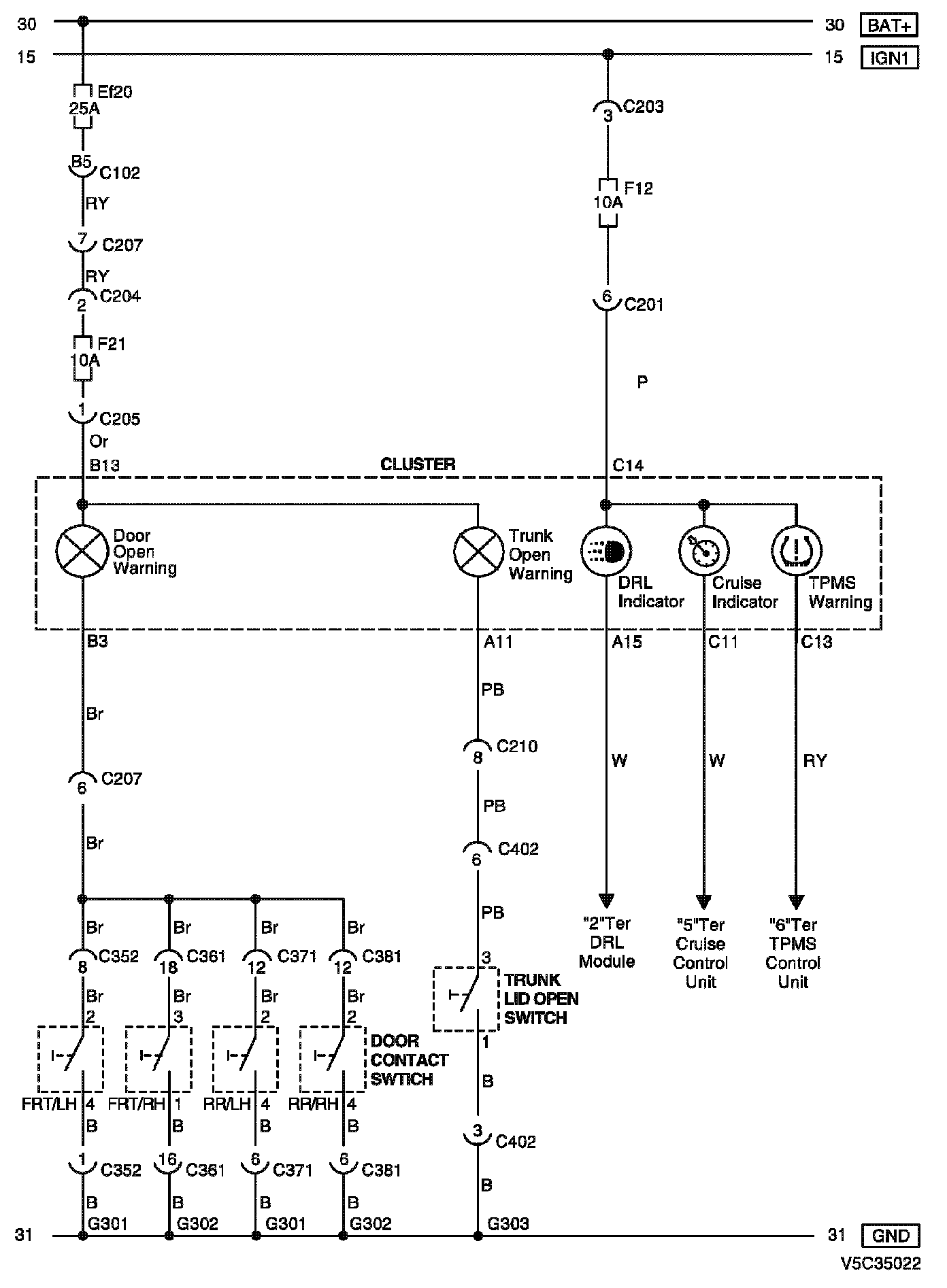

WIRING DIAGRAM
C102 - G303:
CONNECTOR INFORMATION
Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

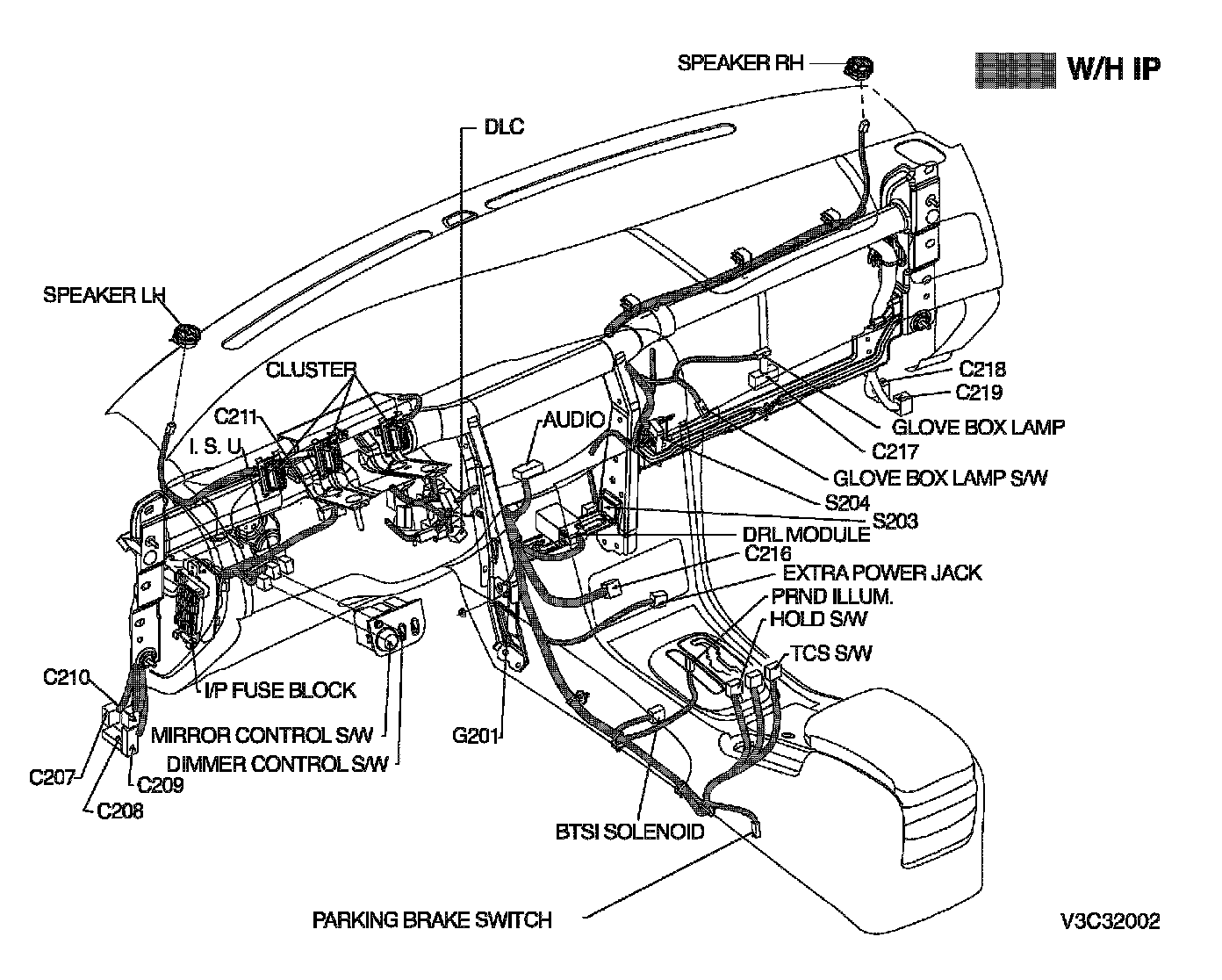

W/H INSTRUMENT PANEL:

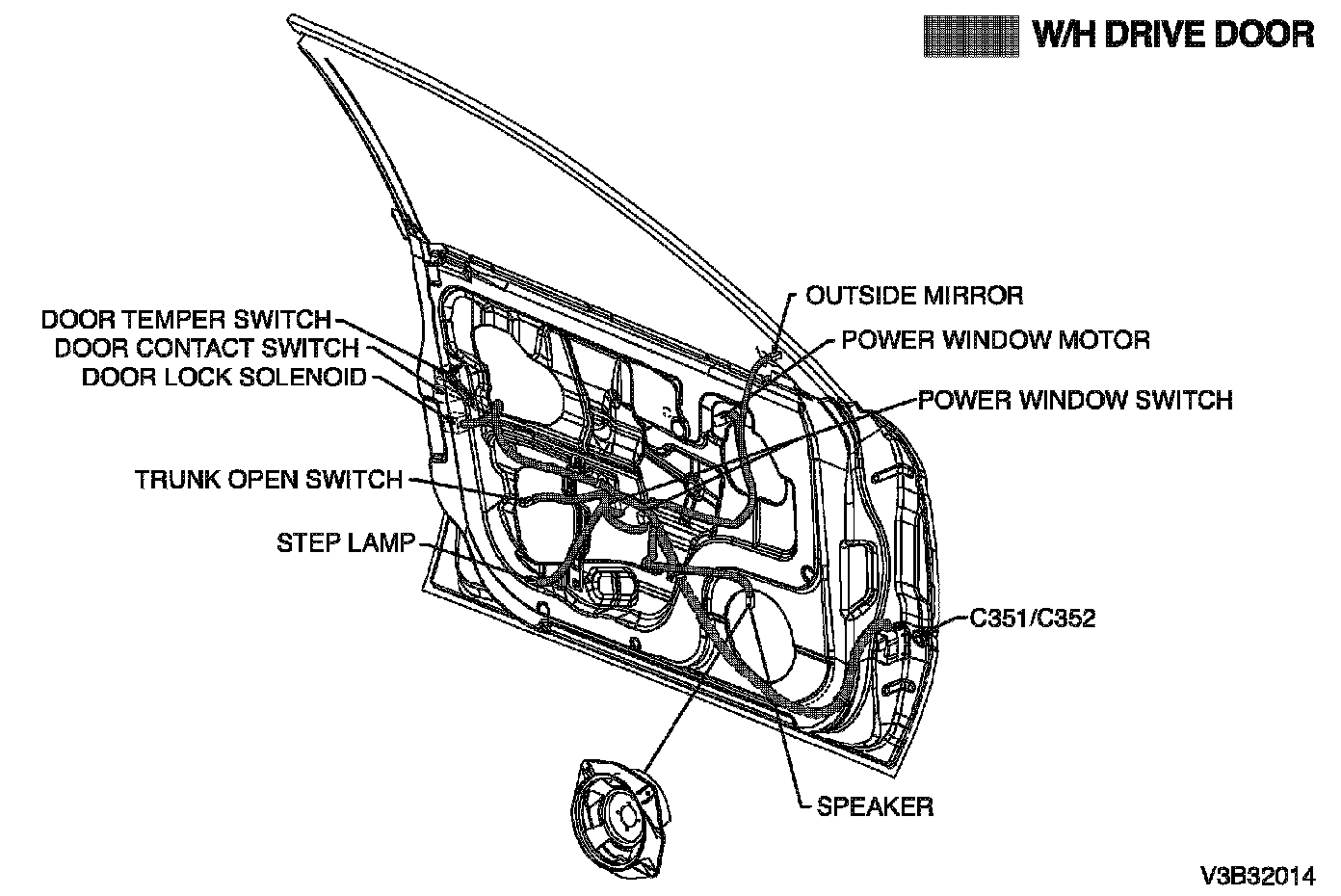

W/H DRIVER DOOR:

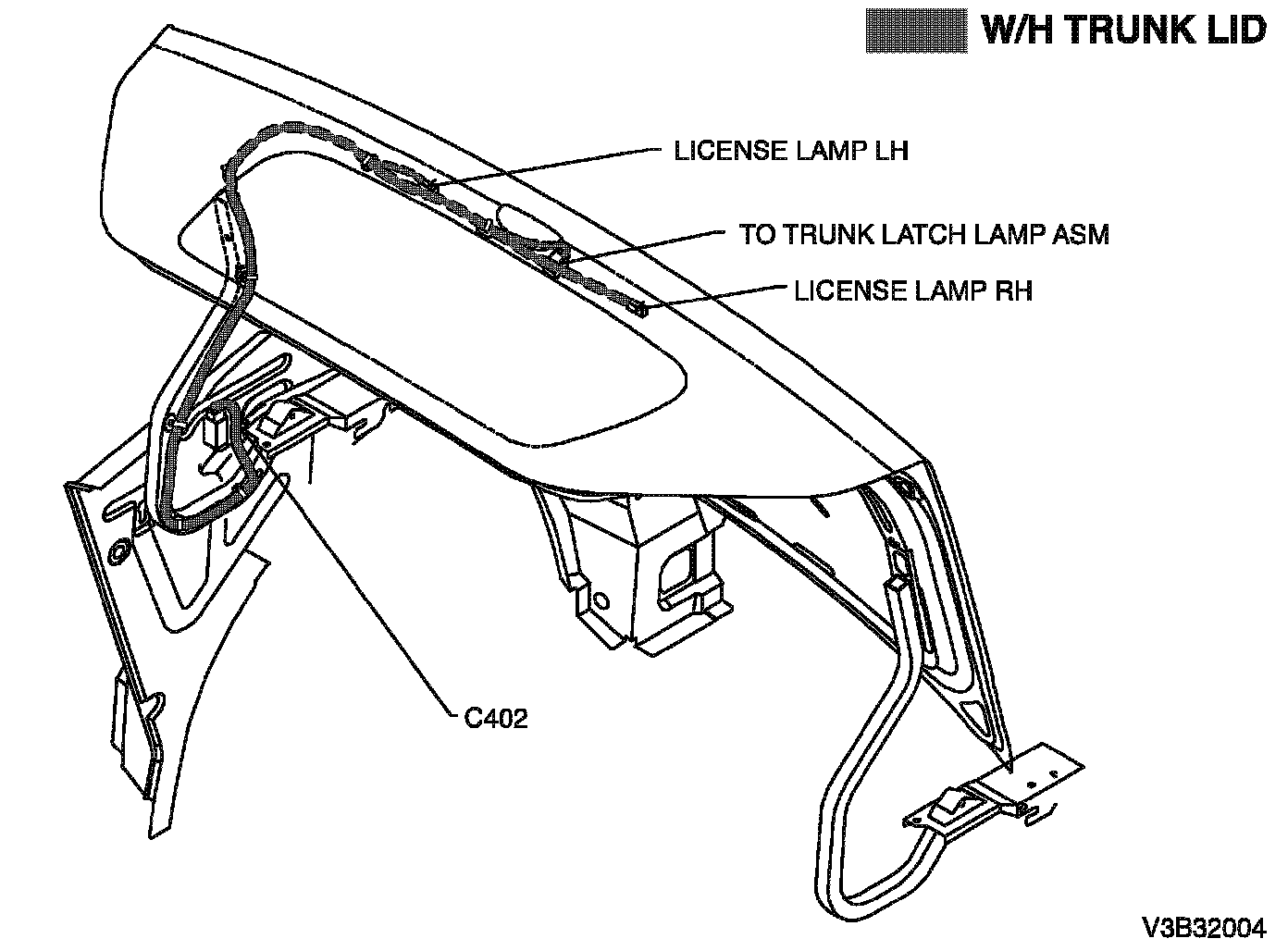

W/H TRUNK LID:
POSITION OF CONNECTORS AND GROUNDS
