Wiring Harness, Ground and Splice Pack Location

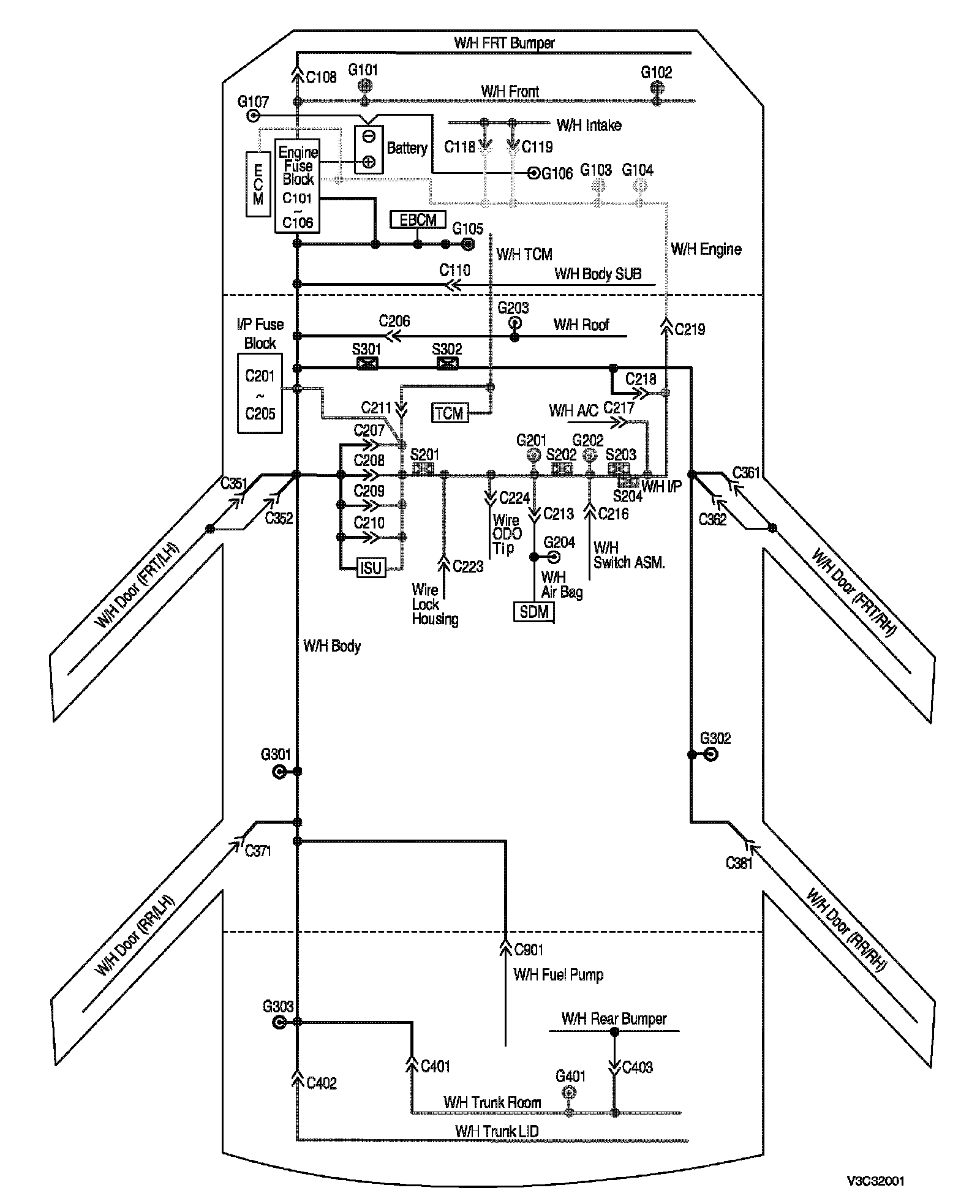

Wiring Harness, Ground and Splice Pack Location Diagram:




WIRING DIAGRAM

C101 - C901:




CONNECTOR INFORMATION

G101 - G401:




GROUND INFORMATION

S201 - S302:




SPLICE PACK INFORMATION
