Electric OSRV Mirror, Defroster Switch, Front and Rear Defogger Circuit
Electric OSRV Mirror, Defroster Switch, Front and Rear Defogger Circuit:

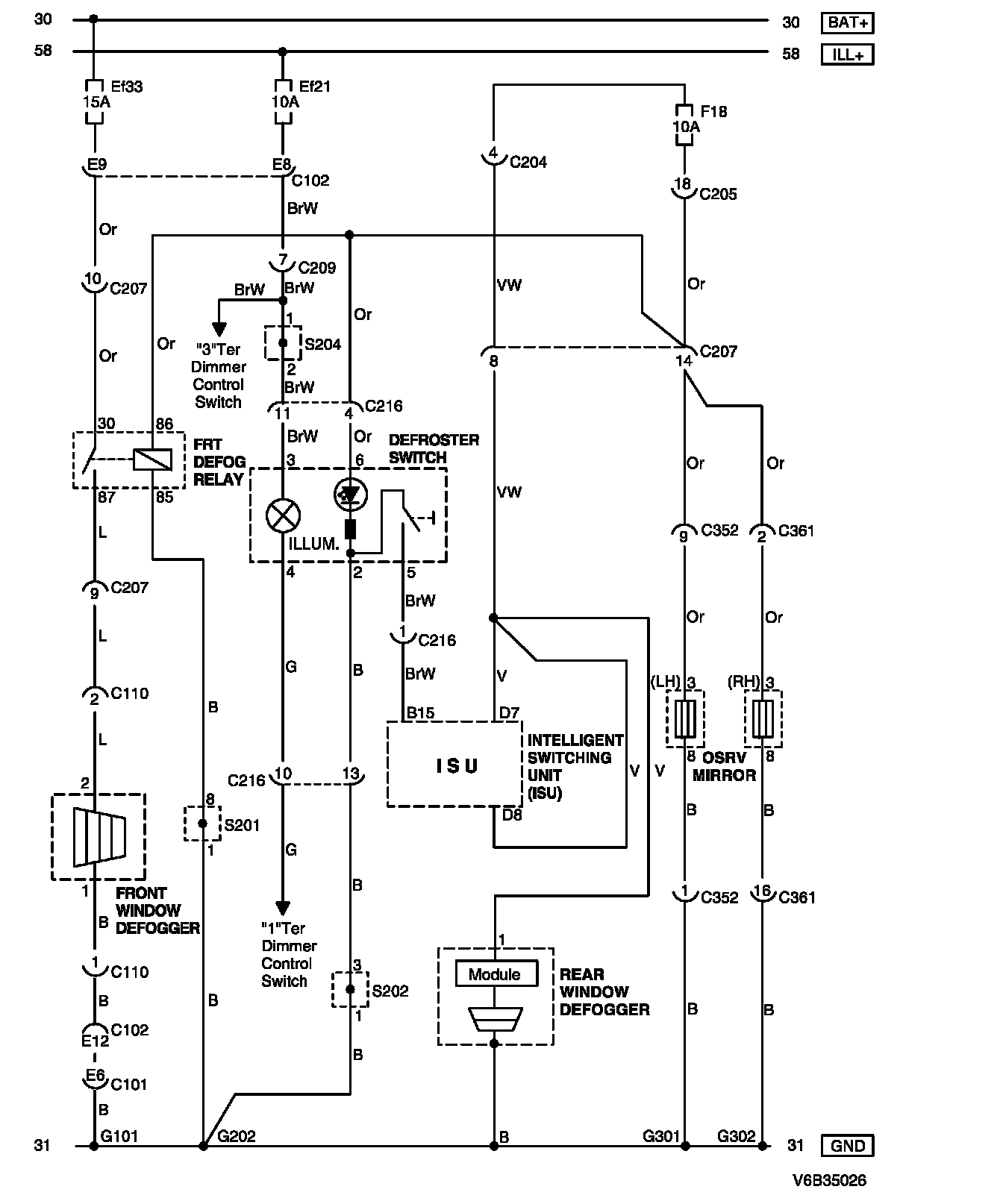

WIRING DIAGRAM
C102 - G302:

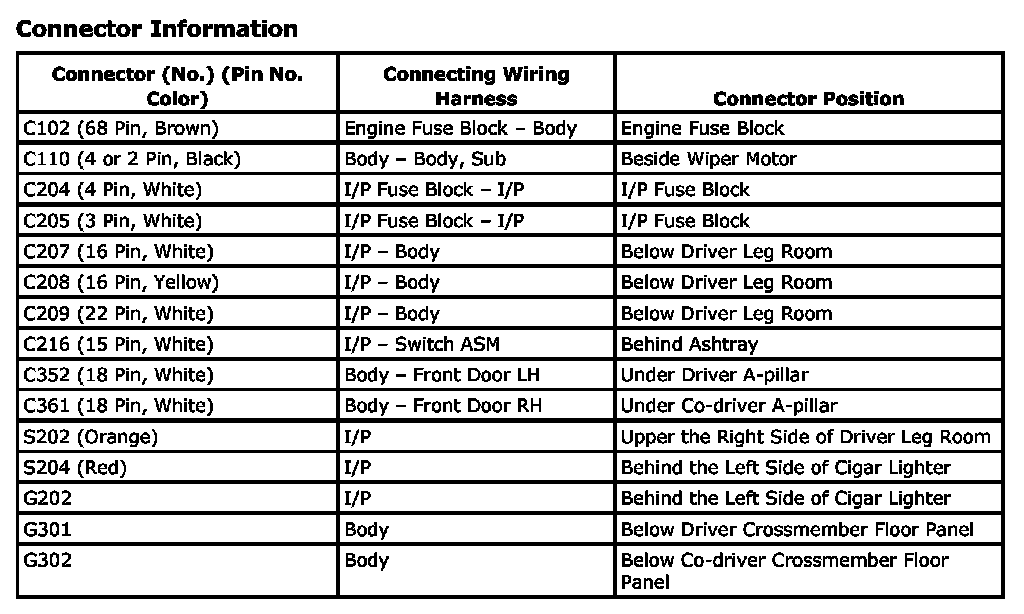

CONNECTOR INFORMATION

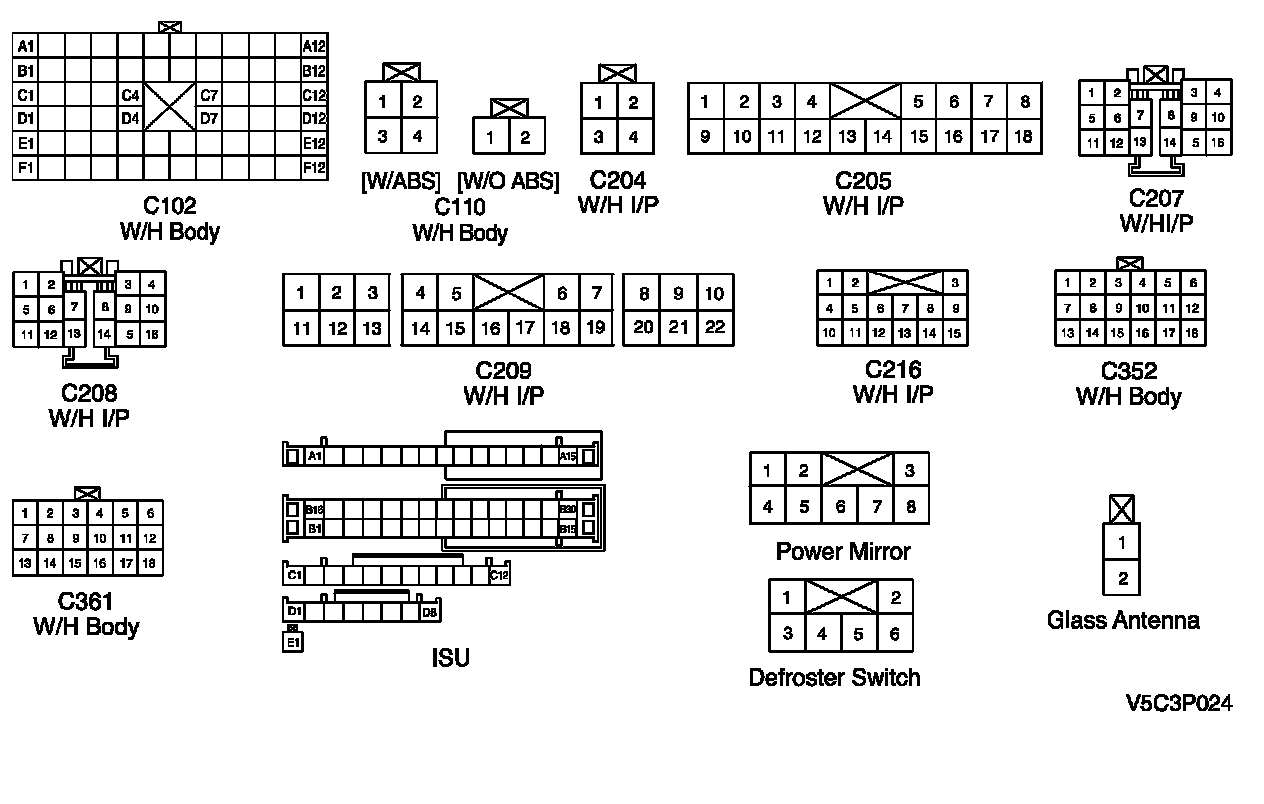

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H Instrument Panel:
POSITION OF CONNECTORS AND GROUNDS

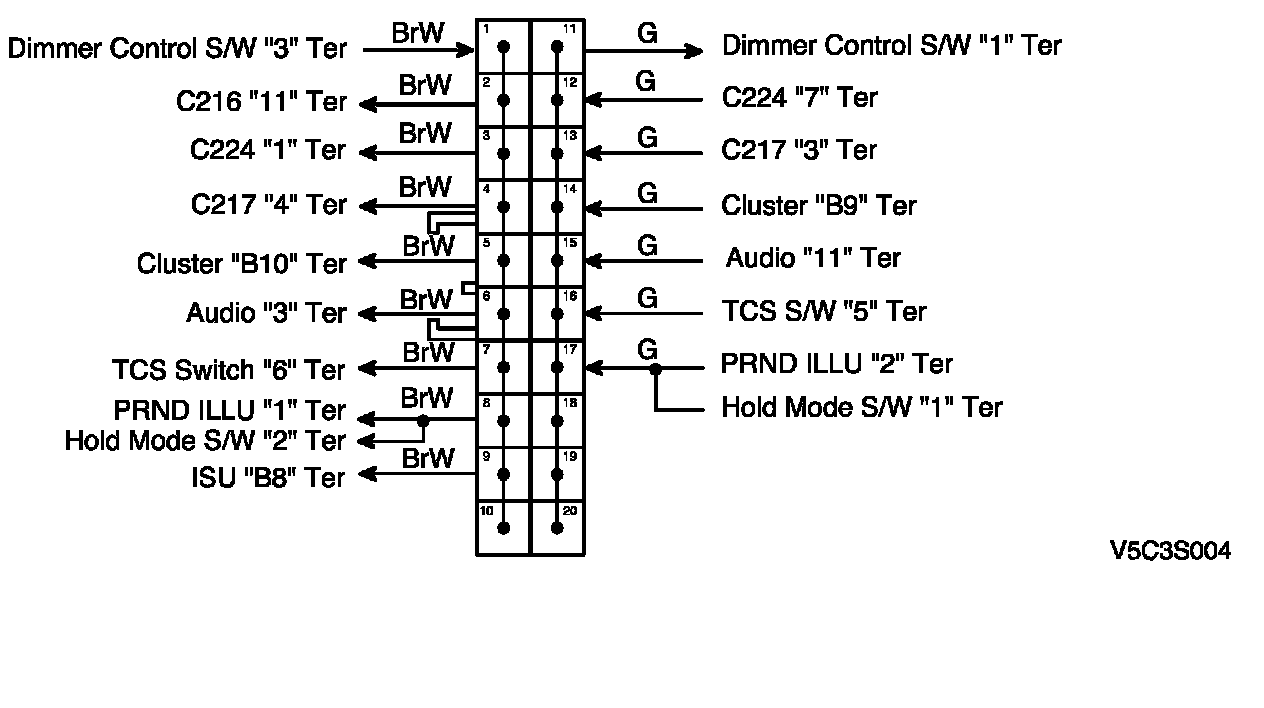

S201 (ORANGE):

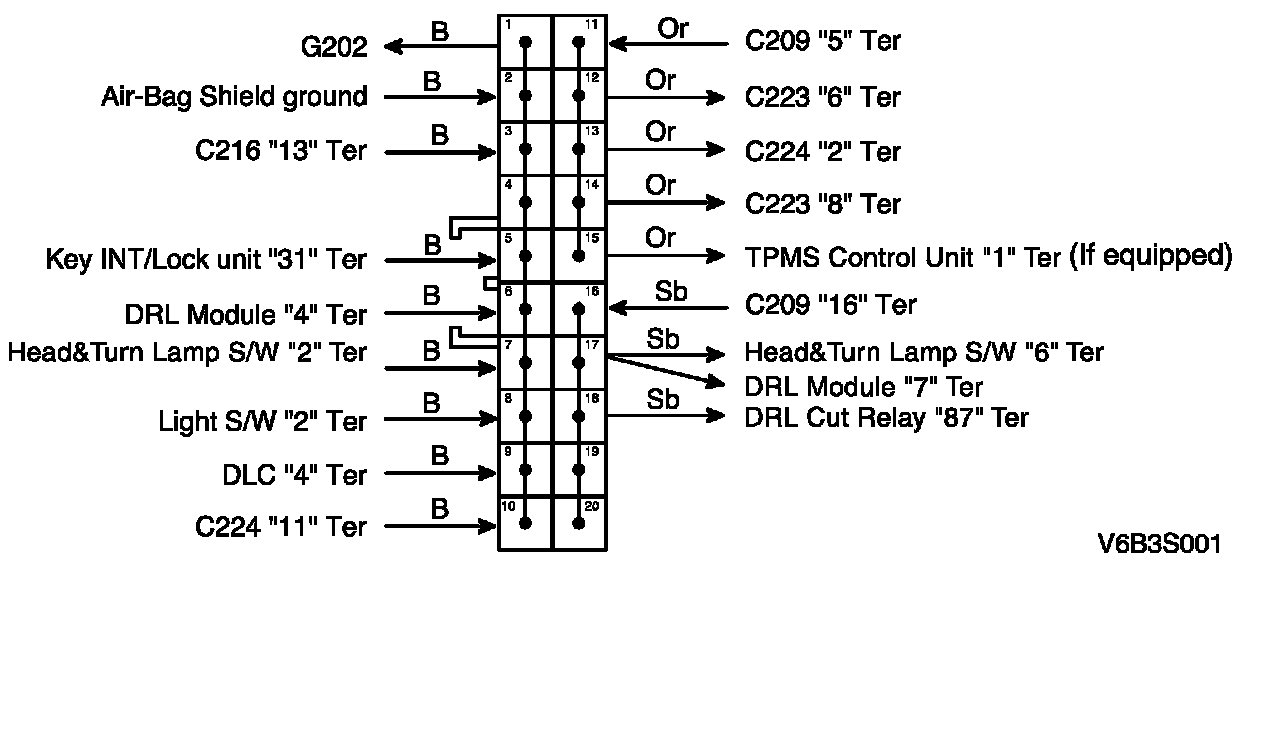

S202 (ORANGE):
S204 (RED):
SPLICE PACK
