Switch (Hazard, A/C, TCS and Hold Mode), Cluster, Clock and Audio Illumination Circuit
Switch (Hazard, A/C, TCS and Hold Mode), Cluster, Clock and Audio Illumination Circuit:
WIRING DIAGRAM
C102 - G202:

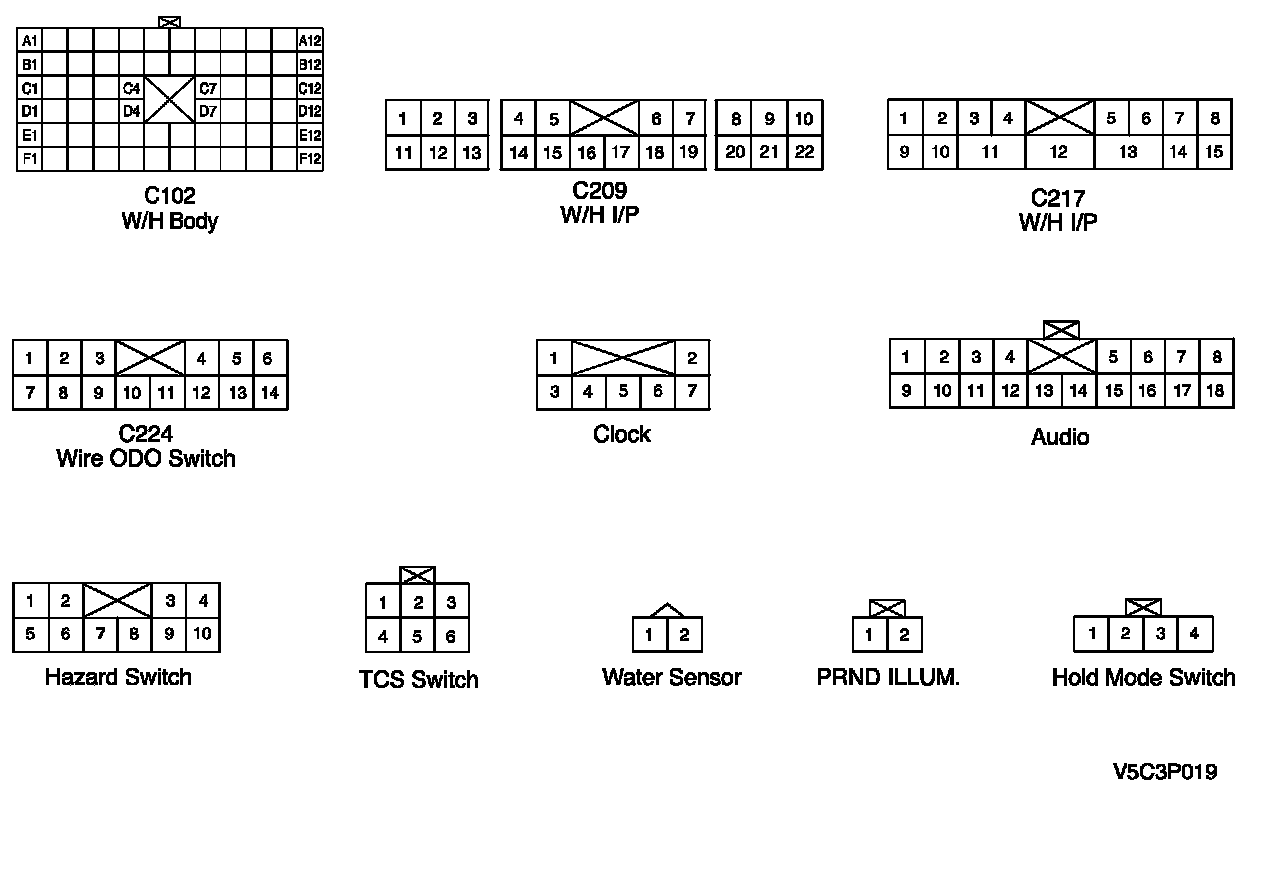

CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H Instrument Panel:
POSITION OF CONNECTORS AND GROUNDS

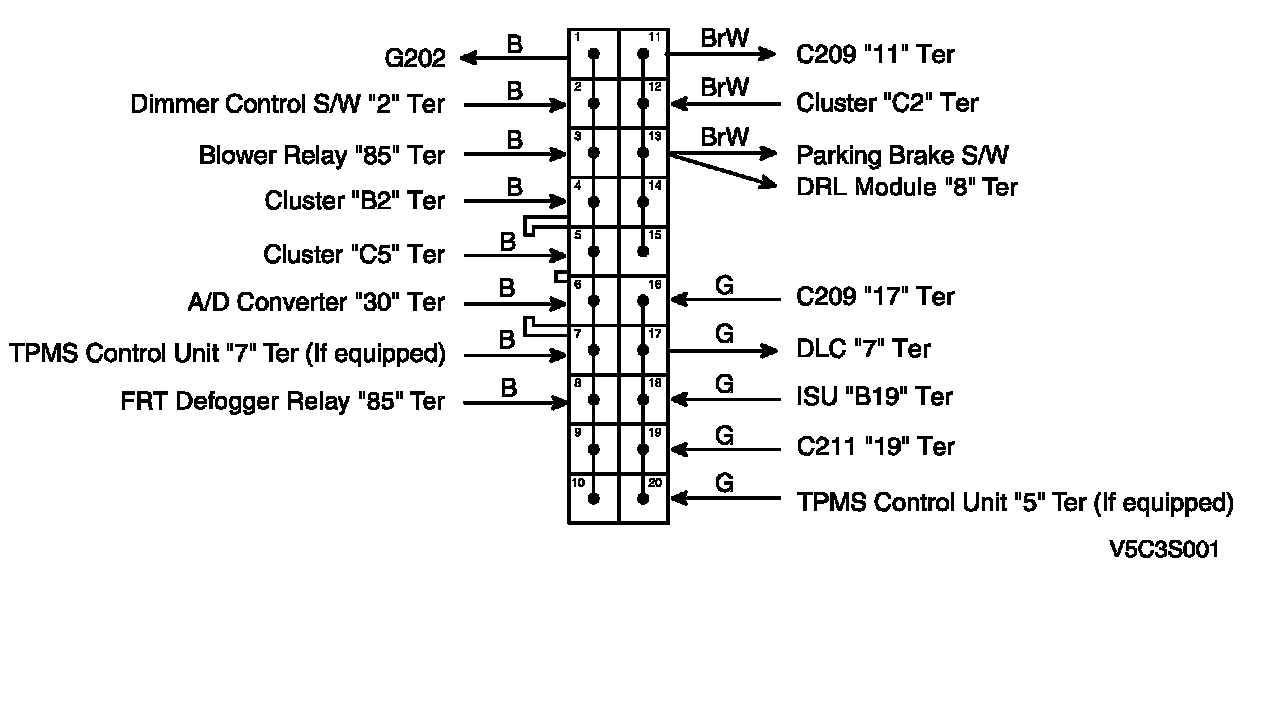

S201 (ORANGE):
S202 (ORANGE):
S204 (RED):
SPLICE PACK
