Turn Signal Indicator, ODO Switch and PNP Switch Circuit
Turn Signal Indicator, ODO Switch and PNP Switch Circuit:
WIRING DIAGRAM
C102 - G202:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H INSTRUMENT PANEL:

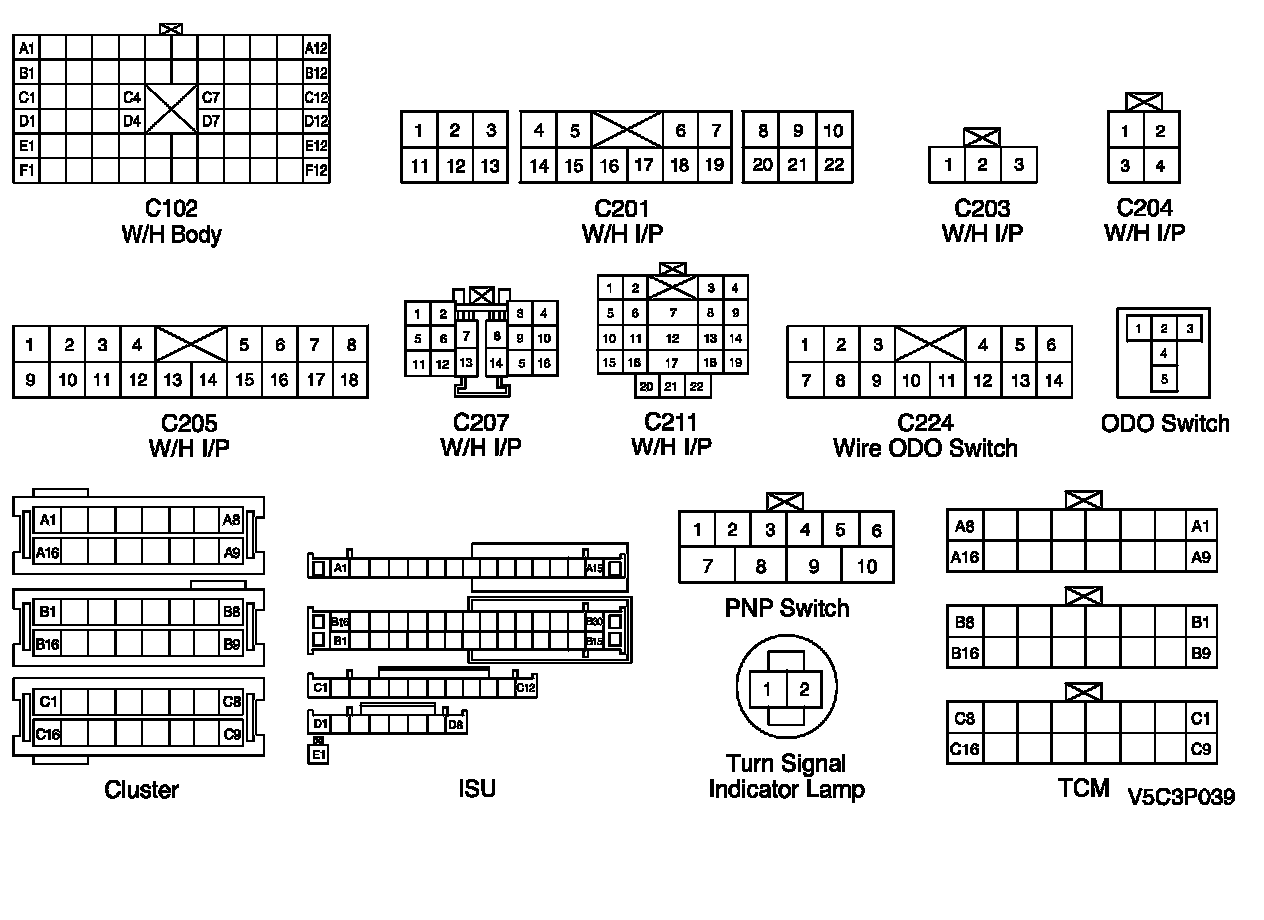

POSITION OF CONNECTORS AND GROUNDS
S201 (ORANGE):
S202 (ORANGE):
S301 (COLORLESS):

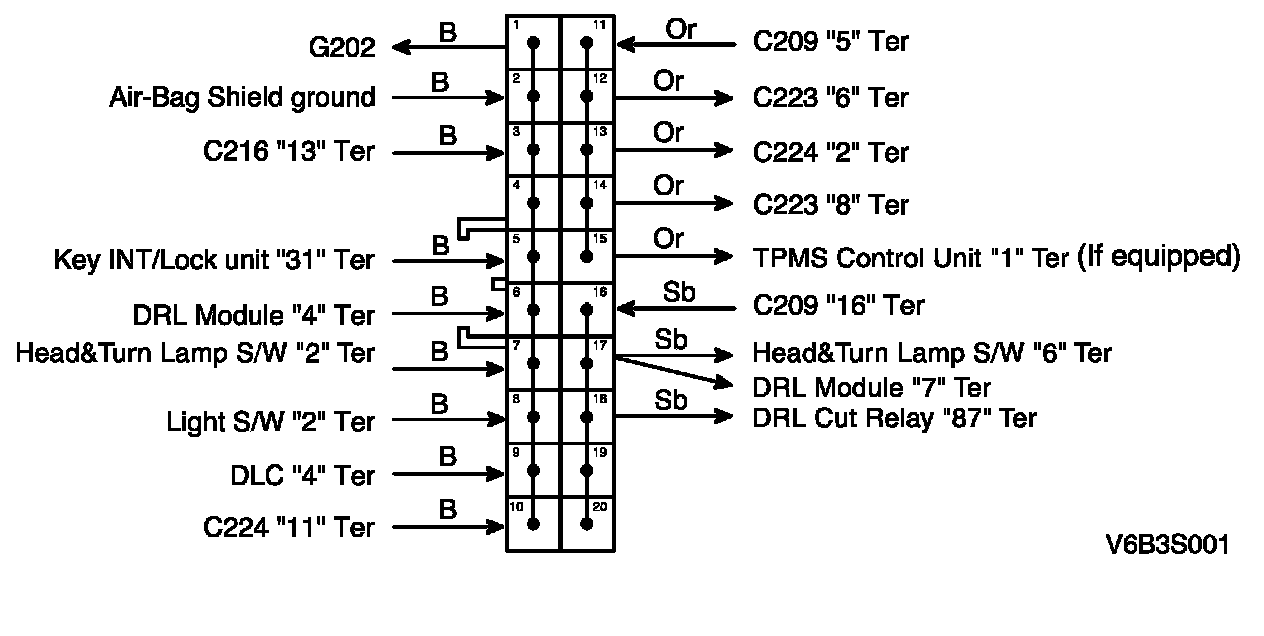

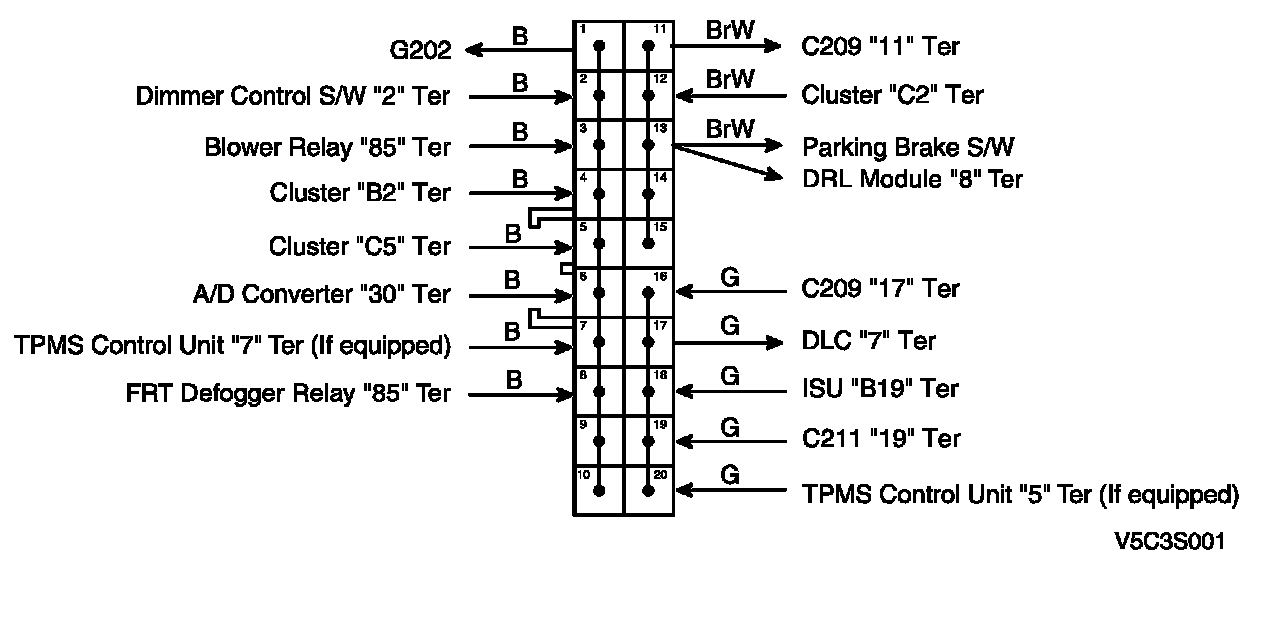

SPLICE PACK
