Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Other Instrument Lamps Ok
Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Other Instrument Lamps Ok

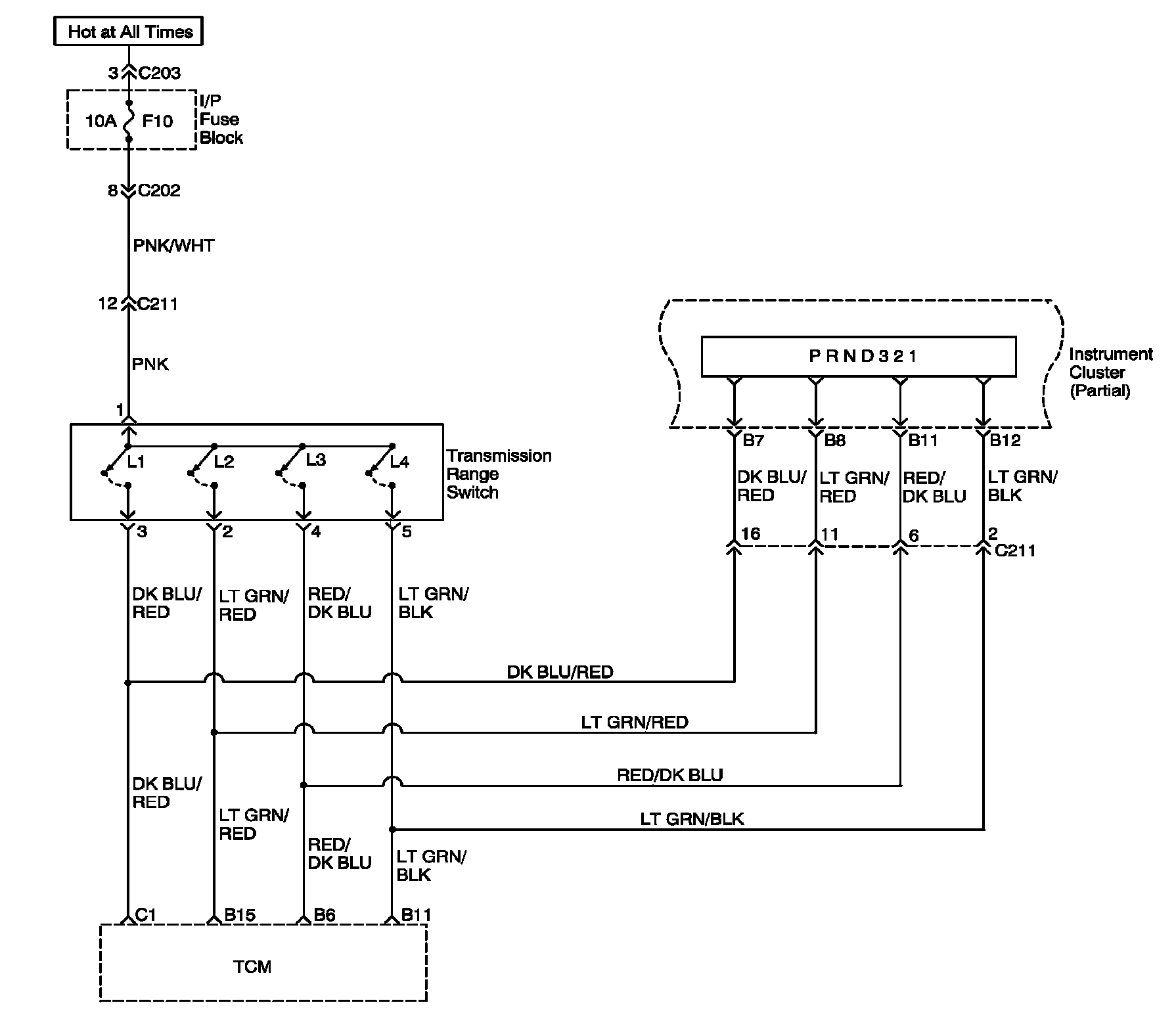

Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Other Instrument Lamps OK:

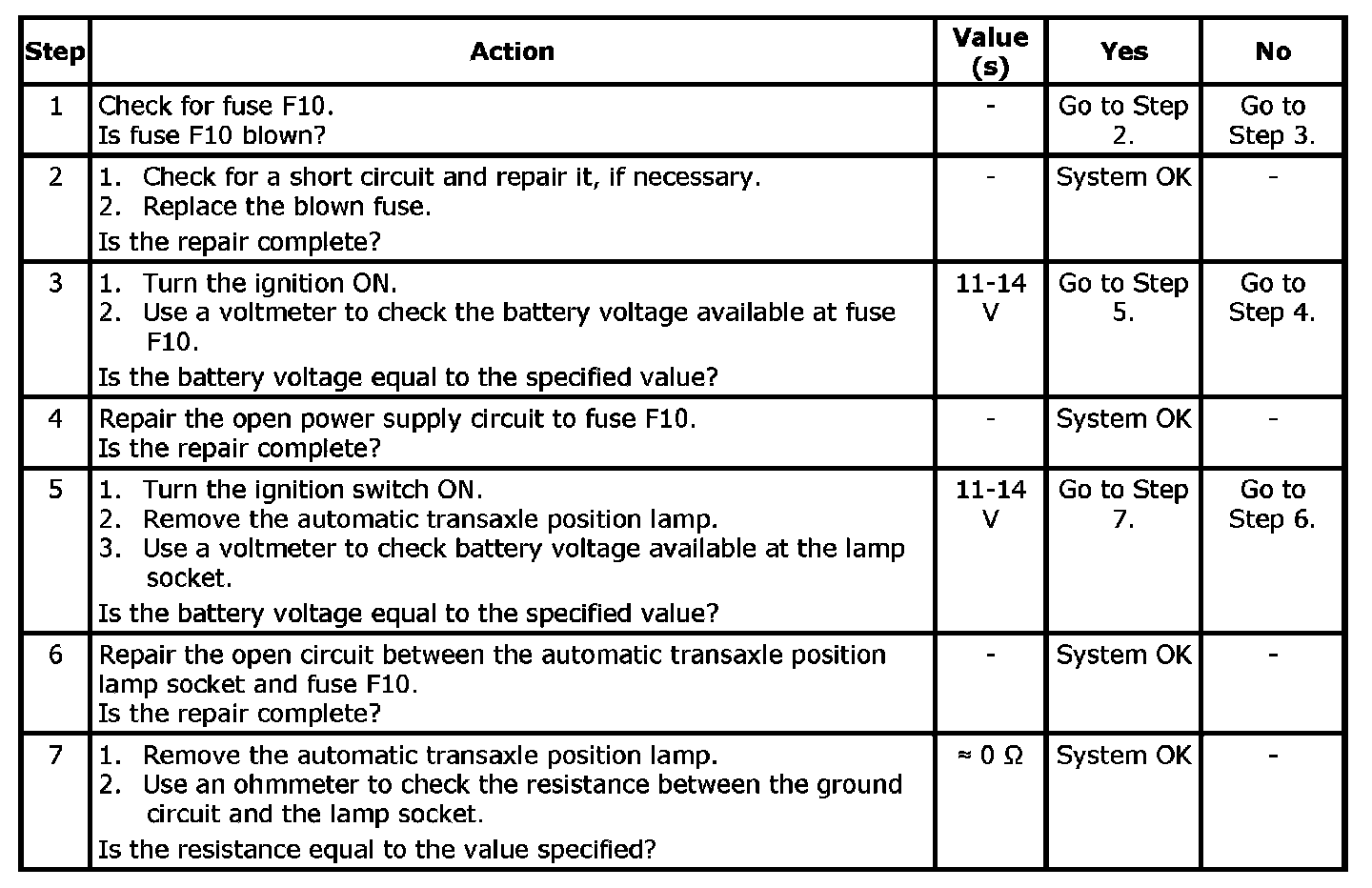

Step 1 - 7:
