Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2006
>>
Verona L6-2.5L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Instrument Cluster Indicator Lamps Do Not Operate
Instrument Cluster Indicator Lamps Do Not Operate

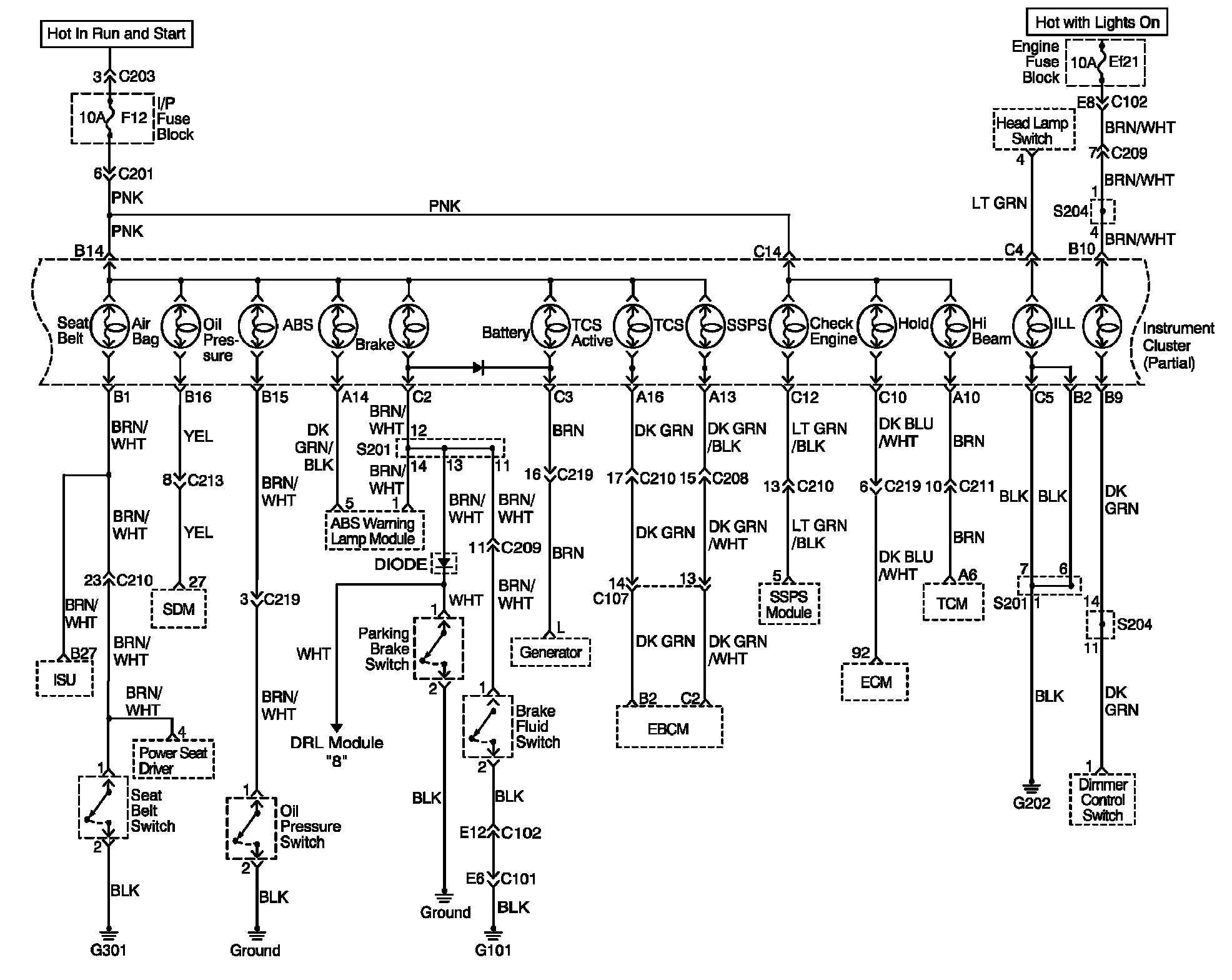

Instrument Cluster Indicator Lamps Do Not Operate Part 1:

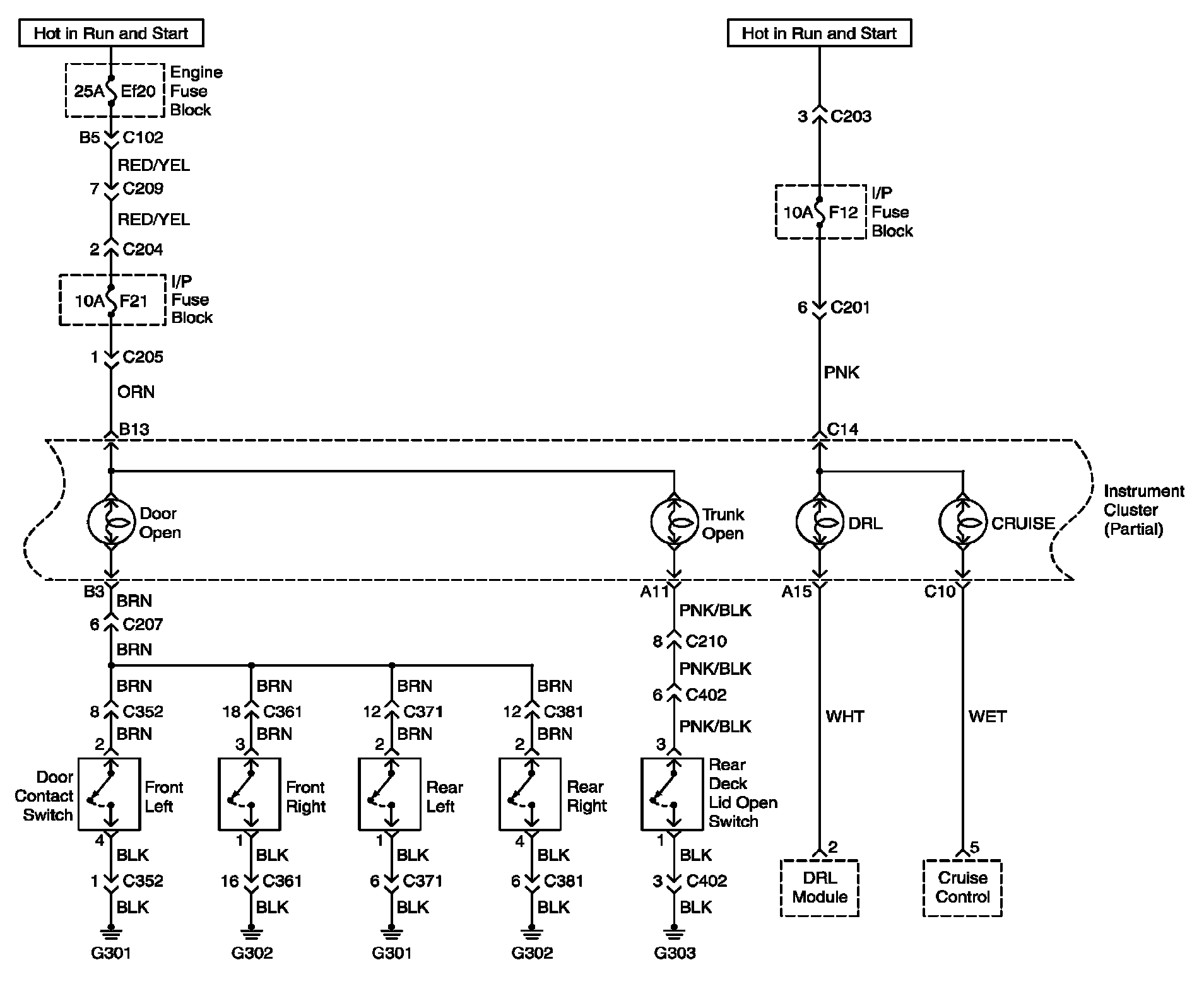

Instrument Cluster Indicator Lamps Do Not Operate Part 2:

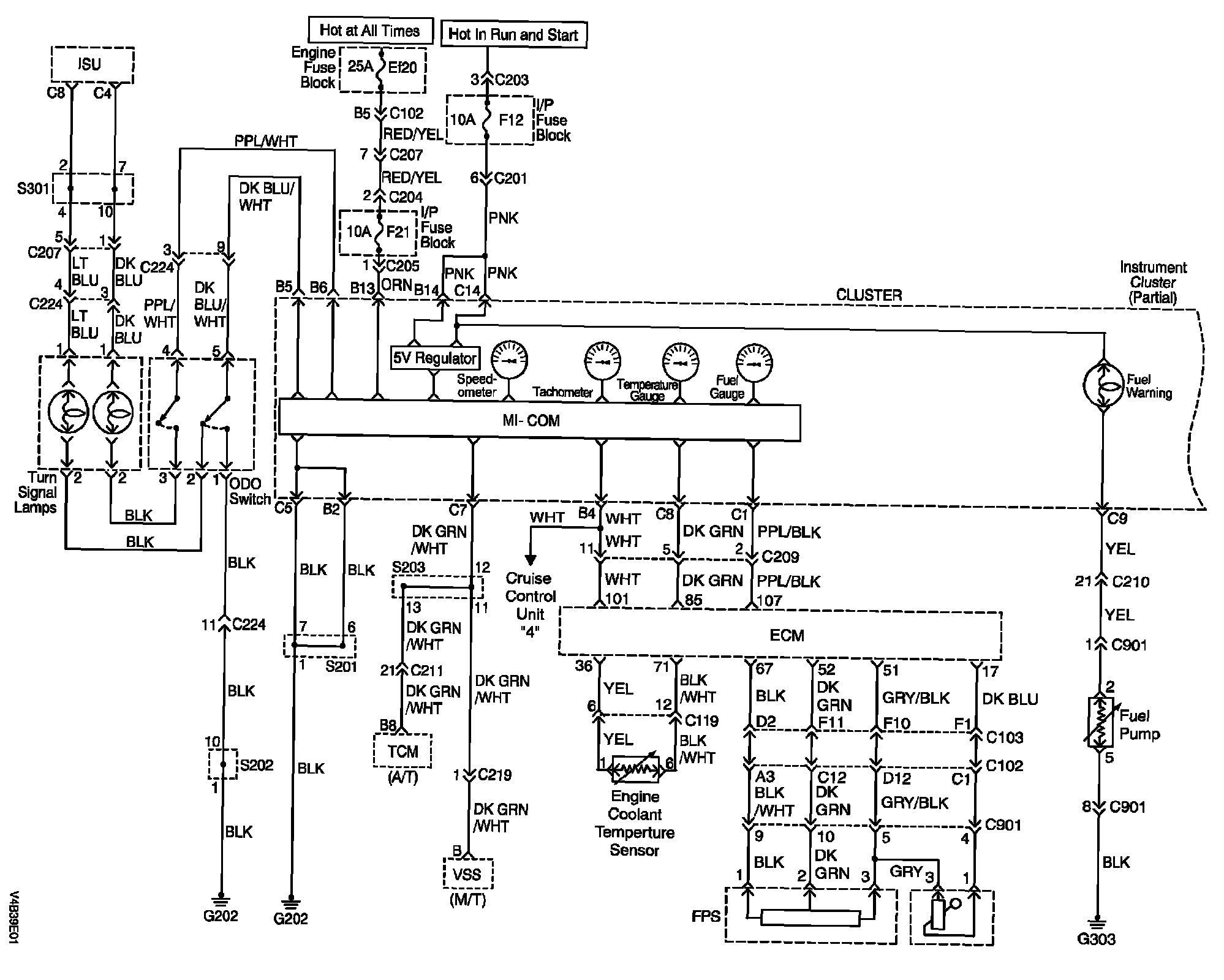

Instrument Cluster Indicator Lamps Do Not Operate Part 3:

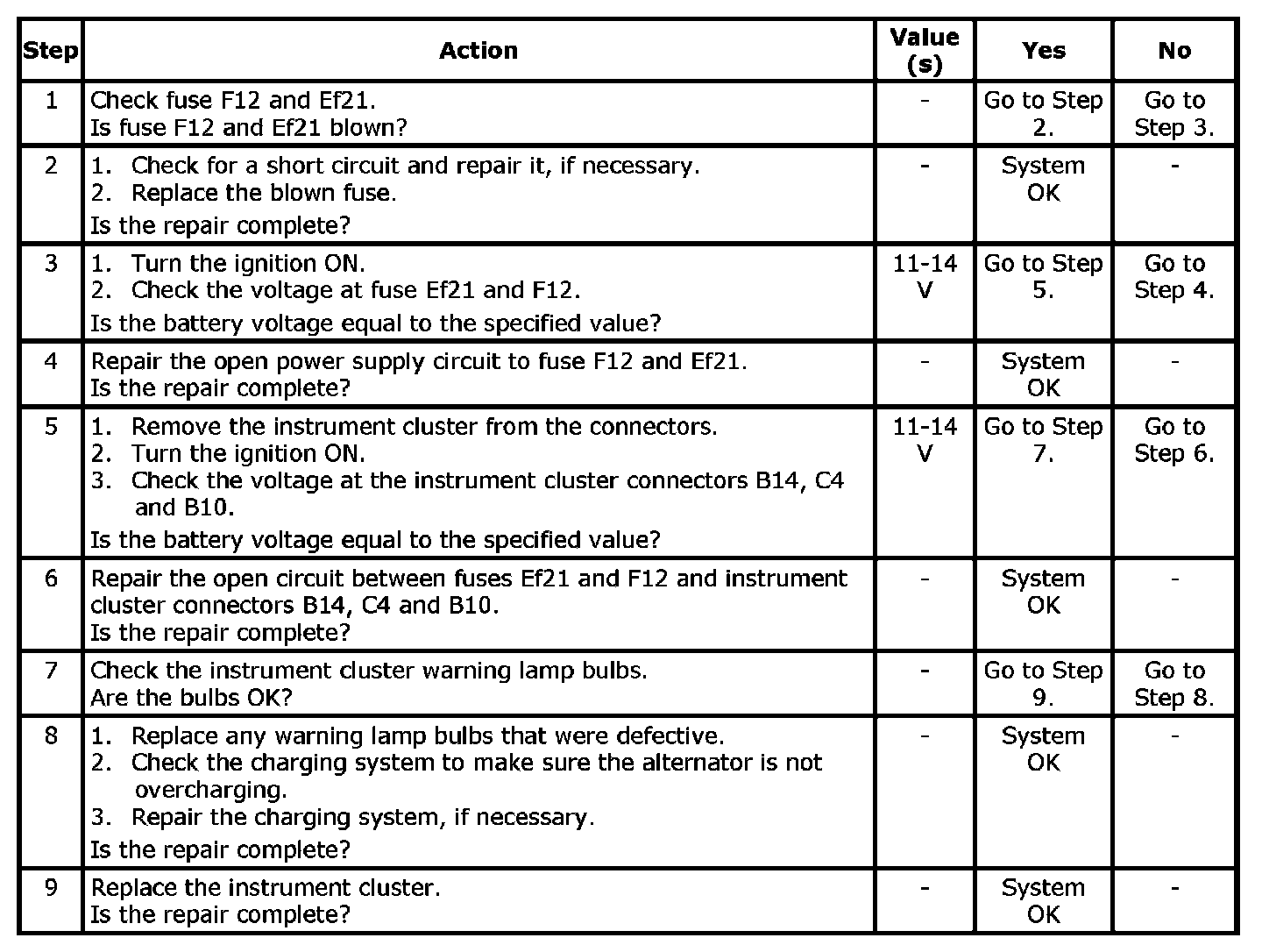

Step 1 - 9:
