Temperature Gauge: Service and Repair
Fuel and Temperature Gauge Removal and InstallationFuel and Temperature Gauge Removal
1. Disconnect the negative battery cable.

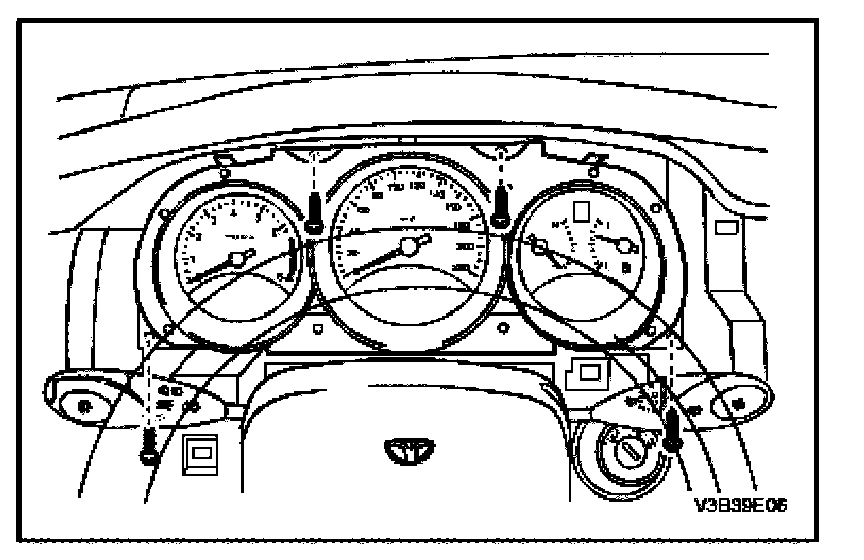

2. Remove the instrument cluster. Refer to Instrument Cluster Removal.
3. Press the clips down and remove the instrument cluster lens.

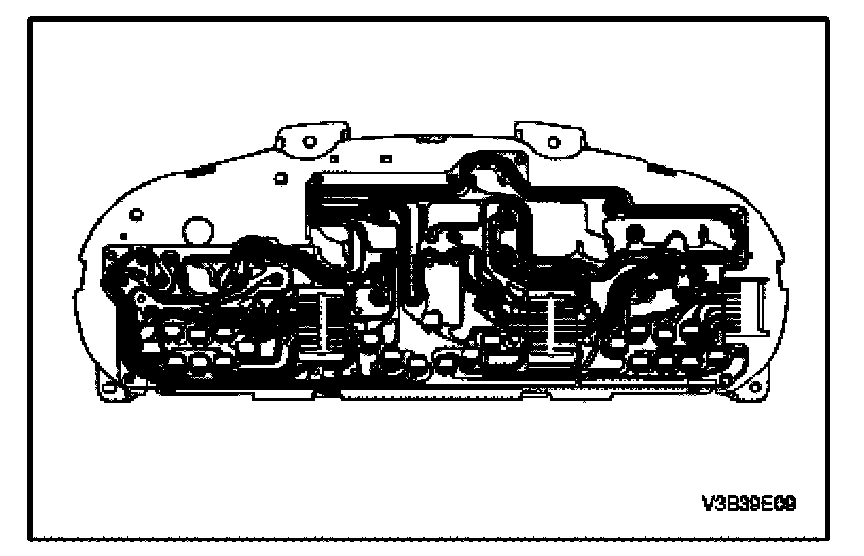

4. Remove the fuel and the temperature gauge from the cluster assembly.
Fuel and Temperature Gauge Installation

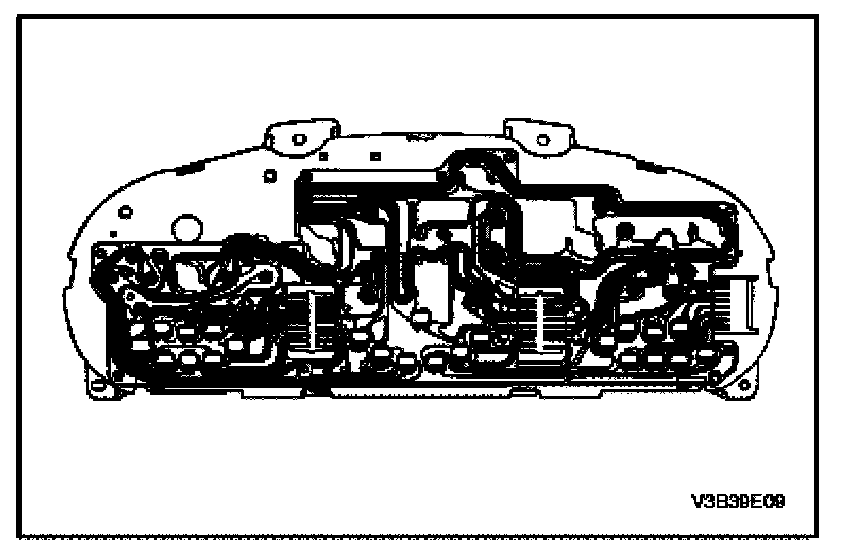

1. Install the fuel and the temperature gauge to the cluster assembly.
2. Install the instrument cluster lens.
3. Install the instrument cluster. Refer to Instrument Cluster Installation.
4. Connect the negative battery cable.
