High-Beam and Low-Beam Headlamps Are Inoperative on Both Left and Right Sides

Step 1 - 8:

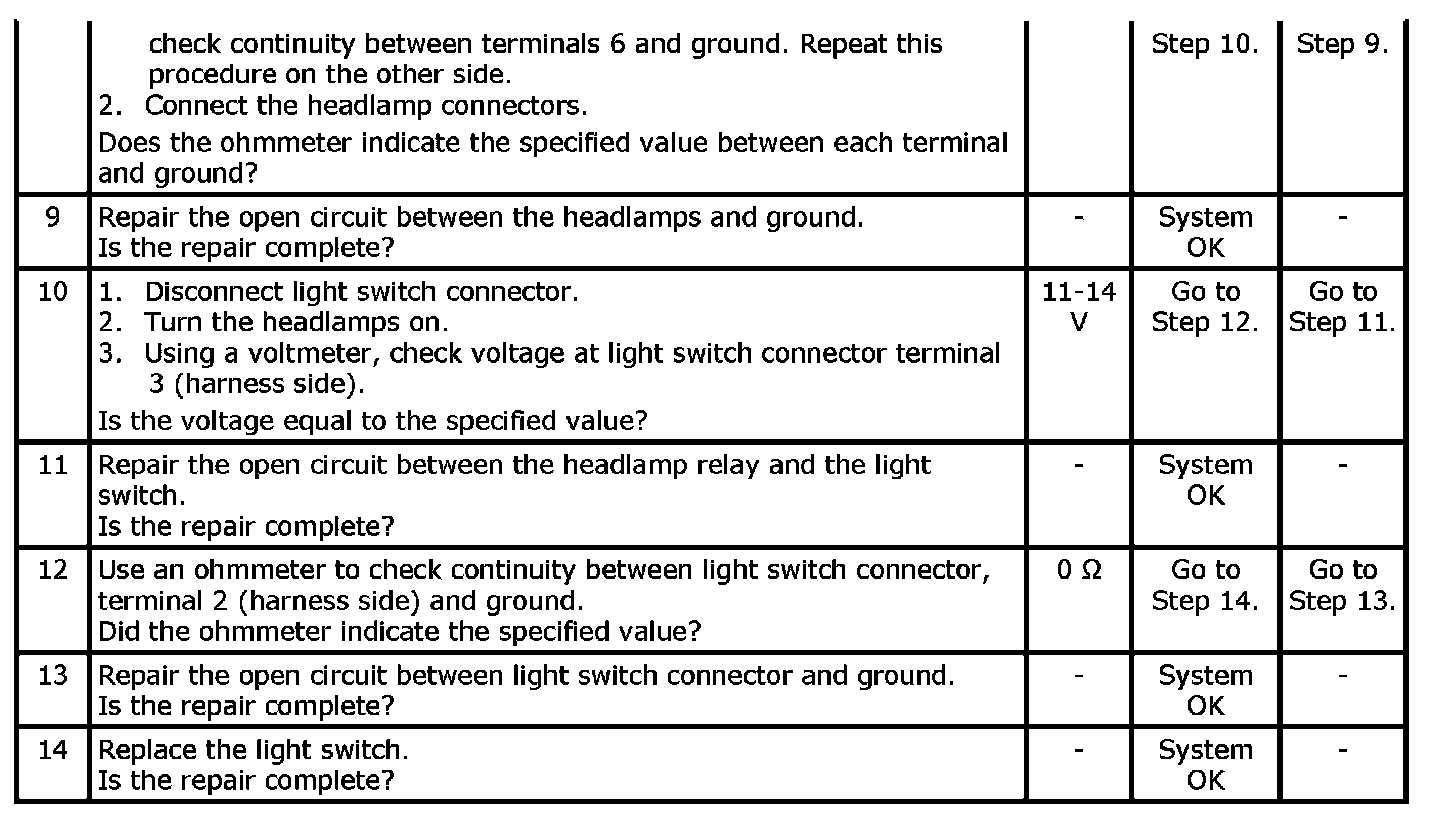

Step 9 - 14:

High-Beam and Low-Beam Headlamps Are Inoperative on Both Left and Right Sides

Diagnostic Aids

If there are several other systems inoperative with the ignition ON, such as power windows, power seats, sunroof, and front turn signals, check ground G101.
