Park / Neutral Start Switch Removal and Installation
Park / Neutral Start Switch Removal1. Disconnect the negative battery cable.
2. Remove the air filter housing.

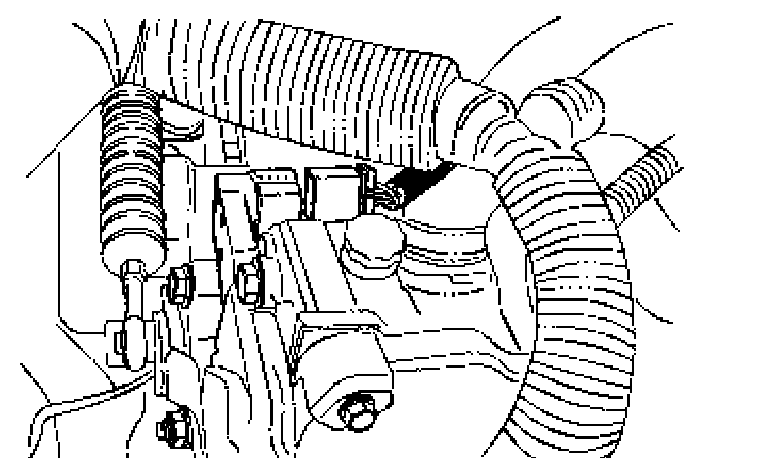

3. Disconnect the park/neutral position switch electrical connector.
4. Disconnect the shift control cable and the retaining clip.

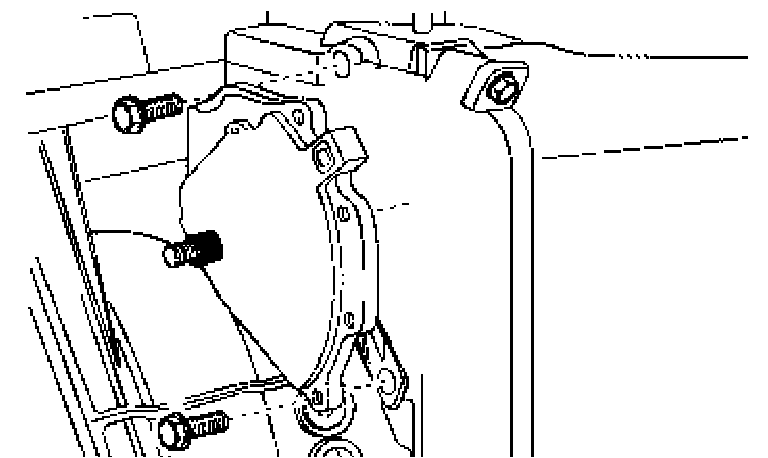

5. Remove the shift lever nut and the shift lever.
6. Remove the park/neutral start switch.
Park/neutral Start Switch Installation
Tools Required:
DW260-050 P/N Switch Installer
1. Install the park/neutral start switch.
Tighten: Tighten the bolts to 10 Nm (89 inch lbs.).

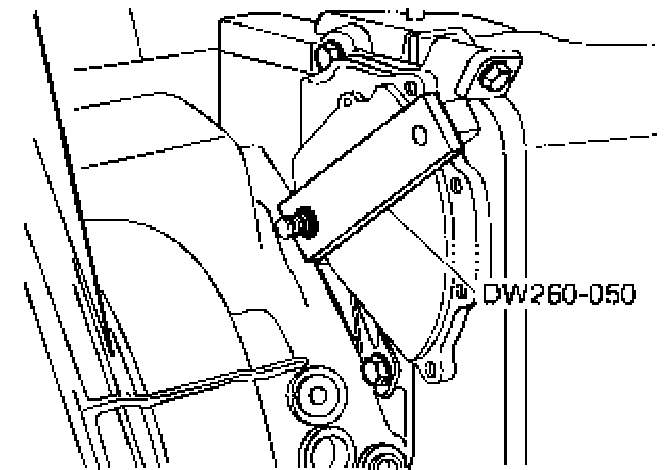

2. Adjust the park/neutral switch using the P/N switch installer DW260-050.
CAUTION: When install the park/neutral switch, using the special service tools and the shift lever must be positioned "Neutral".
3. Install the shift lever and the shift lever nut.
Tighten: Tighten the shift lever nut to 10 Nm (89 inch lbs.).
4. Connect the shift control cable and the retaining clip.
5. Connect the park/neutral position switch electrical connector.
6. Install the air filter housing.
7. Connect the negative battery cable.
