Fuse: Locations
Fuse Block
Fuse Block Location (Engine):

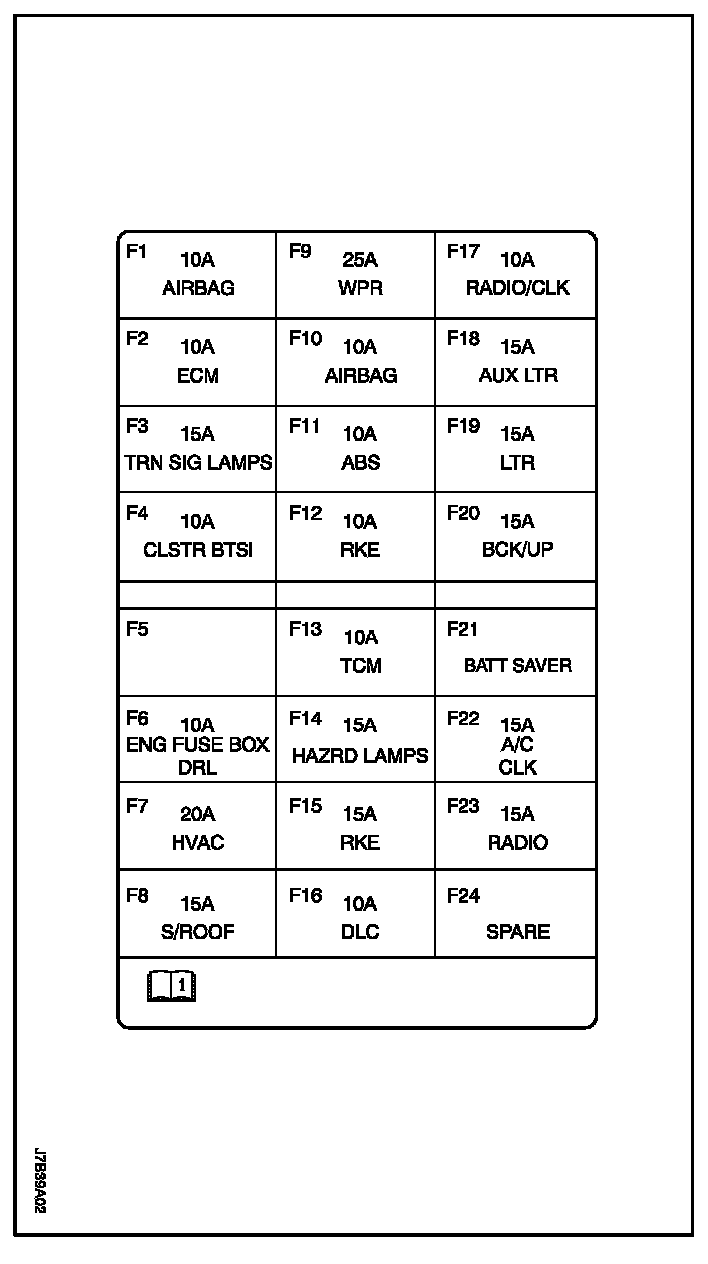

Fuse Block Location (Passenger Compartment):
Fuse Chart

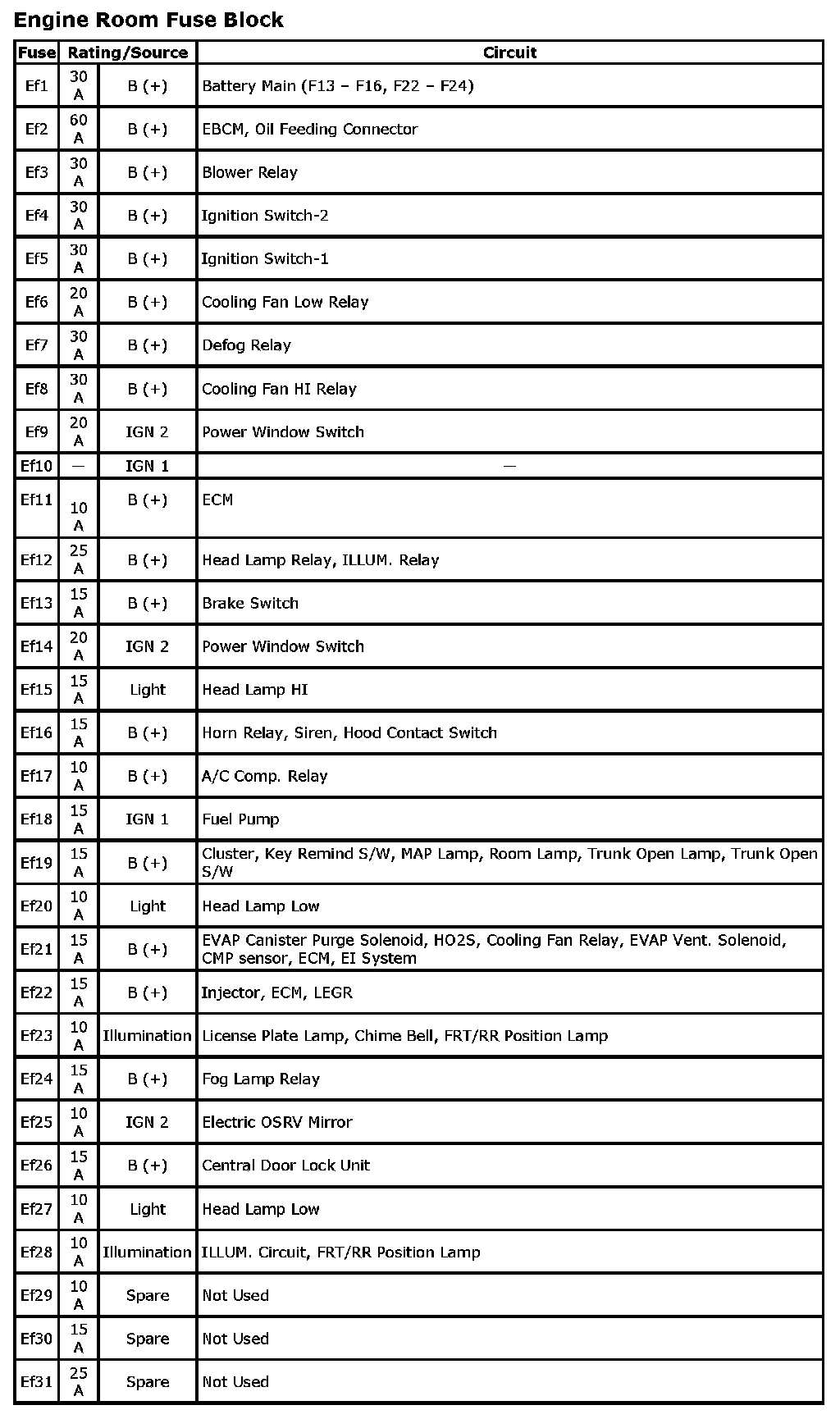

Engine Room Fuse Block:

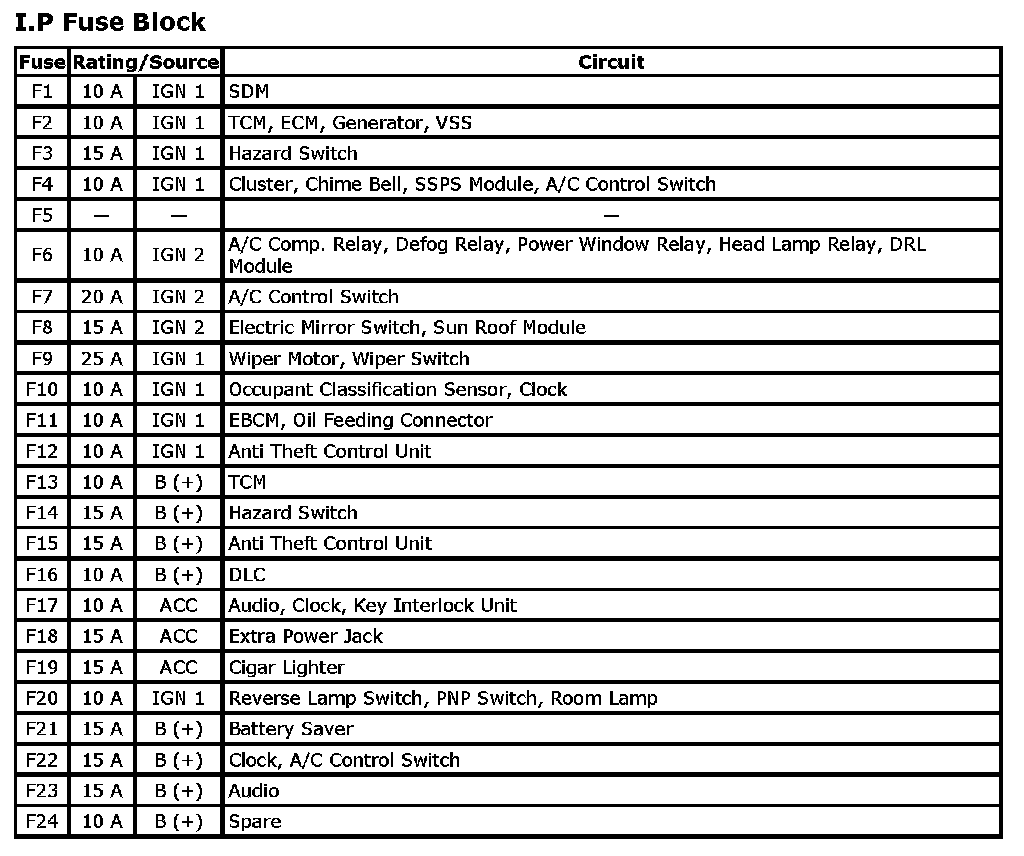

I.P Fuse Block:
