Symptom Related Diagnostic Procedures

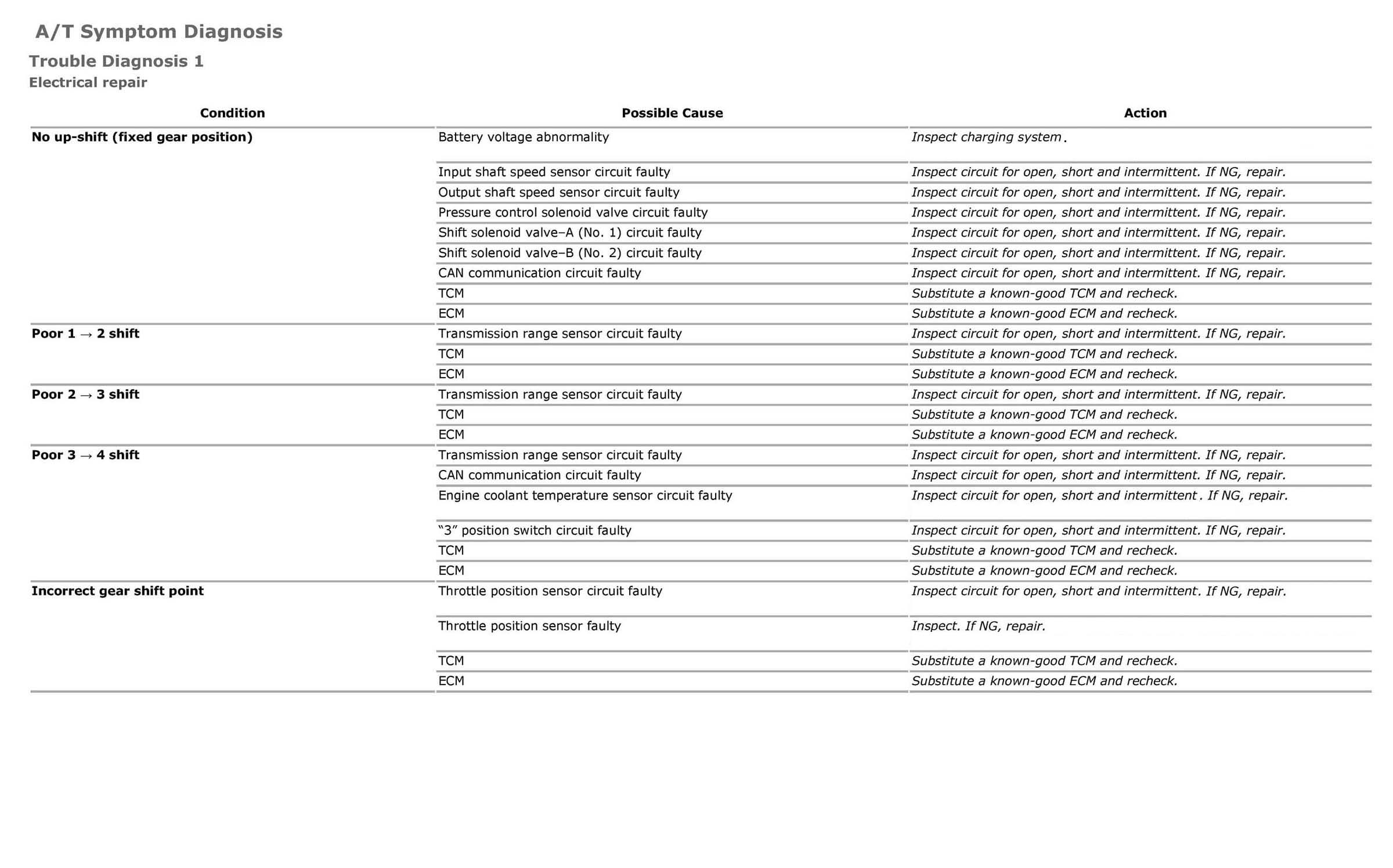

A/T Symptom Diagnosis

Trouble Diagnosis 1

Electrical repair








Trouble Diagnosis 2

On-vehicle repair








Trouble Diagnosis 3

Off-vehicle repair
