Ambient Temperature Sensor / Switch HVAC: Service and Repair
Inside Air Temperature Sensor Removal and InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Remove audio unit from instrument panel referring to Audio Unit Removal and Installation (If Equipped).
3. Remove combination meter from instrument panel referring to Combination Meter Removal and Installation.

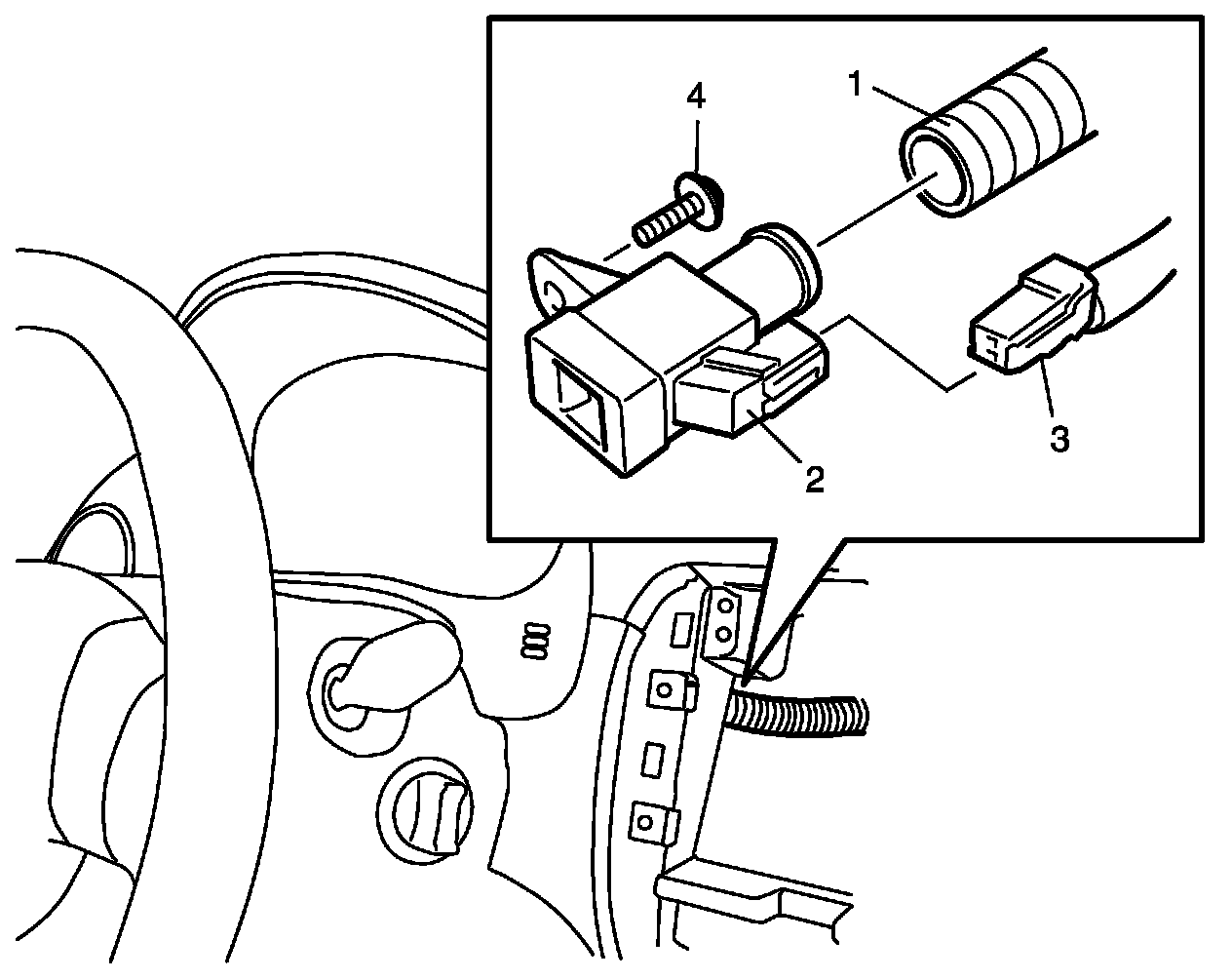

4. Remove connector (3) and aspirator hose (1) from inside air temperature sensor (2).
5. Remove inside air temperature sensor (2) from instrument panel by removing screw (4).
Installation
Reverse removal procedure.
