Rear Ventilation Duct Removal and Installation

Rear Ventilation Duct Removal and Installation

Removal

1) Remove instrument panel. Removal and Replacement
2) Remove center console box. Center Console Box Removal and Installation

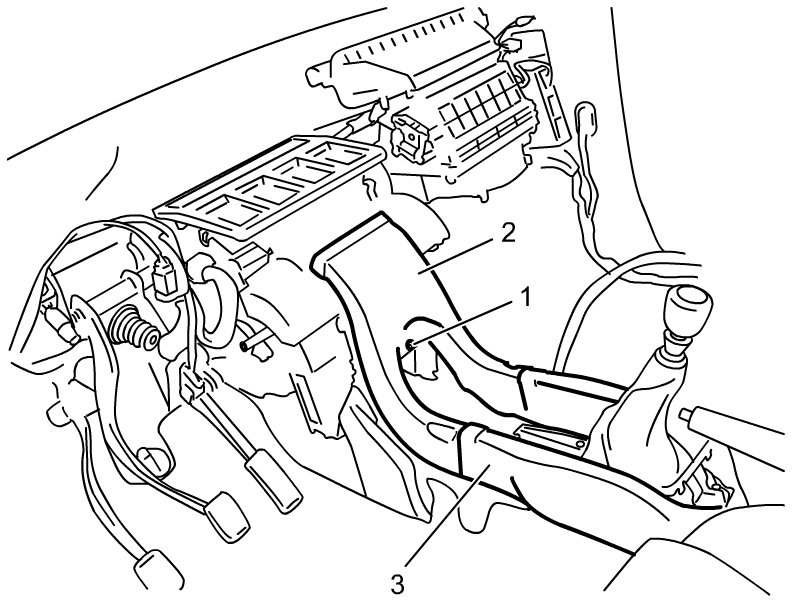

3) Remove rear ventilation duct No.2 (3).
4) Remove rear ventilation duct No.1 (2) by removing a screw (1).






Installation

Reverse removal procedure.
