Instrument Cluster / Carrier: Description and Operation

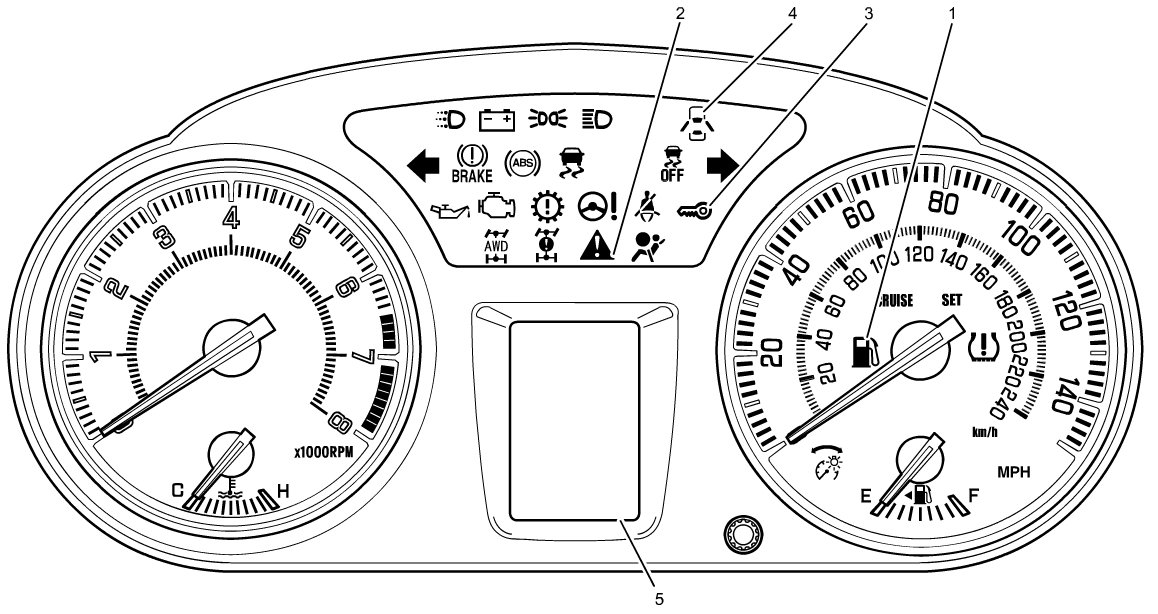

Combination Meter Description

- Information display indicates opening / ending screen, CVT shift position, odometer, tripmeter, outside air temperature, instantaneous fuel consumption, average fuel consumption, possible driving distance, average vehicle speed, meter brightness and direction / distance to obstacle from the bumper.
- The warning buzzer forms an integral part of the combination meter circuit.
- Fuel gauge data is supplied to the combination meter directly from the fuel level sensor.






Information Display

The information display indicates various items of information including CVT selector position, odometer, trip meter, outside temperature, instantaneous fuel consumption, average fuel consumption, brightness of instrument panel, direction and distance of an obstacle sensed by the parking sensor. The information display can also indicate the following messages related to vehicle.

Information display messages






User customization function

The user customization function is activated when the "DISP" switch at the steering wheel is held pulled for more than 3 seconds when the ignition mode of keyless push start system is in "ON" and the vehicle is stationary. When activated, the function allows making the following settings.

- Distance units
- Fuel economy units
- Language
- Resetting average fuel economy
- Temperature units
- Foot lights
- Default setting
