Antilock Brakes / Traction Control Systems

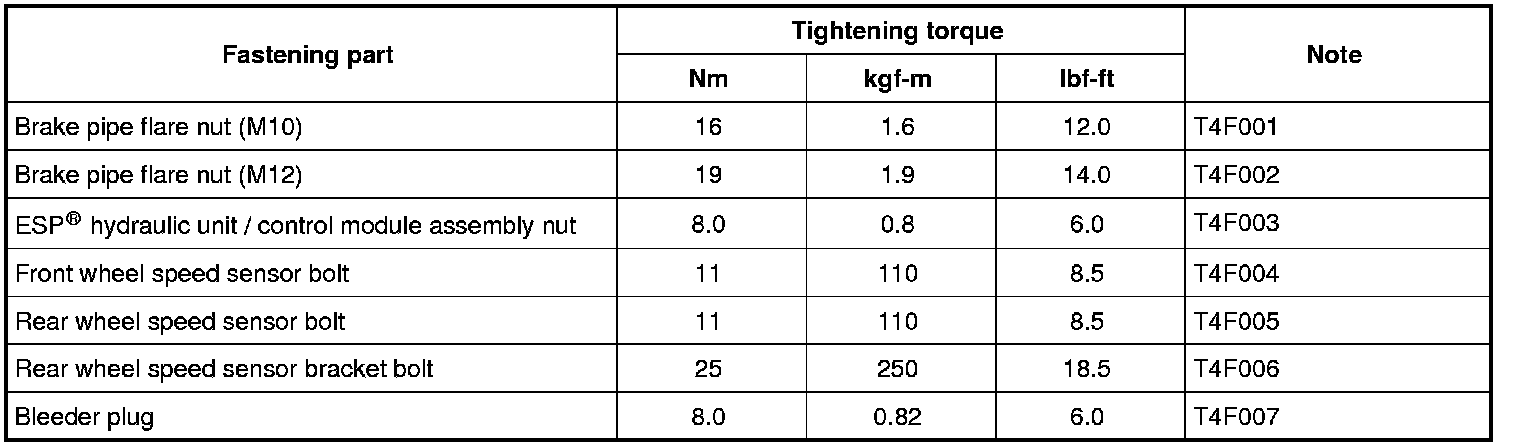

Tightening Torque Specifications







NOTE:

The tightening torque(s) also specified in:

ESP Hydraulic Unit / Control Module Assembly Components ESP (R) Hydraulic Unit / Control Module Assembly Components

Reference:

For the tightening torques of fasteners not specified in this section, refer to Fastener Information Fasteners Information.
