Rear Suspension

Rear Suspension System Description

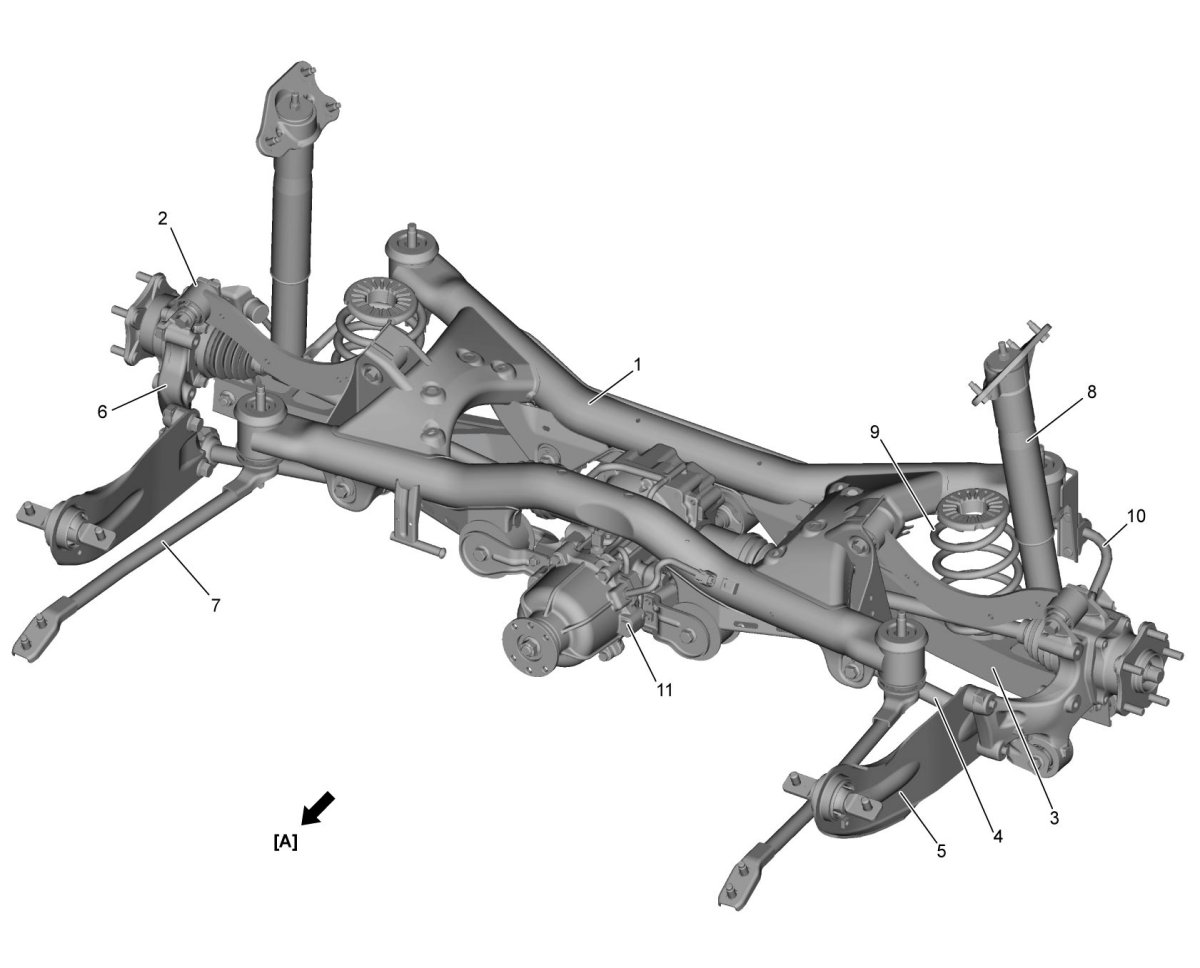

Rear suspension system is of a multi-link suspension type consisting of a rear suspension-frame (1), upper arms (2), lower arms (3), control rods (4), trailing arms (5), suspension knuckles (6), frame front bars (7), shock absorber assemblies (8), coil springs (9) and rear stabilizer bars (10).
