B1044

DTC B1044 / B1048

DTC Detecting Condition and Trouble Area

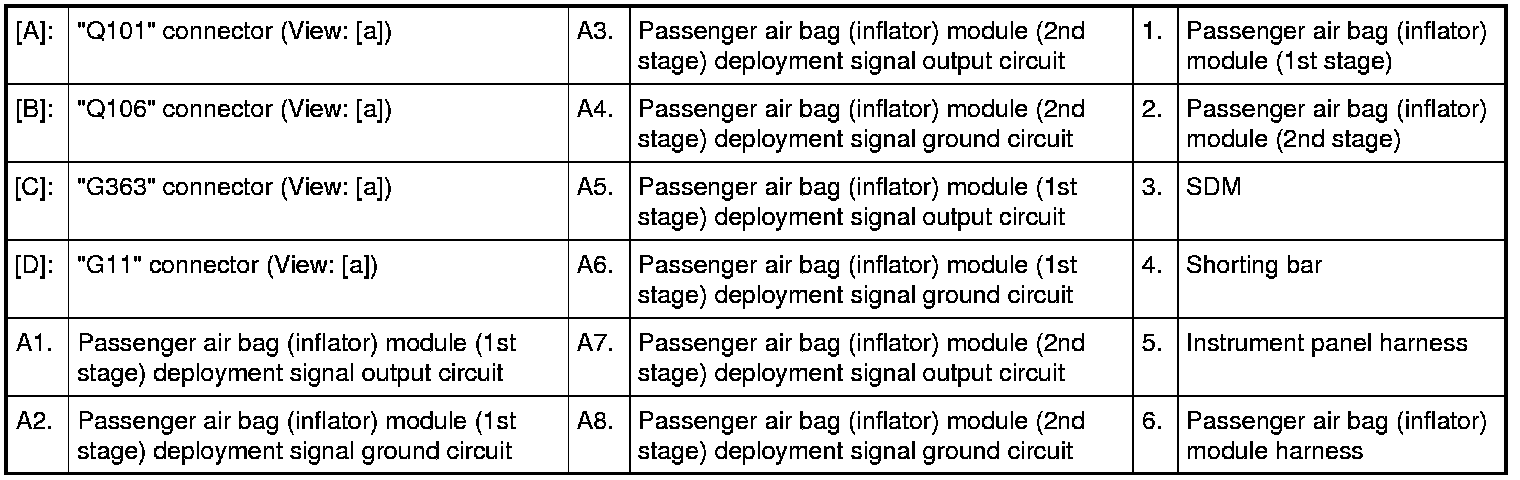

Circuit Diagram










DTC Troubleshooting


1. Was "Air Bag Diagnostic System Check" performed?
YES
Go to Step 2.
NO
Go to Air Bag Diagnostic System Check Air Bag Diagnostic System Check.
2. Passenger air bag (inflator) module circuit check
Confirm that ignition mode of keyless push start system is in "OFF".
Disconnect "Q101" or "Q106" connector.
Disconnect "G11" connector.
Release shorting bar in SDM connector inserting release tool included in special tool (A).
Push engine switch to change ignition mode of keyless push start system to "ON".
Check the following points.
Voltage between each of "A5" and "A6" circuits and ground (DTC B1044): 0 V
Voltage between each of "A7" and "A8" circuits and ground (DTC B1048): 0 V
Special Tool

(A): 09932-76010

Are they in good condition?
YES
Substitute a known-good SDM and recheck DTC. SDM Removal and Installation
NO
Go to Step 3.
3. Instrument panel harness circuit check
Confirm that ignition mode of keyless push start system is in "OFF".
Disconnect "G363" connector.
Release shorting bar in SDM connector inserting release tool included in special tool (A).
Push engine switch to change ignition mode of keyless push start system to "ON".
Check the following points.
Voltage between each of "A5" and "A6" circuits and ground (DTC B1044): 0 V
Voltage between each of "A7" and "A8" circuits and ground (DTC B1048): 0 V
Special Tool

(A): 09932-76010

Is each measured voltage 0 V?
YES
Replace passenger air bag (inflator) module harness.
NO
Replace instrument panel harness.

NOTE:

Upon completion of inspection and repair work, perform the following items.

- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs, DTC Clearance DTC Clearance
if any.
- Repeat Air Bag Diagnostic System Check Air Bag Diagnostic System Check
to confirm that the trouble has been corrected.
