B1142

DTC B1141 / B1142

DTC Detecting Condition and Trouble Area

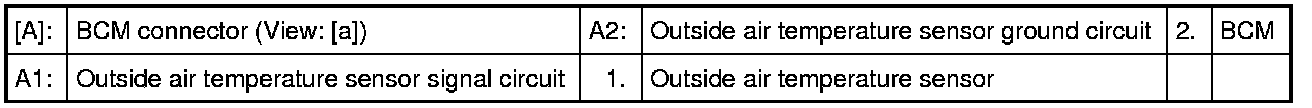

Circuit Diagram










DTC Confirmation Procedure

1) Push engine switch to change ignition mode to "ON".

DTC Troubleshooting


1. DTC check
Is DTC B1132 detected together?
YES
Go to troubleshooting for applicable DTC.
NO
Go to Step 2.
2. Outside air temperature sensor circuit check
Confirm that ignition mode of keyless push start system is in "OFF".
Disconnect outside air temperature sensor and "E05" connectors.
Check for proper terminal connection to outside air temperature sensor and "E05" connectors.
If connections are OK, check the following points.
Resistance of "A1" and "A2" circuits: less than 3
Resistance between "A1" circuit and ground: infinity
Resistance between "A1" and "A2" circuit terminals at outside air temperature sensor connector: infinity
Voltage of "A1" and "A2" circuits: 0 - 1 V (with ignition mode of keyless push start system in "ON")
Are they in good condition?
YES
Go to Step 3.
NO
Repair or replace defective wire harness.
3. Outside air temperature sensor check
Check outside air temperature sensor. Outside Air Temperature Sensor
Is it in good condition?
YES
Substitute a known-good BCM and recheck DTC.
NO
Replace outside air temperature sensor. Outside Air Temperature Sensor Removal and Installation
