B1167

DTC B1167

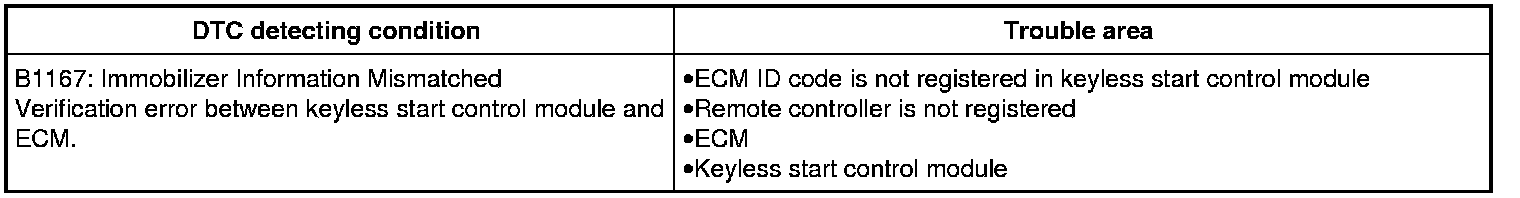

DTC Detecting Condition and Trouble Area






DTC Troubleshooting

NOTE:

If keyless start control module is used in another vehicle before, remote controller cannot be registered. Always install new keyless start control module whenever replacing is necessary.


1. DTC check
Check DTC in ECM. ECM
Is there any DTC detected?
YES
Go to troubleshooting for applicable DTC.
NO
Go to Step 2.
2. DTC recheck
Perform "ECM Registration".
Confirm that ignition mode of keyless push start system is in "OFF".
Push engine switch to change ignition mode to "ON".
Recheck DTC.
Is DTC B1167 still detected?
YES
Go to Step 3.
NO
End. (ECM was not registered)
3. Remote controller registration
Perform "Immobilizer Key Registration".
Confirm that ignition mode of keyless push start system is in "OFF".
Push engine switch to change ignition mode to "ON".
Recheck DTC.
Is DTC B1167 still detected?
YES
Replace keyless start control module and recheck DTC. Service and Repair
If DTC B1167 is still detected, replace ECM and recheck DTC.
NO
End. (Remote controller was not registered)
