B1169

DTC B1169

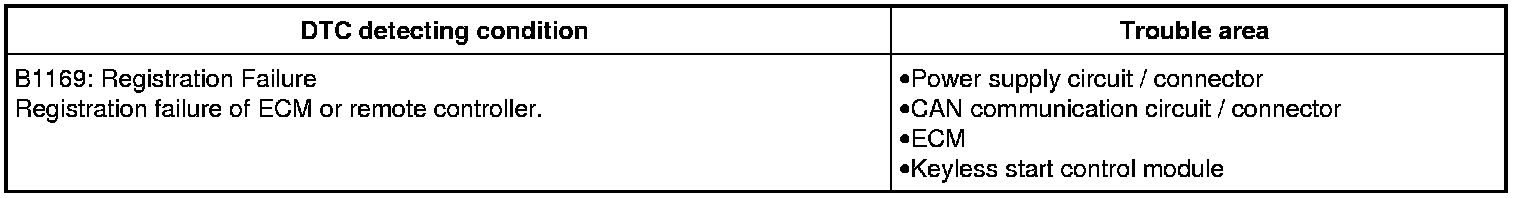

DTC Detecting Condition and Trouble Area






DTC Troubleshooting


1. DTC check
Is there any DTC(s) other than B1169 detected?
YES
Go to troubleshooting for applicable DTC.
NO
Go to Step 2.
2. ECM registration
Perform "ECM Registration".
Confirm that ignition mode of keyless push start system is in "OFF".
Push engine switch to change ignition mode to "ON".
Recheck DTC.
Is DTC B1169 still detected?
YES
Replace ECM and recheck DTC. Service and Repair
NO
Replace keyless start control module and recheck DTC. Service and Repair
