B1175

DTC B1175

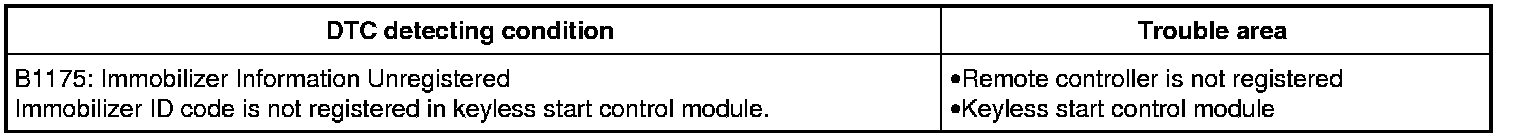

DTC Detecting Condition and Trouble Area






DTC Troubleshooting

NOTE:

If immobilizer registration is not performed normally, check whether or not ECM suites with specification or CAN communication DTC is not shown. Further, check remote controller itself.


1. Remote controller registration
Perform "Immobilizer Key Registration".
Confirm that ignition mode of keyless push start system is in "OFF".
Push engine switch to change ignition mode to "ON".
Recheck DTC.
Is DTC B1175 still detected?
YES
Replace keyless start control module and recheck DTC. Service and Repair
NO
End. (Remote controller was not registered)
