B1192

DTC B1192

DTC Detecting Condition and Trouble Area

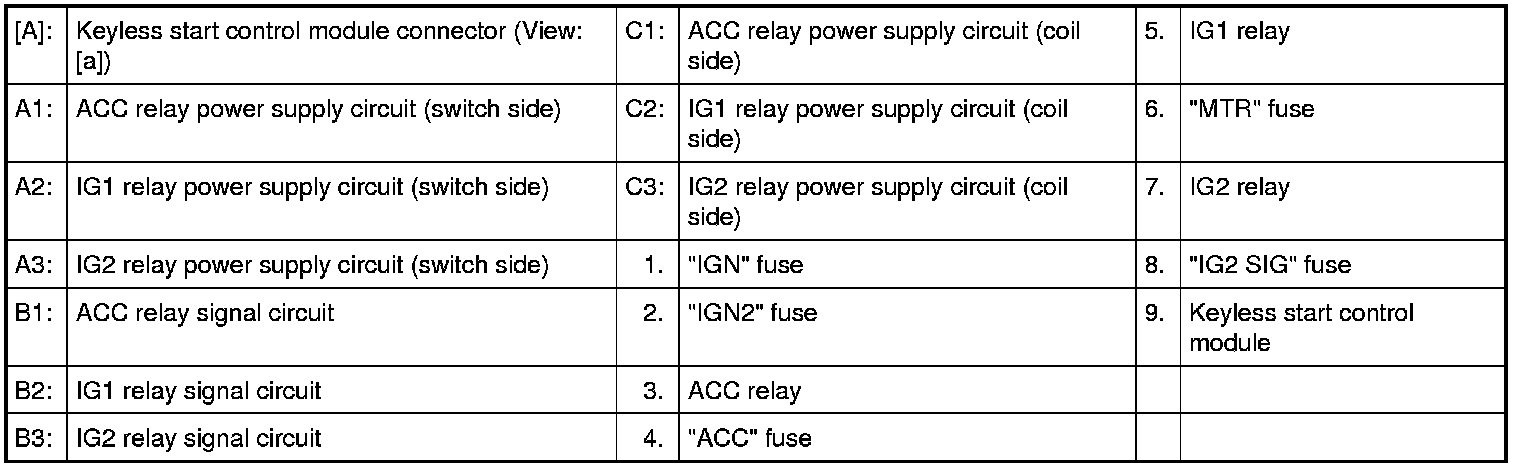

Circuit Diagram










DTC Confirmation Procedure

1) Confirm that ignition mode of keyless push start system is in "OFF".
2) Push engine switch to change ignition mode to "ACC".
3) Push engine switch to change ignition mode to "ON".
4) Repeat Step 1) through 3) several times.

DTC Troubleshooting

NOTE:

This DTC might be detected when battery is run down or the voltage is very low.


1. IG1 relay power supply circuit (switch side) check
Confirm that ignition mode of keyless push start system is in "OFF".
Remove IG1 relay.
Check that voltage between "A2" circuit terminal of IG1 relay connector and ground is battery voltage.
Is it in good condition?
YES
Go to Step 2.
NO
Repair or replace defective wire harness and "IGN" fuse.
2. Fuse check
Check "MTR" fuse.
Is it in good condition?
YES
Go to Step 4.
NO
Go to Step 3.
3. IG1 relay signal circuit check
Push engine switch to change ignition mode to "OFF".
Disconnect "L01" connector.
Check for proper terminal connection to "L01" connector.
If connections are OK, check the following points.
Resistance between "B2" circuit and ground: infinity
Resistance between "B2" circuit terminal and each terminal at IG1 relay connector: infinity
Are they in good condition?
YES
Replace "MTR" fuse and keyless start control module and recheck DTC. Service and Repair
NO
Repair or replace defective wire harness, and then replace "MTR" fuse.
4. IG1 relay signal circuit check
Push engine switch to change ignition mode to "OFF".
Disconnect "L01" connector.
Check for proper terminal connection to "L01" connector.
If connections are OK, check the following points.
Resistance of "B2" circuit: less than 3
Resistance between "B2" circuit terminal and each terminal at IG1 relay connector: infinity
Voltage of "B2" circuit: 0 - 1 V (with ignition mode of keyless push start system in "ON")
Are they in good condition?
YES
Go to Step 5.
NO
Repair or replace defective wire harness.
5. IG1 relay power supply circuit (coil side) check
Check the following points.
Resistance of "C2" circuit: less than 3
Resistance between "C2" circuit and ground: infinity
Resistance between "C2" circuit terminal and each terminal at IG1 relay connector: infinity
Voltage of "C2" circuit: 0 - 1 V (with ignition mode of keyless push start system in "ON")
Are they in good condition?
YES
Go to Step 6.
NO
Repair or replace defective wire harness.
6. IG1 relay check
Check IG1 relay. Testing and Inspection
Is it in good condition?
YES
Replace keyless start control module and recheck DTC. Service and Repair
NO
Replace IG1 relay.
