B1803

DTC B1803

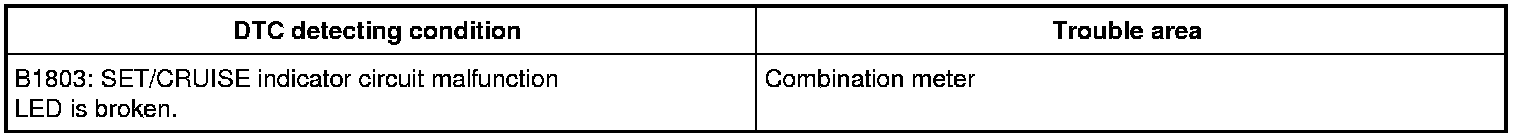

DTC Detecting Condition and Trouble Area






DTC Troubleshooting


1. DTC check
Clear DTC. DTC Clearance
Confirm that ignition mode of keyless push start system is in "OFF".
Push engine switch to change ignition mode of keyless push start system to "ON".
Check DTC. DTC Check
Is DTC B1803 still detected?
YES
Replace combination meter and recheck DTC. Service and Repair
NO
Intermittent trouble. Check for intermittent trouble. Intermittent Connection and Poor Contact Inspection
