B1810

DTC B1810

DTC Detecting Condition and Trouble Area

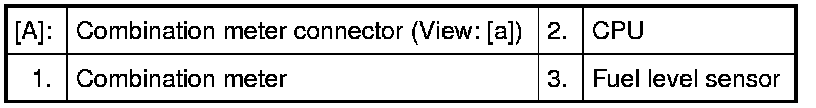

Circuit Diagram










DTC Troubleshooting


1. DTC check
Clear DTC. DTC Clearance
Confirm that ignition mode of keyless push start system is in "OFF".
Push engine switch to change ignition mode of keyless push start system to "ON".
Check DTC. DTC Check
Is DTC B1810 still detected?
YES
Go to Step 2.
NO
Intermittent trouble. Check for intermittent trouble. Intermittent Connection and Poor Contact Inspection
2. Fuel level sensor check
Check fuel level sensor. Fuel Level Sensor Inspection
Is it in good condition?
YES
Go to Step 3.
NO
Replace fuel level sensor and recheck DTC. Fuel Level Sensor Removal and Installation
/ Sub Fuel Level Sensor Removal and Installation (4WD Model)
3. Fuel level sensor circuit check
Confirm that ignition mode of keyless push start system is in "OFF".
Disconnect combination meter and fuel level sensor connectors.
Check for proper connection to combination meter and fuel level sensor terminals.
If connections are OK, check circuit between combination meter connector and fuel level sensor for open circuit, short to ground or short to power supply.
Are they in good condition?
YES
Replace combination meter and recheck DTC. Service and Repair
NO
Repair defective wire harness and recheck DTC.
