C1041

DTC C1041 / C1042 / C1043 / C1044 / C1045 / C1046 / C1051 / C1052 / C1053 / C1054 / C1055 / C1056 / C1063

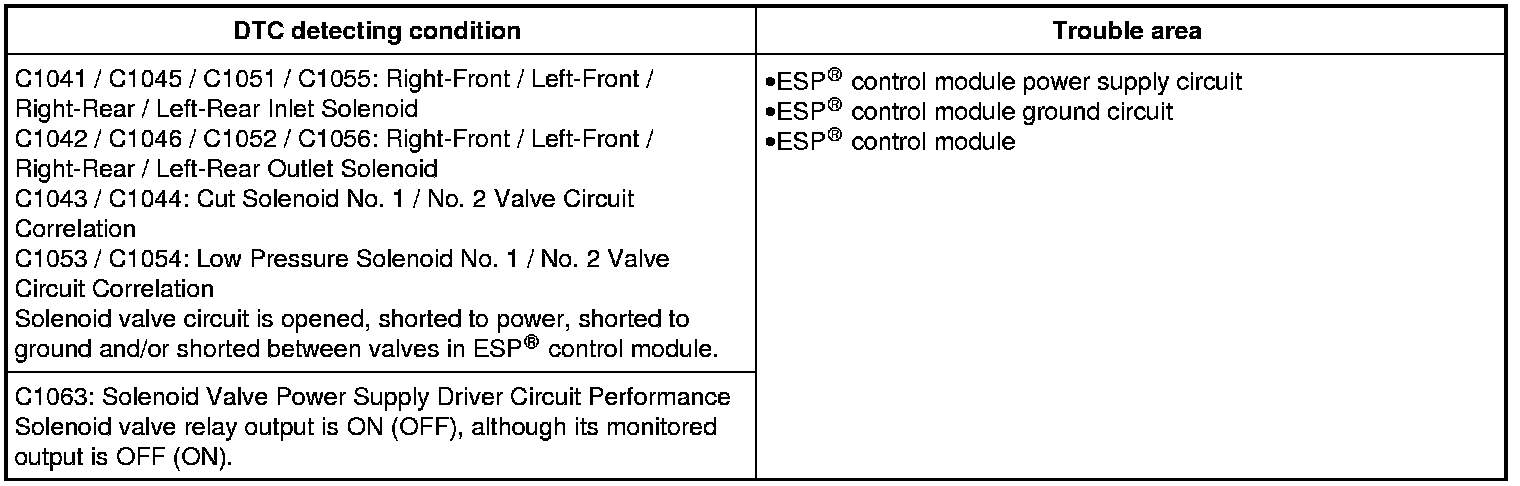

DTC Detecting Condition and Trouble Area






Circuit Diagram










DTC Troubleshooting


1. Was "ESP (R) System Check" performed?
YES
Go to Step 2.
NO
Go to ESP System Check ESP (R) System Check.
2. ESP (R) control module power supply and ground circuits check
Check ESP (R) control module power supply and ground circuits. Component Tests and General Diagnostics
Are they in good condition?
YES
Substitute a known-good ESP (R) control module and recheck DTC. ESP Hydraulic Unit / Control Module Assembly Removal and Installation
NO
Repair ESP (R) control module power supply or ground circuits.
