C1061

DTC C1061

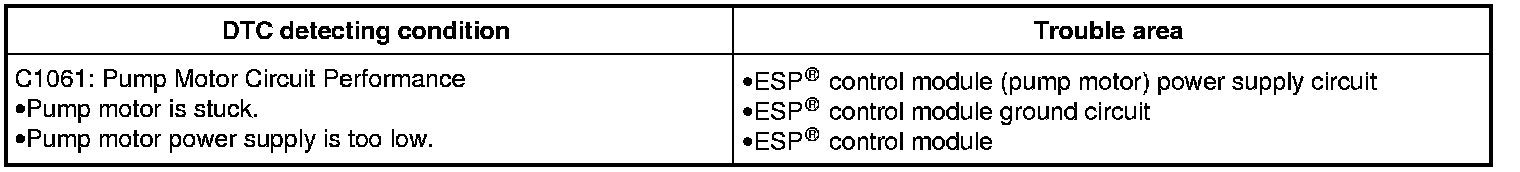

DTC Detecting Condition and Trouble Area

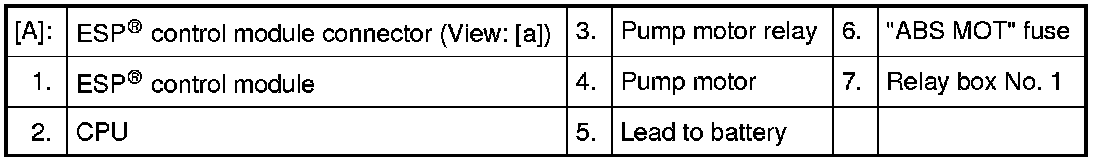

Circuit Diagram










DTC Troubleshooting


1. Was "ESP (R) System Check" performed?
YES
Go to Step 2.
NO
Go to ESP System Check ESP (R) System Check.
2. ESP (R) control module power supply circuit check
Confirm that ignition mode of keyless push start system is in "OFF".
Disconnect "E09" connector.
Check for proper connection to "E09-26" terminal.
If connection is OK, measure voltage between "E09-26" terminal and ground.
Is it 10 - 14 V?
YES
Go to Step 3.
NO
"WHT/BLU" circuit open.
3. ESP (R) control module ground circuit check
Measure resistance between each of "E09-14" and "E09-38" terminals and ground.
Is resistance less than 1 ?
YES
Substitute a known-good ESP (R) control module recheck.
NO
ESP (R) control module ground circuit open.
