C1075

DTC C1074 / C1075

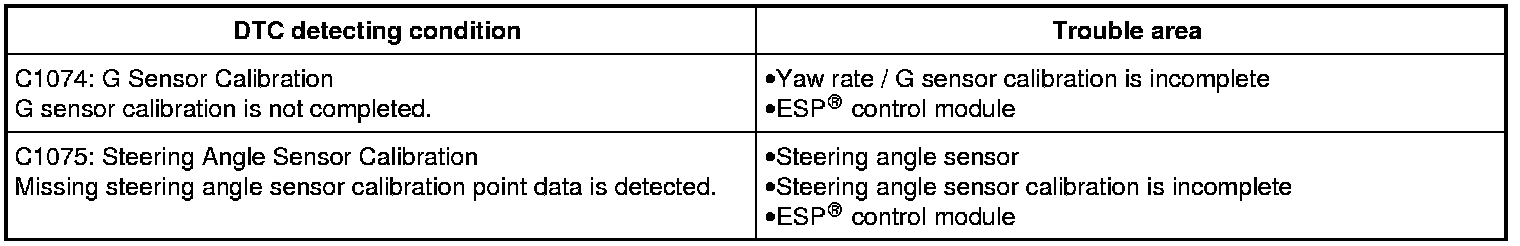

DTC Detecting Condition and Trouble Area






DTC Troubleshooting


1. Was "ESP (R) System Check" performed?
YES
Go to Step 2.
NO
Go to ESP System Check ESP (R) System Check.
2. DTC check
Perform DTC Check DTC Check.
Is there DTC(s) other than C1074 or C1075?
YES
Go to applicable DTC troubleshooting.
NO
Go to Step 3.
3. Sensor calibration
Calibrate all sensors. Programming and Relearning
Is sensor calibration completed?
YES
Go to Step 4.
NO
Replace steering angle sensor. Steering Angle Sensor Removal and Installation
4. Clear all DTC(s) and check DTC.
Is DTC C1074 and/or C1075 still detected?
YES
DTC C1074: Substitute a known-good ESP (R) control module and recheck DTC. ESP Hydraulic Unit / Control Module Assembly Removal and Installation
DTC C1075: Replace steering angle sensor and recheck DTC. Steering Angle Sensor Removal and Installation
NO
Calibration was incomplete.
