C1282

DTC C1282

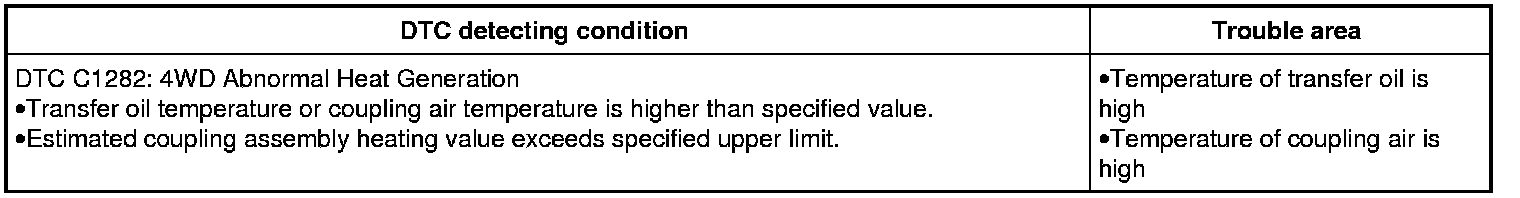

DTC Detecting Condition and Trouble Area






DTC Troubleshooting


1. Check DTC
Clear DTC.
Perform DTC confirmation procedure, and check DTC.
Is DTC C1282 still detected?
YES
Go to Step 2.
NO
End.
2. Parameter check 1
Connect SUZUKI scan tool to DLC with ignition mode of keyless push start system in "OFF".
Push engine switch to change ignition mode to "ON".
Check "Transfer Oil Temperature" displayed on SUZUKI scan tool.
Is maximum value or current value higher than 120 C (248 F)?
YES
Keep ignition mode of keyless push start system in "ON" until parameter reading of "Transfer Oil Temperature" falls below 120 C (248 F). Go to Step 3.
NO
Go to Step 3.
3. Parameter check 2
Check "4WD Unit Temperature" displayed on SUZUKI scan tool.
Is maximum value or current value higher than 80 C (176 F)?
YES
Keep ignition mode of keyless push start system in "ON" until parameter reading of "4WD Unit Temperature" falls below 80 C (176 F). Go to Step 4.
NO
Go to Step 4.
4. Check DTC
Clear DTC.
Perform DTC confirmation procedure, and check DTC.
Is DTC C1282 still detected?
YES
Keep ignition mode of keyless push start system in "ON" for 30 minutes.
NO
End.
