P0575

DTC P0575

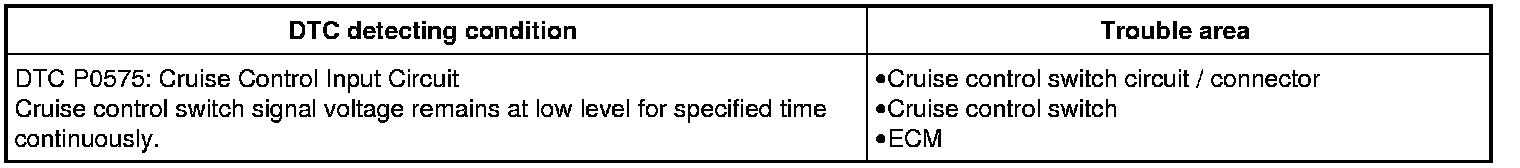

DTC Detecting Condition and Trouble Area

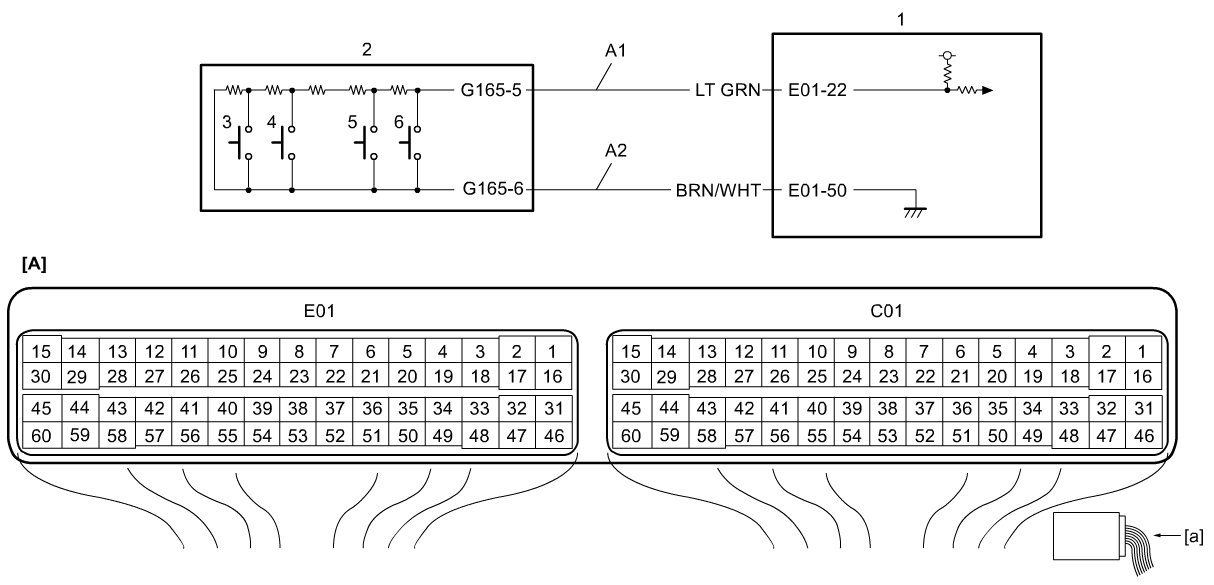

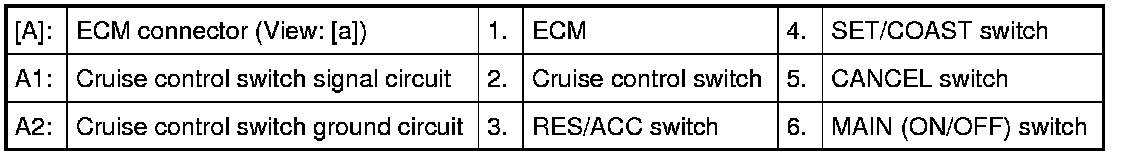

Circuit Diagram










DTC Troubleshooting


1. Parameter check
Connect SUZUKI scan tool to DLC with ignition mode of keyless push start system in "OFF".
Push engine switch to change ignition mode to "ON".
Check "Cruise CANCEL Switch", "Cruise RES/ACC Switch", "Cruise SET/COAST Switch" and "Cruise ON/OFF Switch" displayed on SUZUKI scan tool. Scan Tool Testing and Procedures
Are they in good condition?
YES
Intermittent trouble.
NO
Go to Step 2.
2. Cruise control switch circuit check
Confirm that ignition mode of keyless push start system is in "OFF".
Disconnect "C01", "E01" and "G165" connectors.
Check for proper terminal connection to "C01", "E01" and "G165" connectors.
If connections are OK, check the following points.
Resistance of "A1" and "A2" circuits: less than 3
Resistance between "A1" circuit and ground: infinity
Resistance between "A1" circuit terminal and other terminals at "G165" connector: infinity
Resistance between "A2" circuit terminal and other terminals at "G165" connector: infinity
Voltage of "A1" and "A2" circuits: 0 - 1 V (with ignition mode of keyless push start system in "ON")
Are they in good condition?
YES
Go to Step 3.
NO
Repair or replace defective wire harness.
3. Cruise control switch check
Check cruise control switch Service and Repair
Is it in good condition?
YES
Replace ECM and recheck DTC.
NO
Replace cruise control switch.
