P0826

DTC P0826

DTC Detecting Condition and Trouble Area

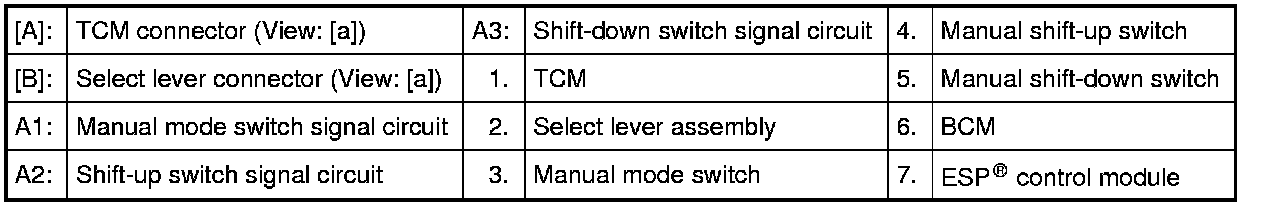

Circuit Diagram










DTC Confirmation Procedure

1) Push engine switch to change ignition mode to "ON".

DTC Troubleshooting


1. Was "CVT System Check" performed?
YES
Go to Step 2.
NO
Go to CVT System Check CVT System Check.
2. DTC check
Check DTC related to CAN communication.
Is there any CAN-DTC(s) detected?
YES
Go to troubleshooting for applicable DTC.
NO
Go to Step 3.
3. DTC check of BCM
Check DTC of BCM. DTC Check
Is there any DTC(s)?
YES
Go to troubleshooting for applicable DTC.
NO
Go to Step 4.
4. Shift switch circuit check
Confirm that ignition mode of keyless push start system is in "OFF".
Connect SUZUKI scan tool to DLC.
Push engine switch to change ignition mode to "ON".
Check that following items are normal condition by using SUZUKI scan tool, when shifting select lever ("P", "R", "N", "D") to each range. Scan Tool Testing and Procedures
Shift Down SW
Shift Up SW
Manual Mode SW
Are they in good condition?
YES
Check for intermittent trouble. Intermittent Connection and Poor Contact Inspection
NO
Go to Step 5.
5. Manual mode shift switch circuit check
Push engine switch to change ignition mode to "OFF".
Disconnect "E19", "E20" and "G102" connectors.
If connections are OK, check the following points.
Resistance between each of "A1", "A2" and "A3" circuits and ground: infinity
Resistance between each of "A1", "A2" and "A3" circuit terminals and each terminal at "G102" connector: infinity
Are they in good condition?
YES
Repair or replace defective wire harness.
NO
Go to Step 4.
6. Manual mode shift switch check
Check manual mode shift switch. Manual Mode Shift Switch Inspection
Is it in good condition?
YES
Substitute a known-good TCM and recheck DTC. Service and Repair
NO
Replace manual mode shift switch (select lever assembly). Select Lever Assembly Removal and Installation
