B0117

DTC B0117/45 Short to GND in Side Squib LH Circuit

DESCRIPTION

DTC Detecting Condition:

The side squib LH circuit consists of the center airbag sensor assembly and the front seat side airbag assembly LH (side squib LH).

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0117/45 is recorded when a short to ground is detected in the side squib LH circuit.

Wiring Diagram:

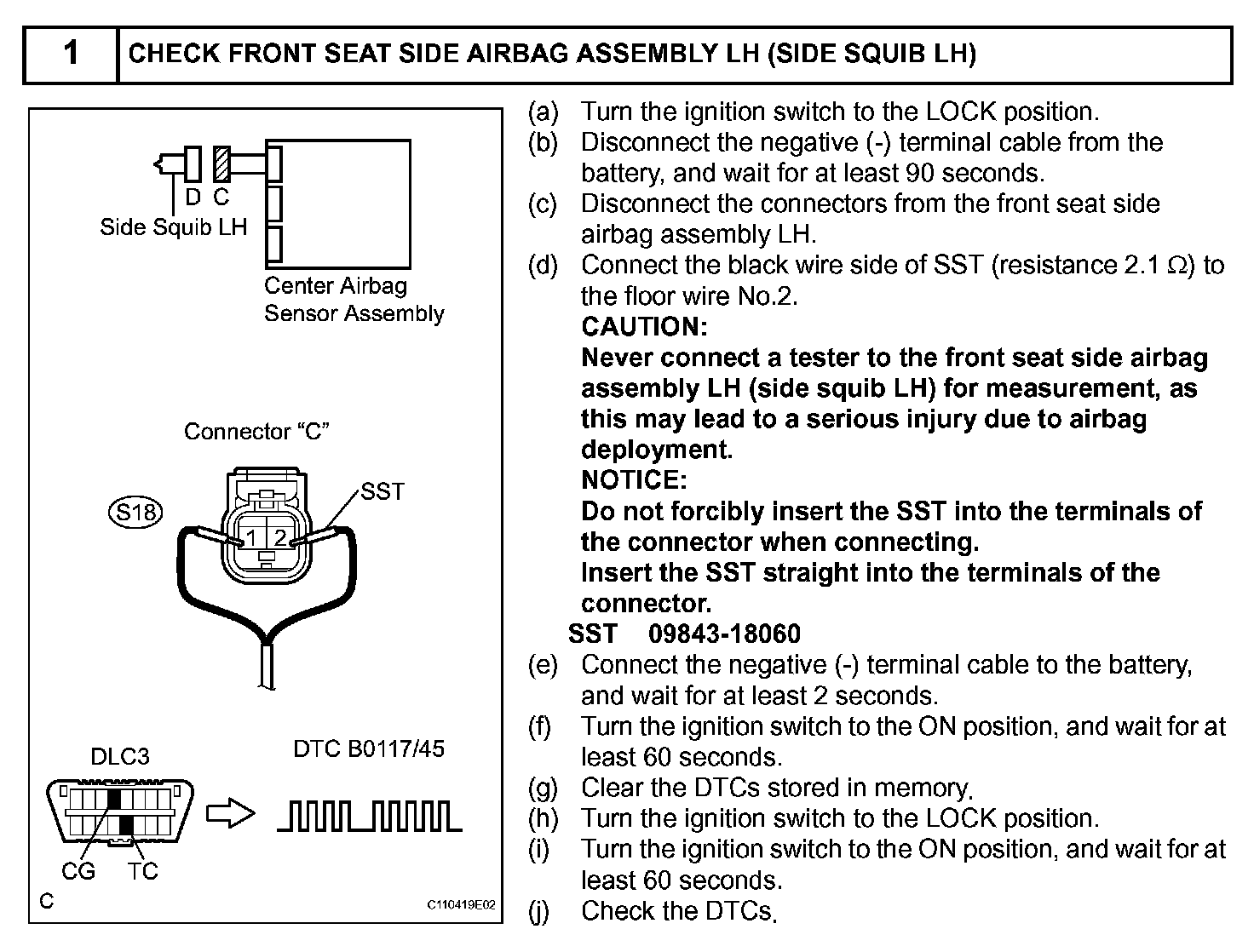

Step 1:

Step 1 (Continued)-3:

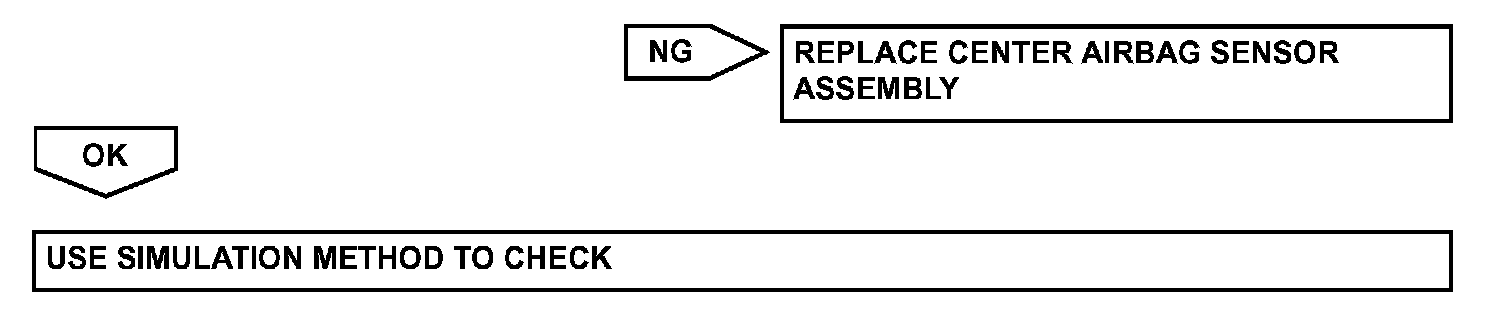

Step 3 (Continued):

INSPECTION PROCEDURE

HINT:
- Perform the simulation method by selecting "check mode" (signal check) with the intelligent tester.
- After selecting "check mode" (signal check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on a city or rough road.
