P050B
DTC P050B Cold Start Ignition Timing PerformanceDESCRIPTION
DTC Detection Condition:

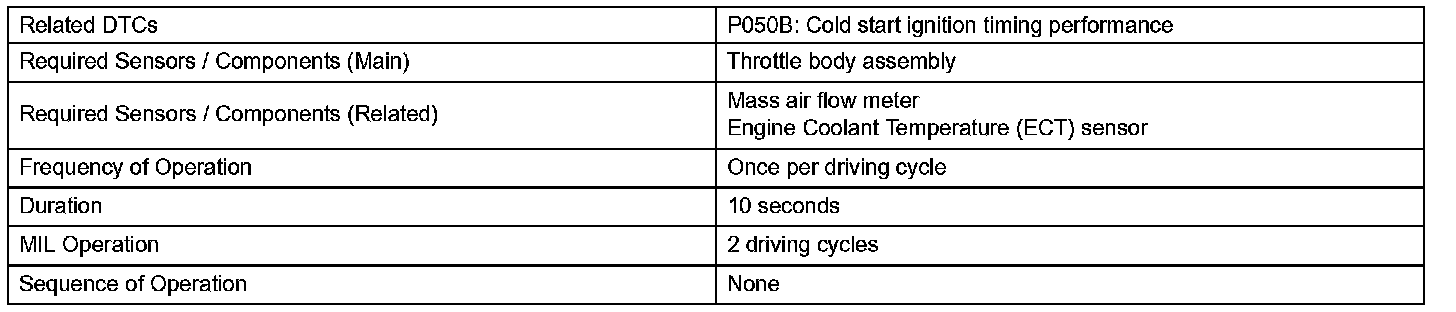

Monitor Strategy:

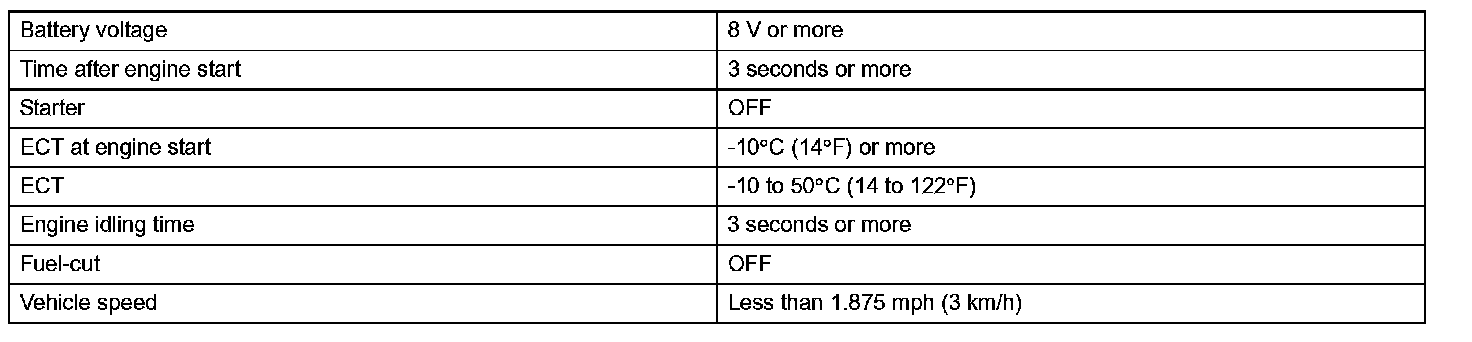

Typical Enabling Conditions:
Typical Malfunction Thresholds:
This monitor will run when the engine is started -10 to 50 °C (14 to 122 °F) of the engine coolant temperature. The DTC will set after the engine idling for 13 seconds (2 trip detection logic).
The DTC is designed to monitor the ignition timing at cold start. When the engine is started at lower than 50 °C (122 °F) of the engine coolant temperature, the ECM checks the ignition timing at the engine idling. If the ignition timing advances beyond the criteria within 10 seconds, the ECM interprets this as a malfunction. The MIL is illuminated and a DTC is set when the malfunction is detected in consecutive driving cycles (2 tip detection logic).
NOTE: When the negative battery terminal is disconnected during inspection or repairs, the ISC (Idle Speed Control) learned values are cleared. ISC learning is performed when the engine has been warmed up and idled for 5 minutes because this DTC cannot be set after the ISC learned values cleared.
Step 1:
Step 1(continued)-5:
Step 5(continued)-9:
Step 10-15:
INSPECTION PROCEDURE
HINT:

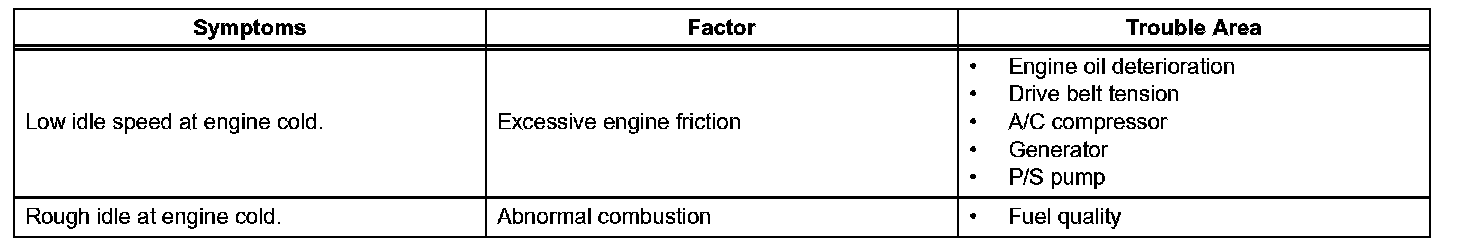

- DTC P050B may be set when the engine shows the symptom as listed. If necessary, check the trouble area as listed.
- Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
