Toyota Truck
>>
2007
>>
Highlander 4WD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

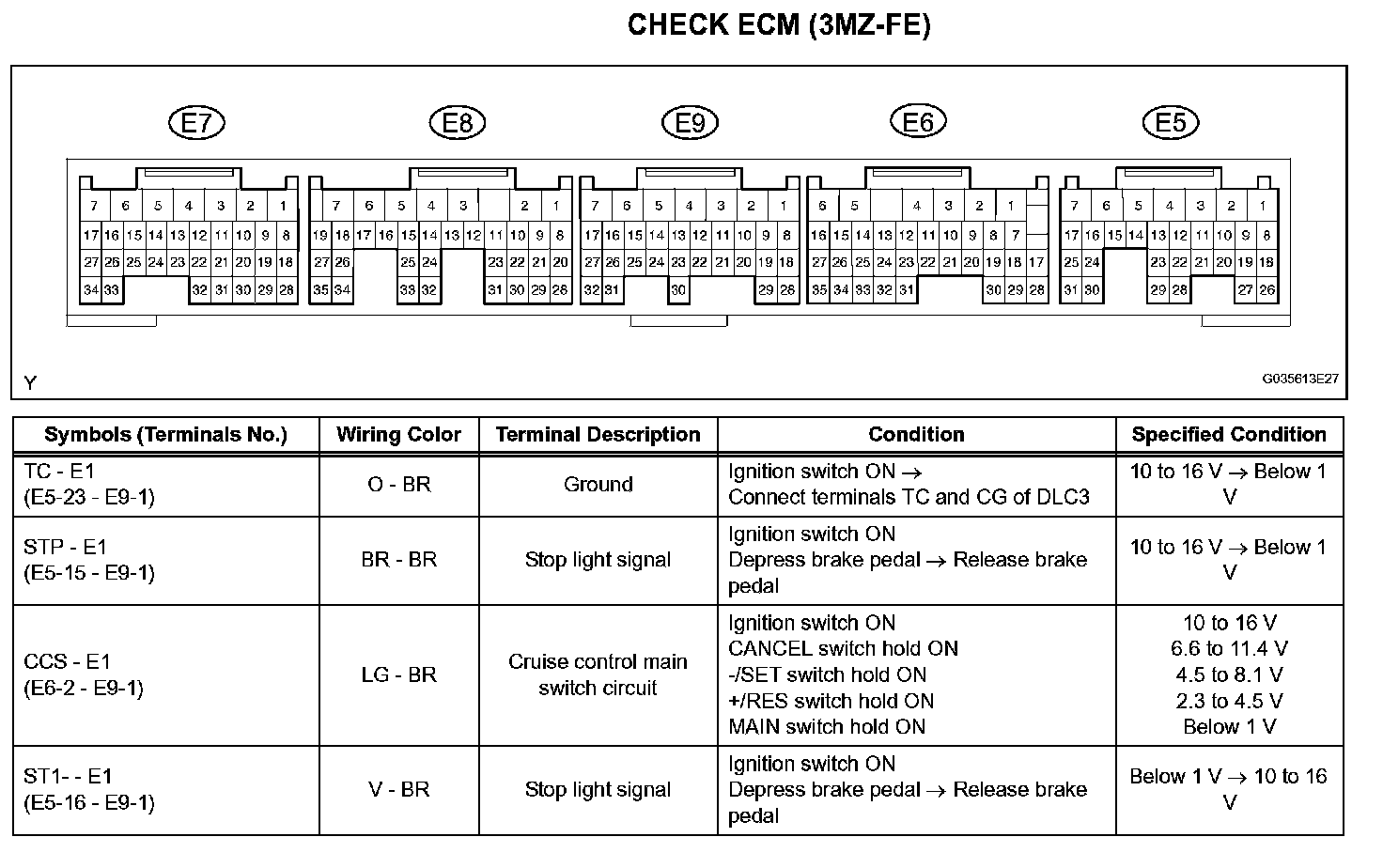

Terminals Of Control Module/Pinouts - Check ECM:
