Information Bus

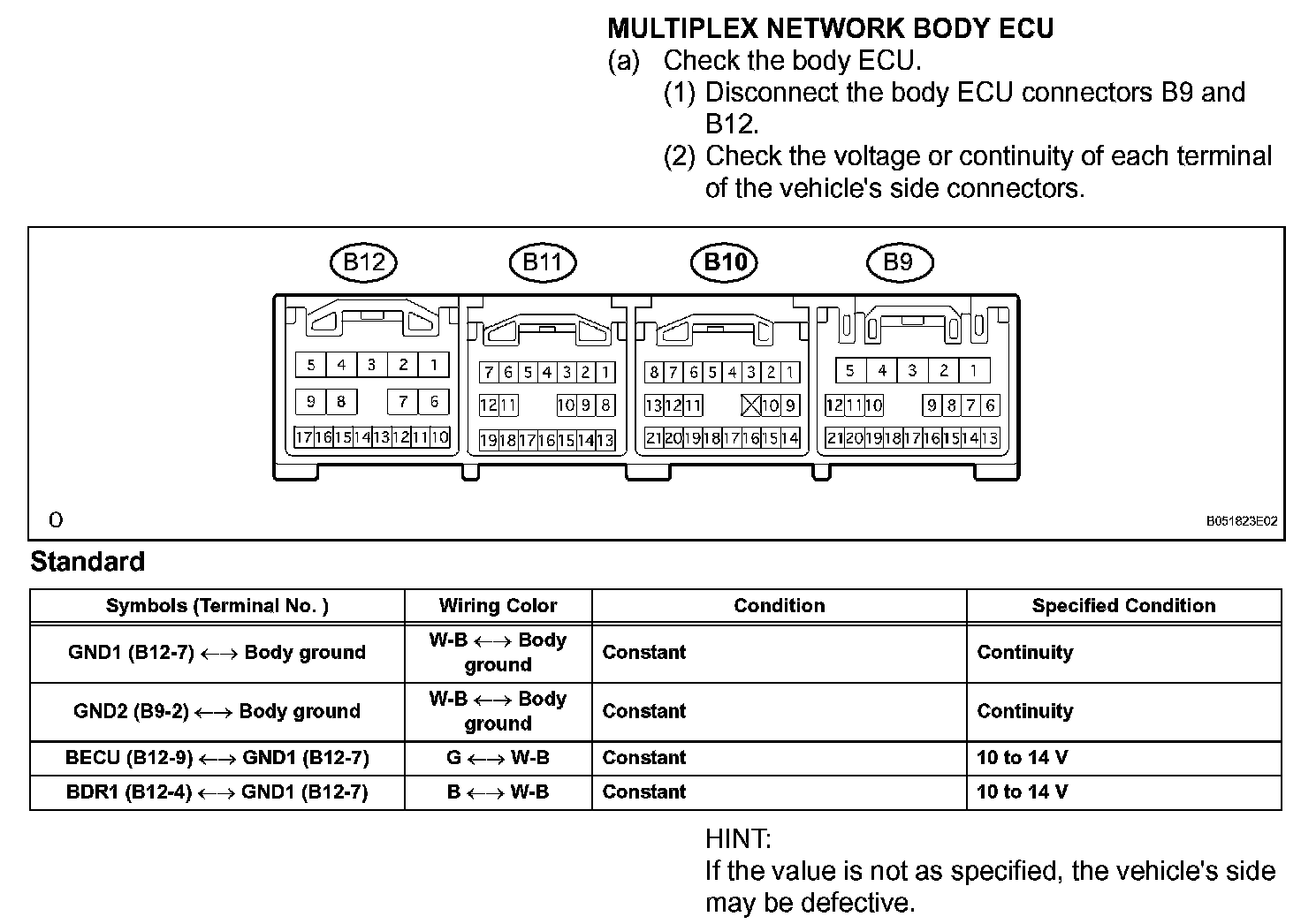

Terminals Of Control Module/Pinouts - Multiplex Network Body ECU:

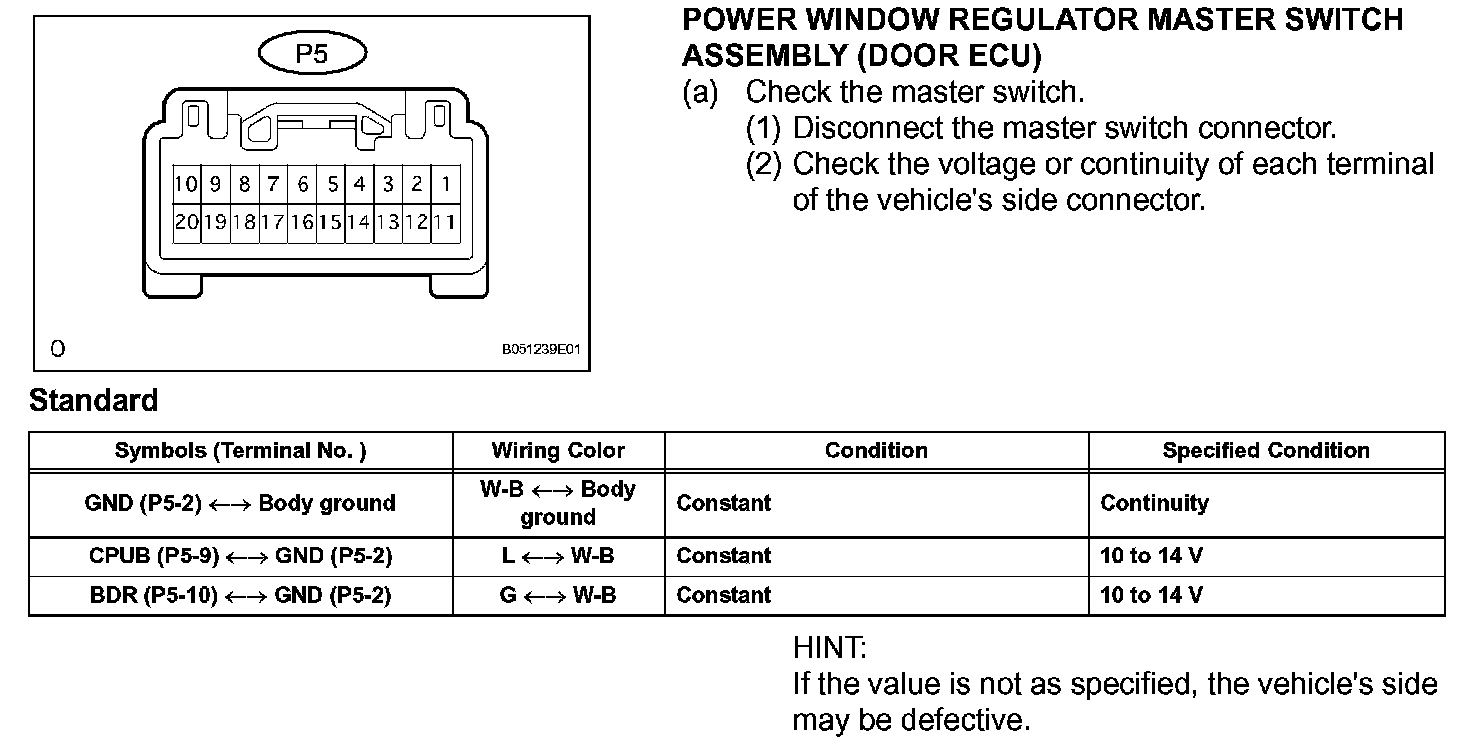

Terminals Of Control Module/Pinouts - Power Window Regulator Master Switch Assembly (Door ECU):

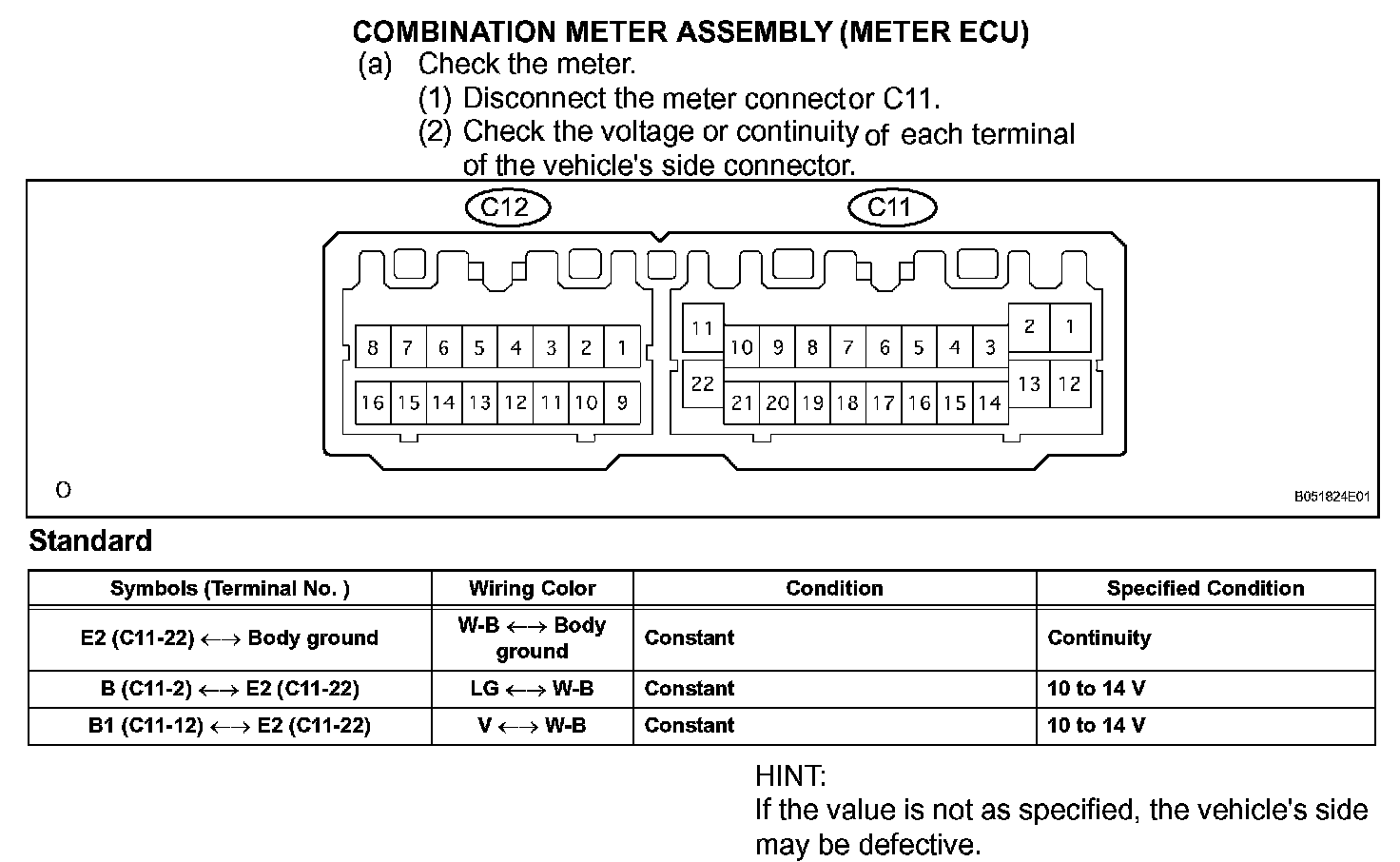

Terminals Of Control Module/Pinouts - Combination Meter Assembly (Meter ECU):

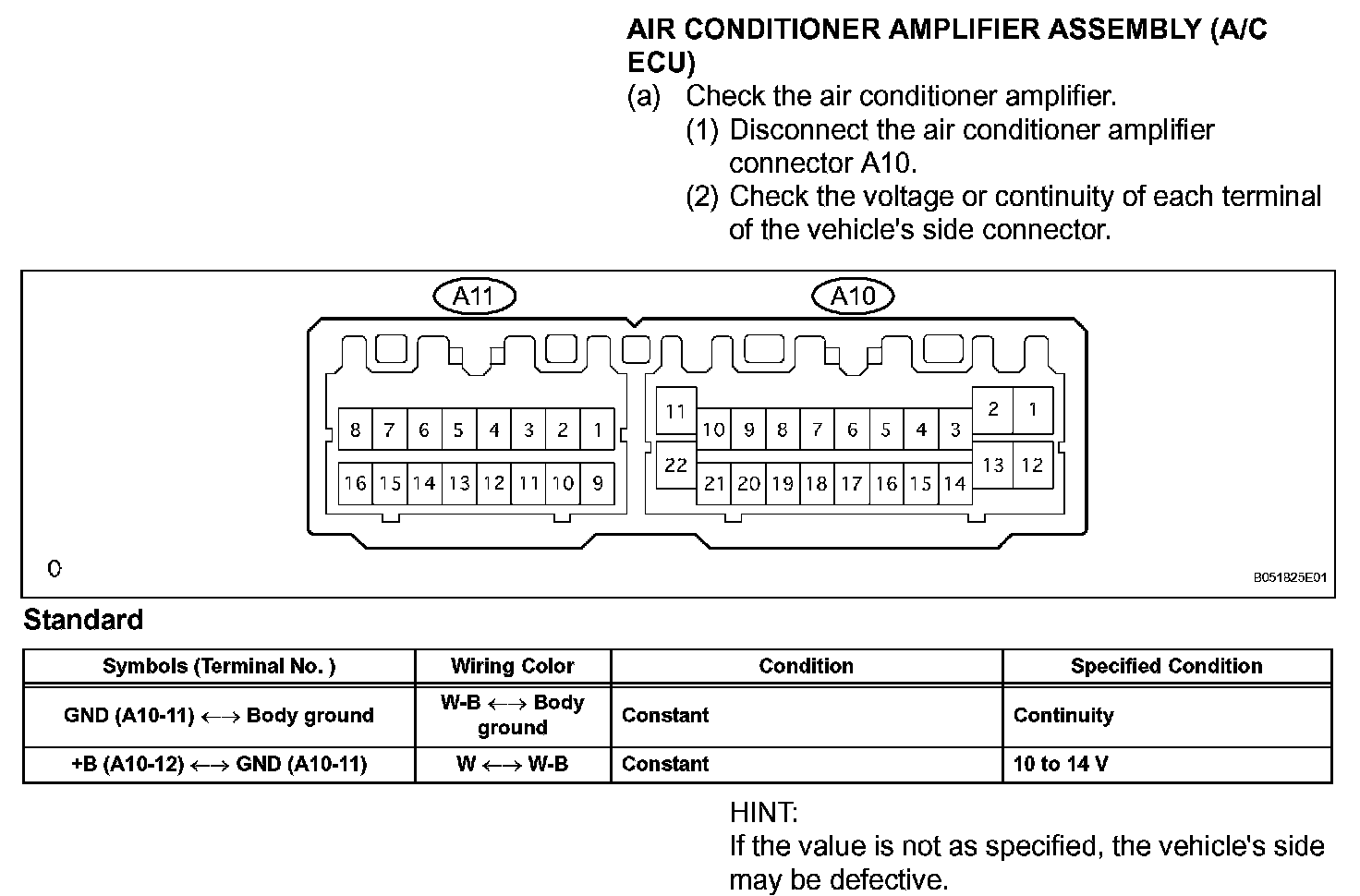

Terminals Of Control Module/Pinouts - Air Conditioner Amplifier Assembly (A/C ECU):

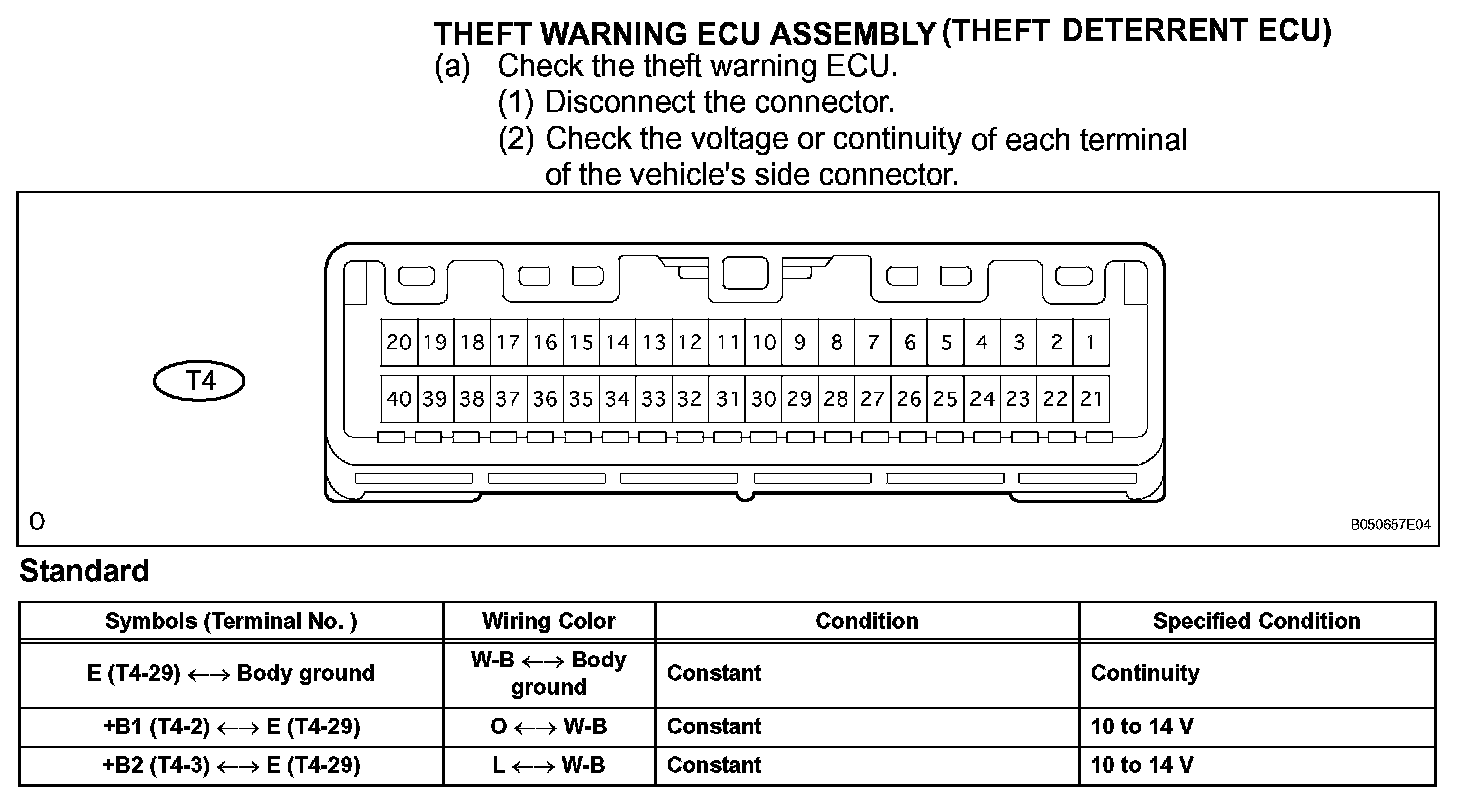

Terminals Of Control Module/Pinouts - Theft Warning ECU Assembly (Theft Deterrent ECU):

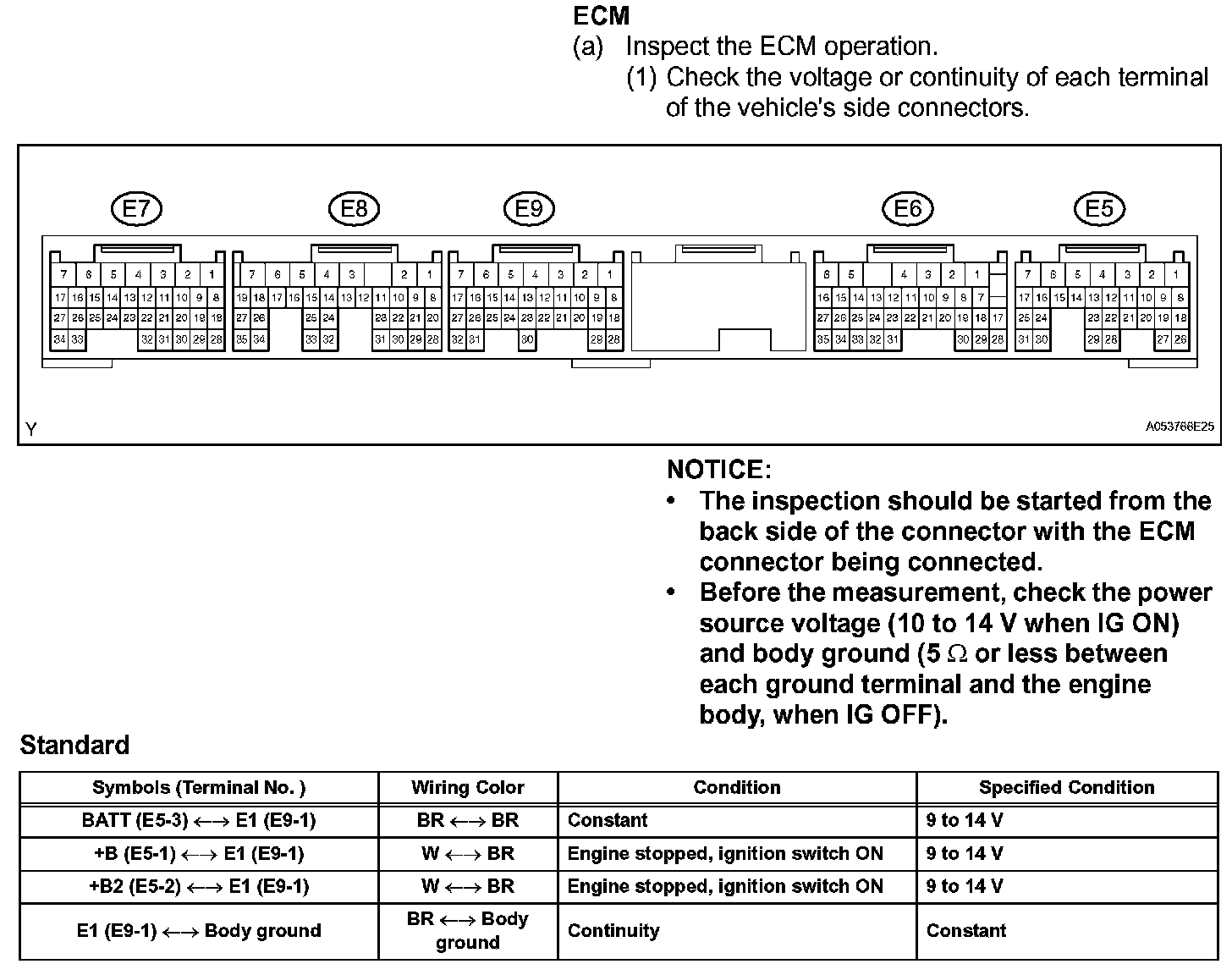

Terminals Of Control Module/Pinouts - ECM:

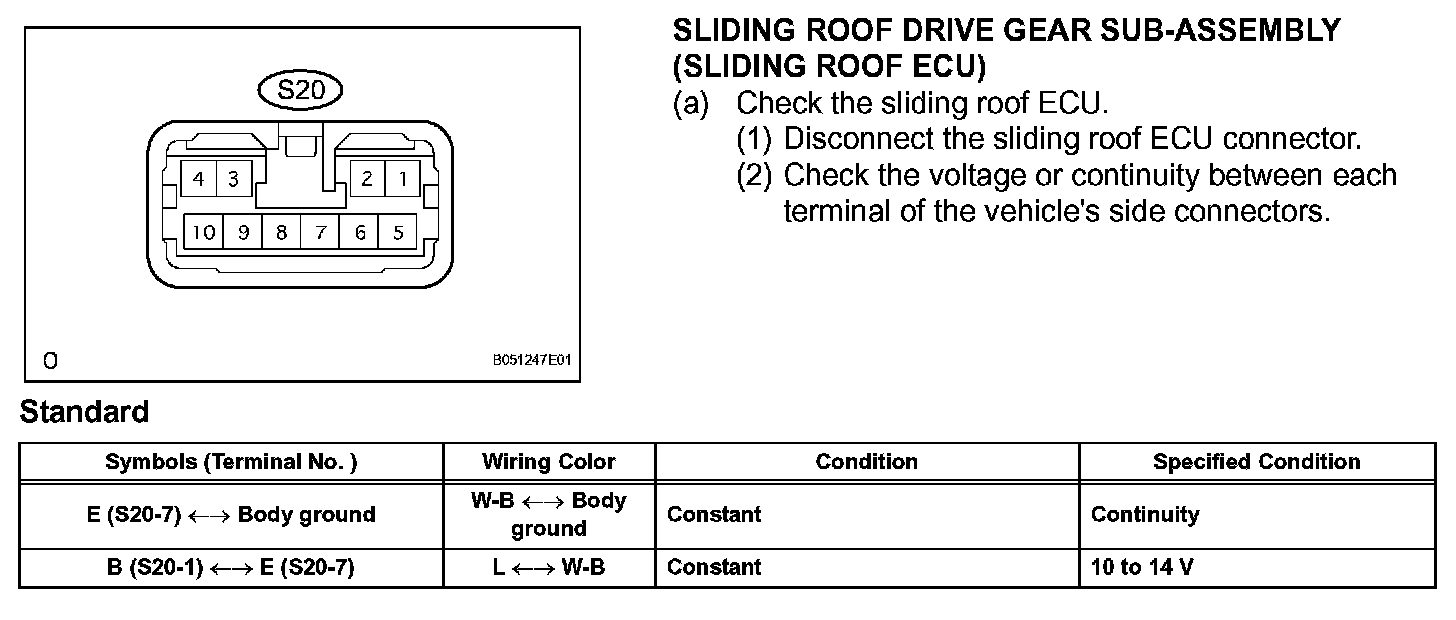

Terminals Of Control Module/Pinouts - Sliding Roof Gear Sub-Assembly (Sliding Roof ECU):
