License Plate Lamp: Service and Repair

License Plate Light Assembly:

License Plate Light Assembly:

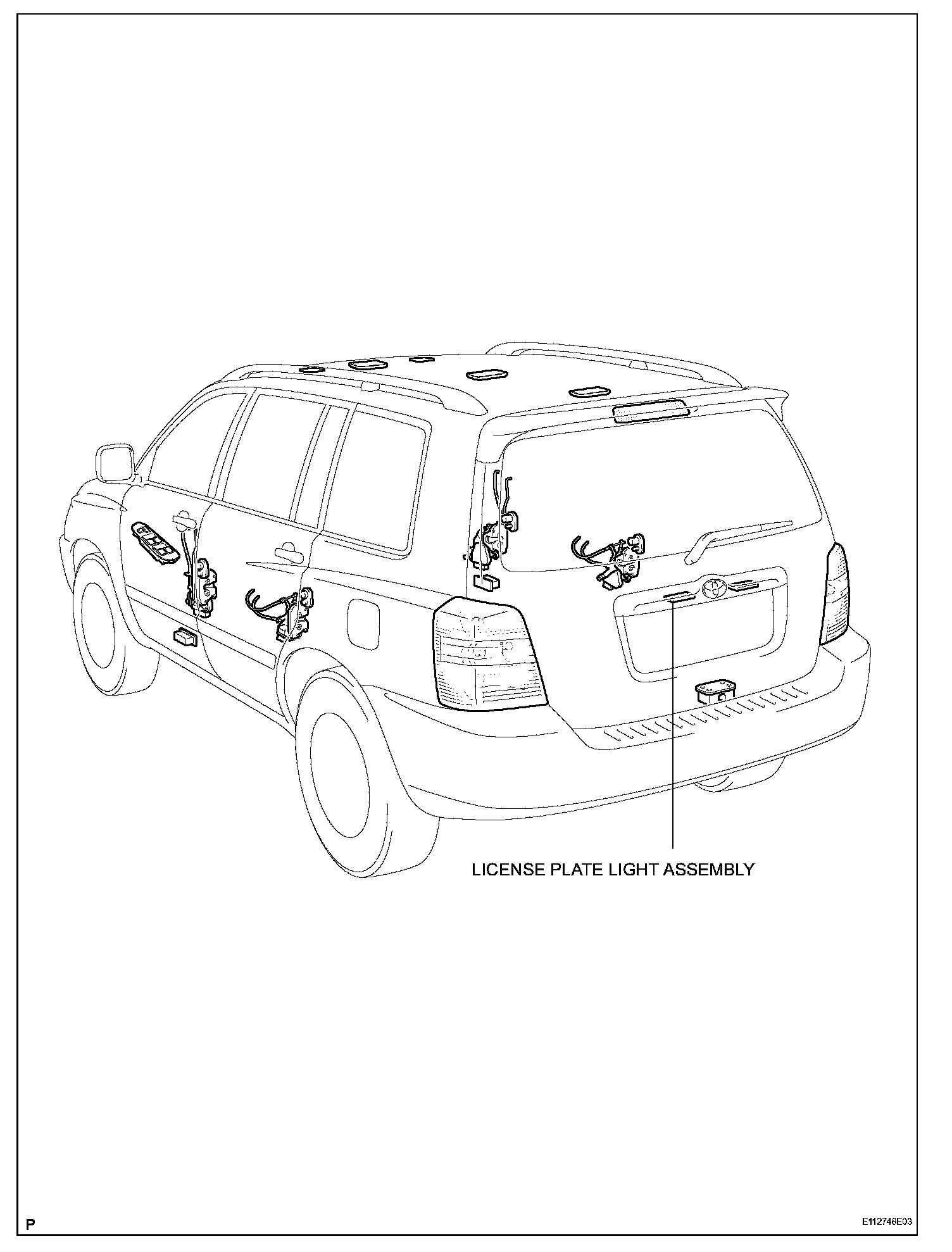

LICENSE PLATE LIGHT ASSEMBLY

REMOVAL

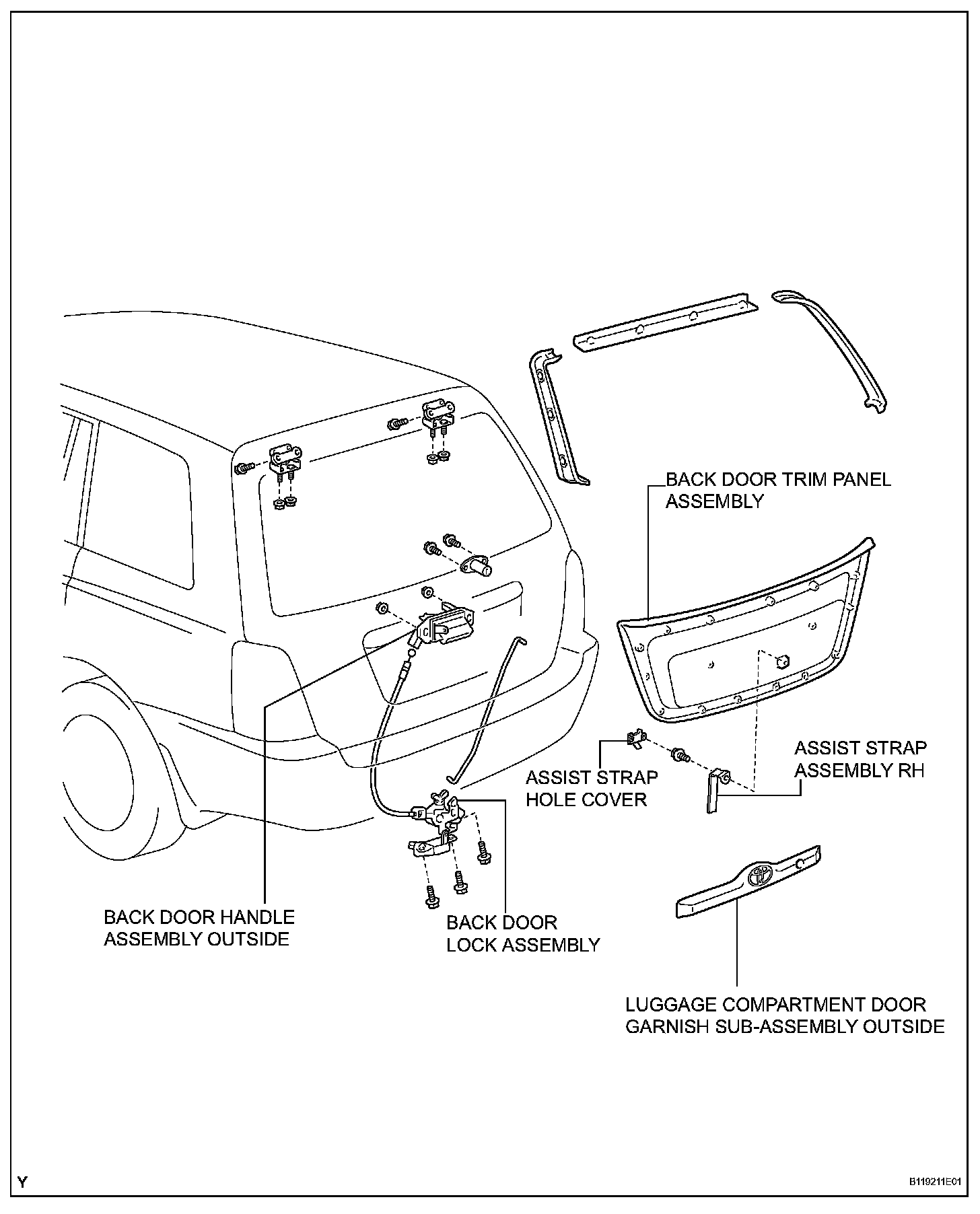

1. REMOVE ASSIST STRAP HOLE COVER
2. REMOVE ASSIST STRAP ASSEMBLY RH
3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY
4. REMOVE BACK DOOR LOCK ASSEMBLY
5. REMOVE BACK DOOR HANDLE ASSEMBLY OUTSIDE
6. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE




7. REMOVE LICENSE PLATE LIGHT ASSEMBLY

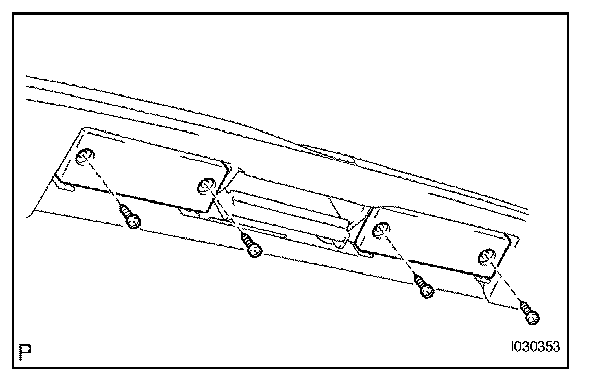

a. Remove the 4 screws and the 2 license plate light lenses.
b. Remove the license plate light assembly from the luggage compartment door garnish sub-assembly outside

INSTALLATION

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY
2. INSTALL LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE
3. INSTALL BACK DOOR HANDLE ASSEMBLY OUTSIDE
4. INSTALL BACK DOOR LOCK ASSEMBLY
5. INSTALL BACK DOOR TRIM PANEL ASSEMBLY
6. INSTALL ASSIST STRAP ASSEMBLY RH
7. INSTALL ASSIST STRAP HOLE COVER
