Trailer Lighting Relay: Testing and Inspection

ON-VEHICLE INSPECTION







1. INSPECT TOWING CONVERTER

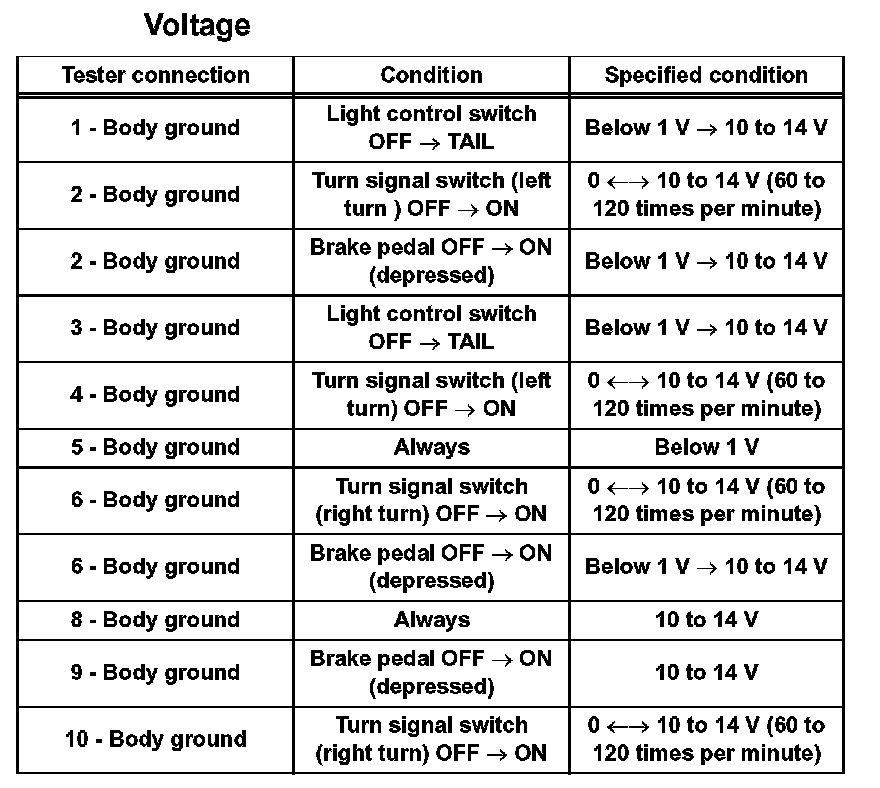

a. Measure the voltage according to the value(s) in the table.
If the result is not as specified, the towing converter may have a malfunction.
