Vanity Lamp: Testing and Inspection

INSPECTION




1. INSPECT VANITY LIGHT ASSEMBLY

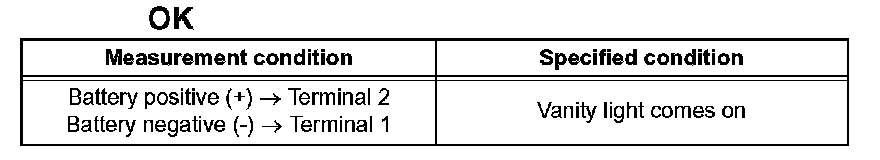

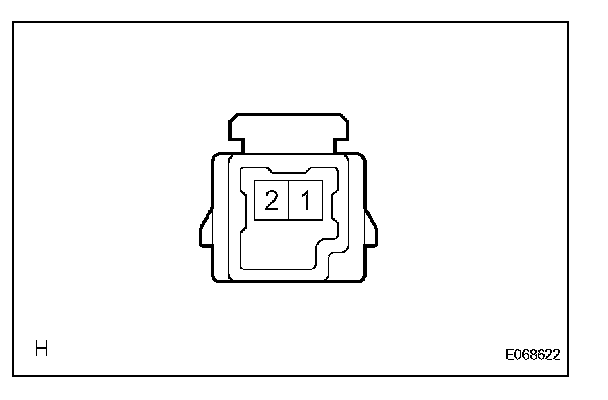

a. Apply battery voltage to the vanity light assembly connector.




b. Check that the vanity light comes on.
If the result is not as specified, replace the light assembly.
