Maintenance Indicator Reset

OIL MAINTENANCE INDICATOR RESETTING PROCEDURE

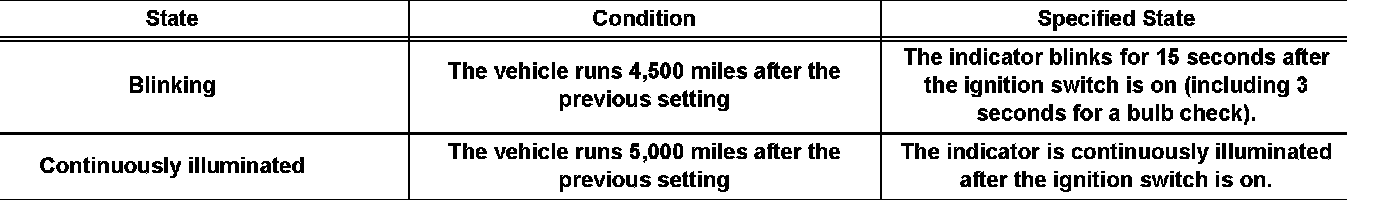

Indicator Condition
(a) Set the display window to ODO.
(b) Turn the ignition switch off.
(c) Pressing the reset switch turn the ignition switch to the ON position (keep pressing for at least 5 seconds).
(d) Reset procedure is completed.

HINT:
- If the ignition switch is turned off during the reset procedure reset mode is canceled.
- If the reset switch is pressed off during the reset procedure reset mode is canceled and the display shows the condition prior to the reset procedure.

Navigation Maintenance Item Data (If equipped)

This system has a function which informs you of the time to replace certain parts or components as well as other information shown on the screen. When the system begins operating after reaching either the information items date or driving distance, the "information" screen will be displayed.

To avoid seeing the "information" screen again, touch the "Do not display this message again" switch.

Setting Maintenance Information

1. Push the "INFO" button to display the "Information Menu" screen, and then touch the "Maintenance" switch.

2. Touch your desired icon and input the conditions.

Date: Input the next maintenance date.

Distance: Input the driving distance until the next maintenance check. You can input up to five digits for the driving distance.

When you touch the "Personal Event" switch on the "Maintenance" screen, the screen changes to the "Personal Event" screen. Touch the keys to input your desired name and then input the conditions.


After you input the information, touch the "OK" switch. The screen returns to the "Maintenance" screen. The icon color will change to green after the date and driving distance are input. The icon color will change to orange when your vehicle needs to be serviced. The following switches appear on the "Maintenance" screen.

1. Delete all: Cancel all conditions which have been input.

2. Reset all: Reset all items which satisfy either condition.

Touch the "OFF" switch on the "Maintenance" screen, and the "Information" screen will no longer be displayed.

Note:

- For scheduled maintenance information, please refer to the Scheduled maintenance guide or Owners manual supplement.

- Depending on your driving or the road conditions, the system may have a time-lag between the data which has been input and the actual date and driving distance.
