Multiple Junction Connector: Locations

EA1 - EB2, EA - EH:

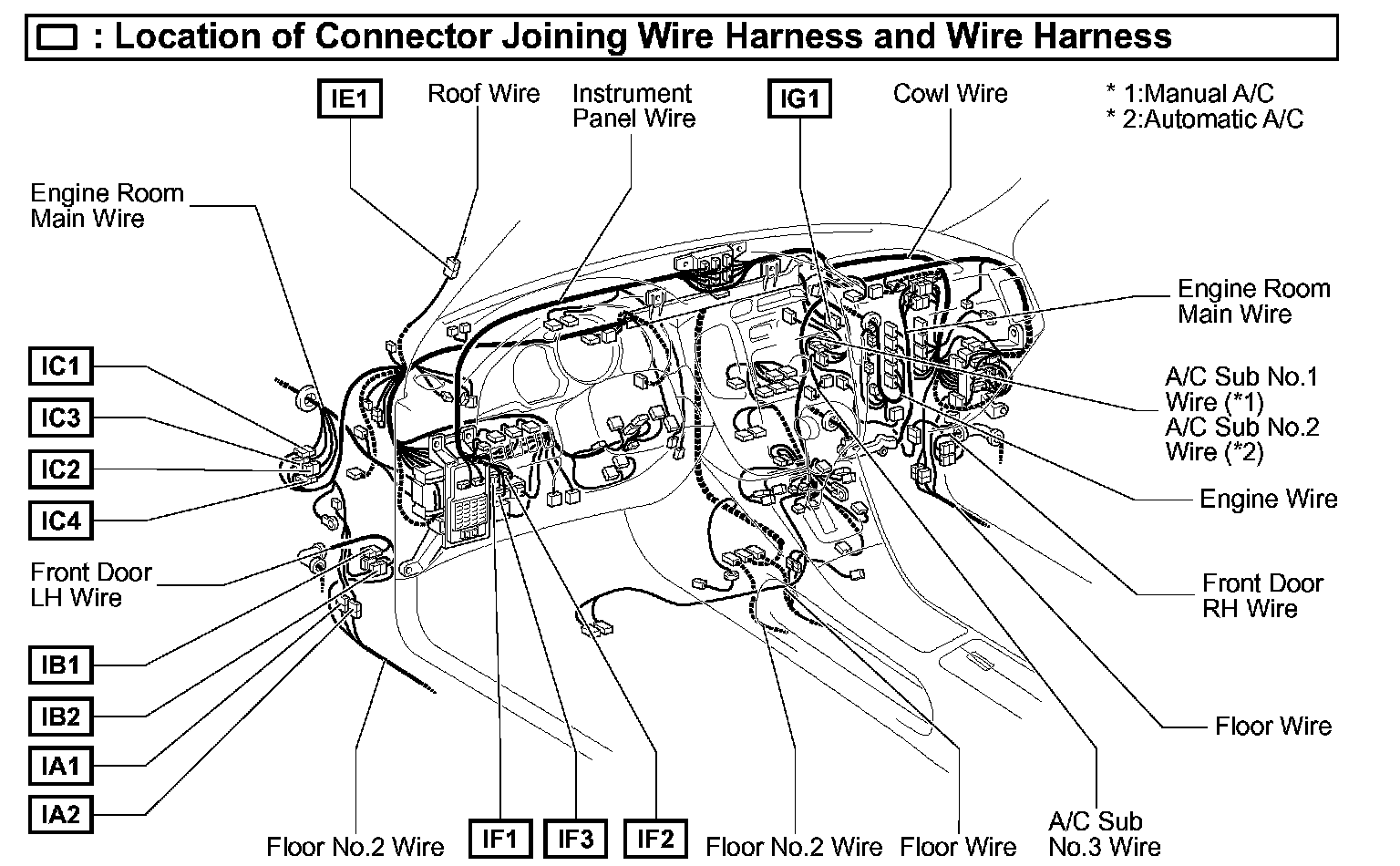

IA1 - IG1:



IH1 - IS1:



BB1 - BK2, BA - BF:

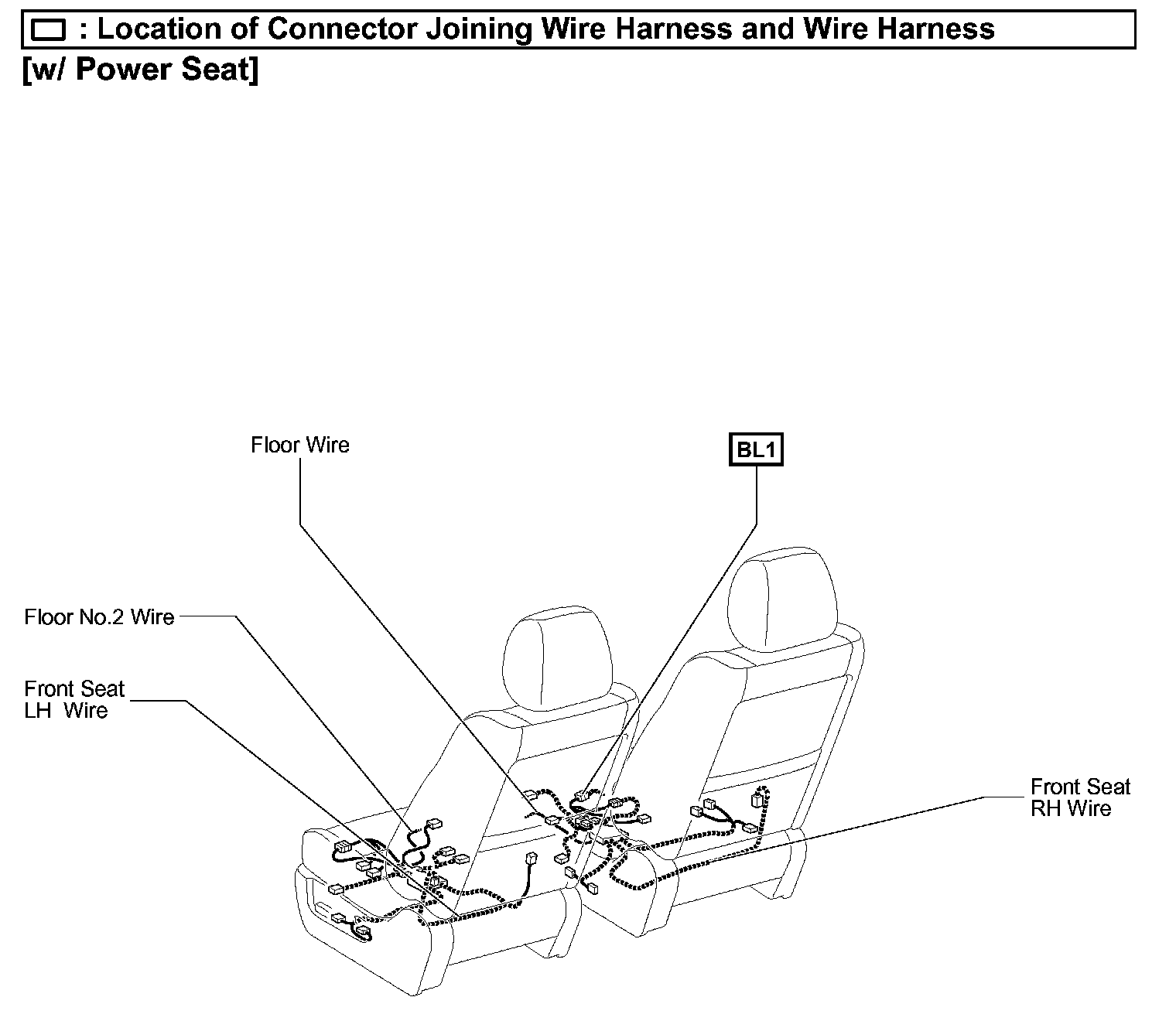

BL1:

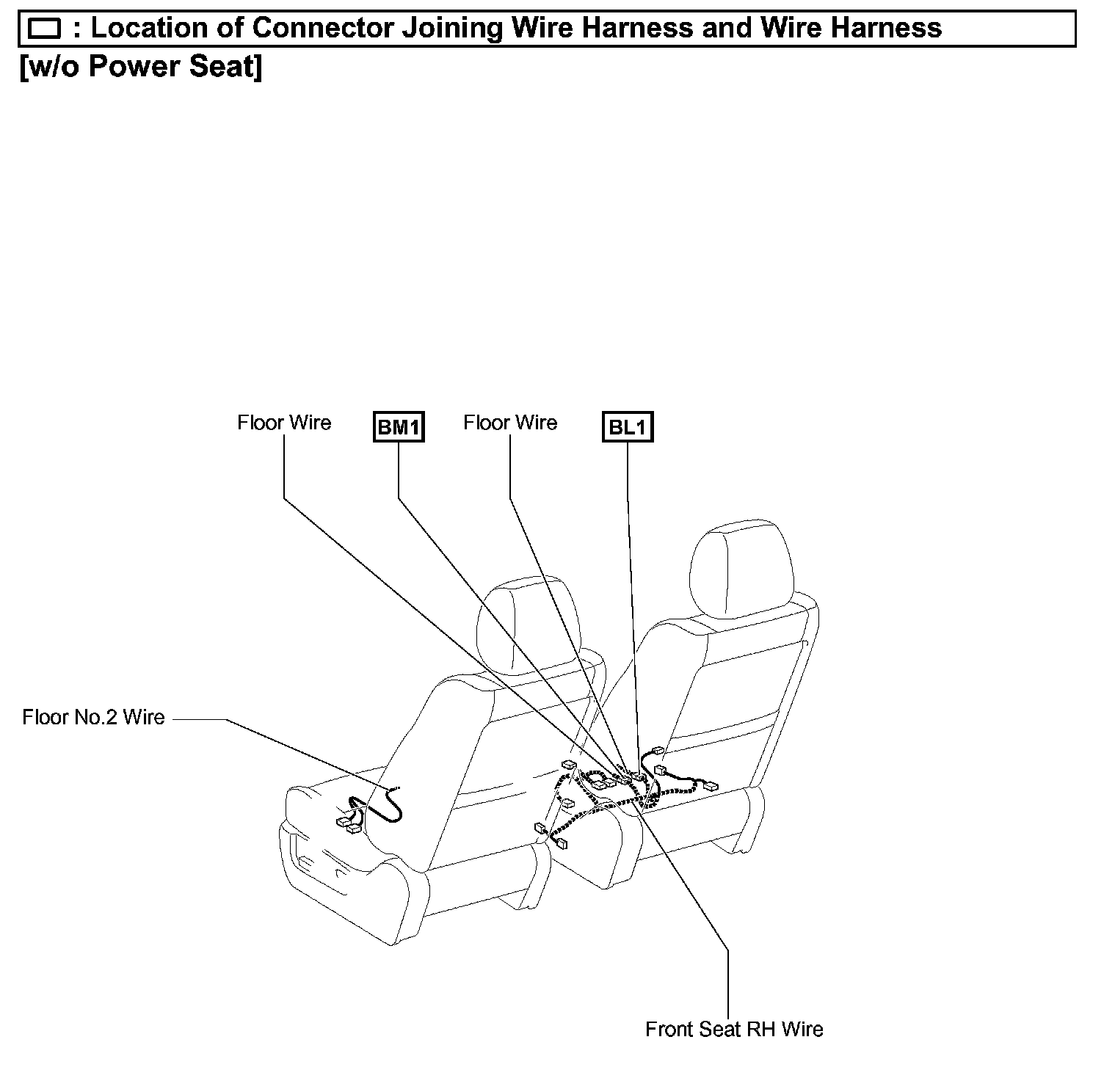

BM1 - BL1:
