Canada - Headlight - Headlight Lens Discoloration

Bulletin
TSB2993

Issue Date
April 16, 2008

Market
Canada

Title
Headlight Lens Discolouration

Component
BODY COMPONENTS

Models
'04-'07 Highlander, '06-'07 Highlander HV

INTRODUCTION:

Some 2004 - 2007 model year Highlander or 2006 - 2007 model year Highlander HV vehicles may exhibit a condition where the headlight lens cover and/or headlight bulb is discoloured. Updated headlight assemblies have been developed to address this condition. The updated headlight assemblies have cosmetic changes, so it is recommended to replace both the left and right assemblies together.






APPLICABLE VEHICLES:

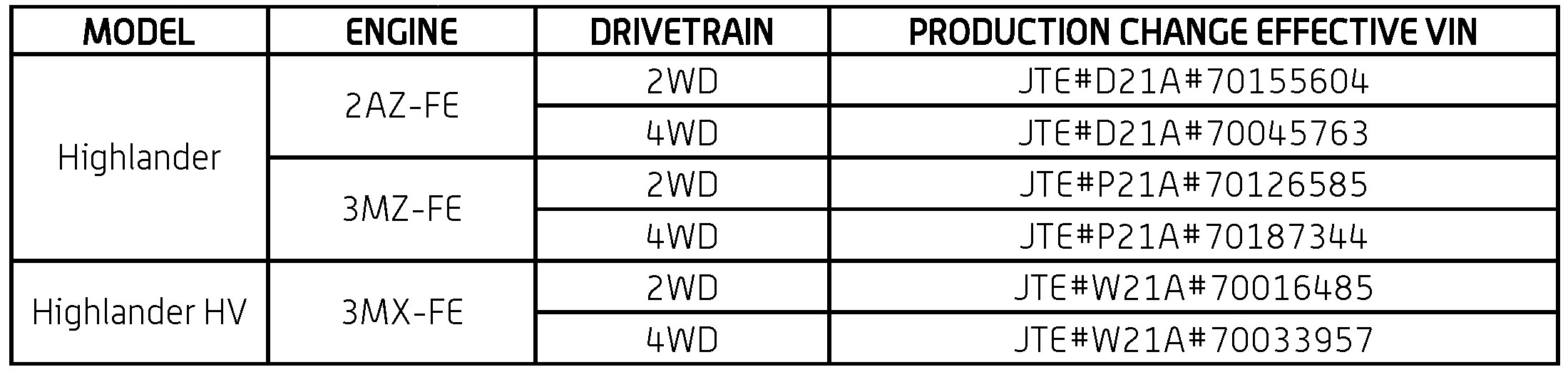

PRODUCTION CHANCE INFORMATION:







This TSB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

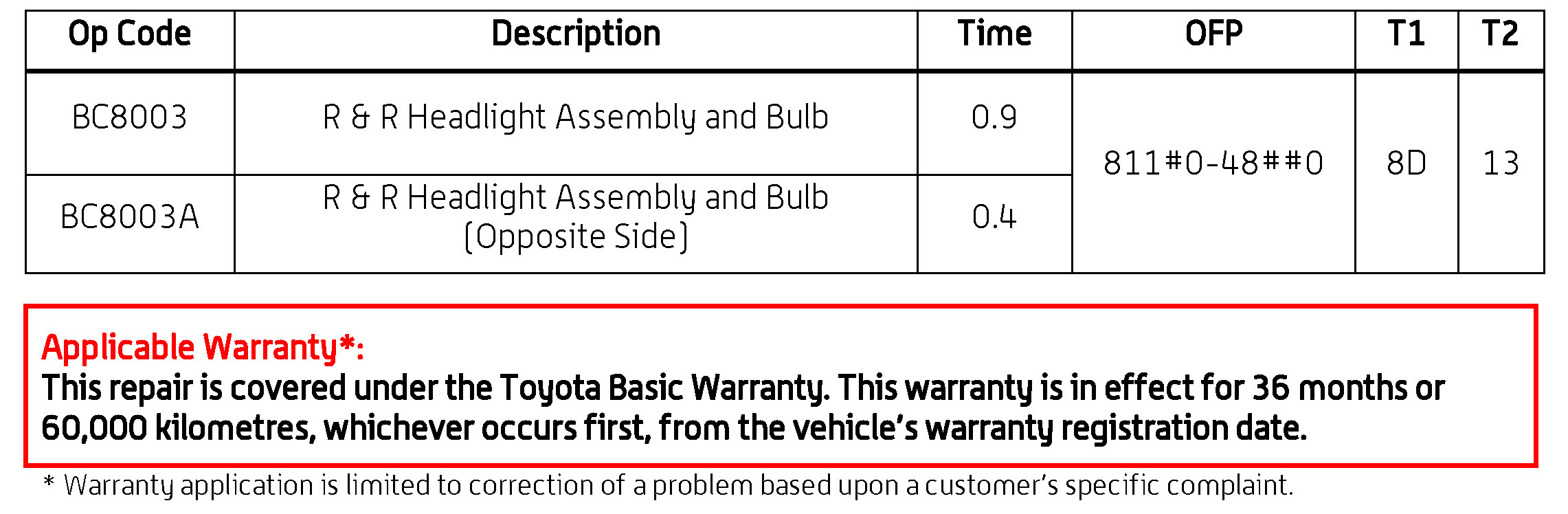

WARRANTY:






PARTS INFORMATION:

NOTE
For consistent appearance of the headlights, it is recommended to replace BOTH LH and RH assemblies at the same time.

REPAIR PROCEDURE:

CAUTION
Wait at LEAST 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretension activation.

Remove the left and right headlight assemblies and bulbs and replace with NEW headlight assemblies and bulbs.

Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Highlander
- Year: 2004 or 2005
- Service Category: Vehicle Exterior
- Section: Lighting [ext]
- Keyword: Headlamp Assy: Overhaul

- Model: Highlander or Highlander HV
- Year: 2006 or 2007
- Service Category: Vehicle Exterior
- Section: Lighting [ext]
- Keyword: Lighting: Headlight Assembly: Removal and Installation

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
