Differential Assembly: Tools and Equipment

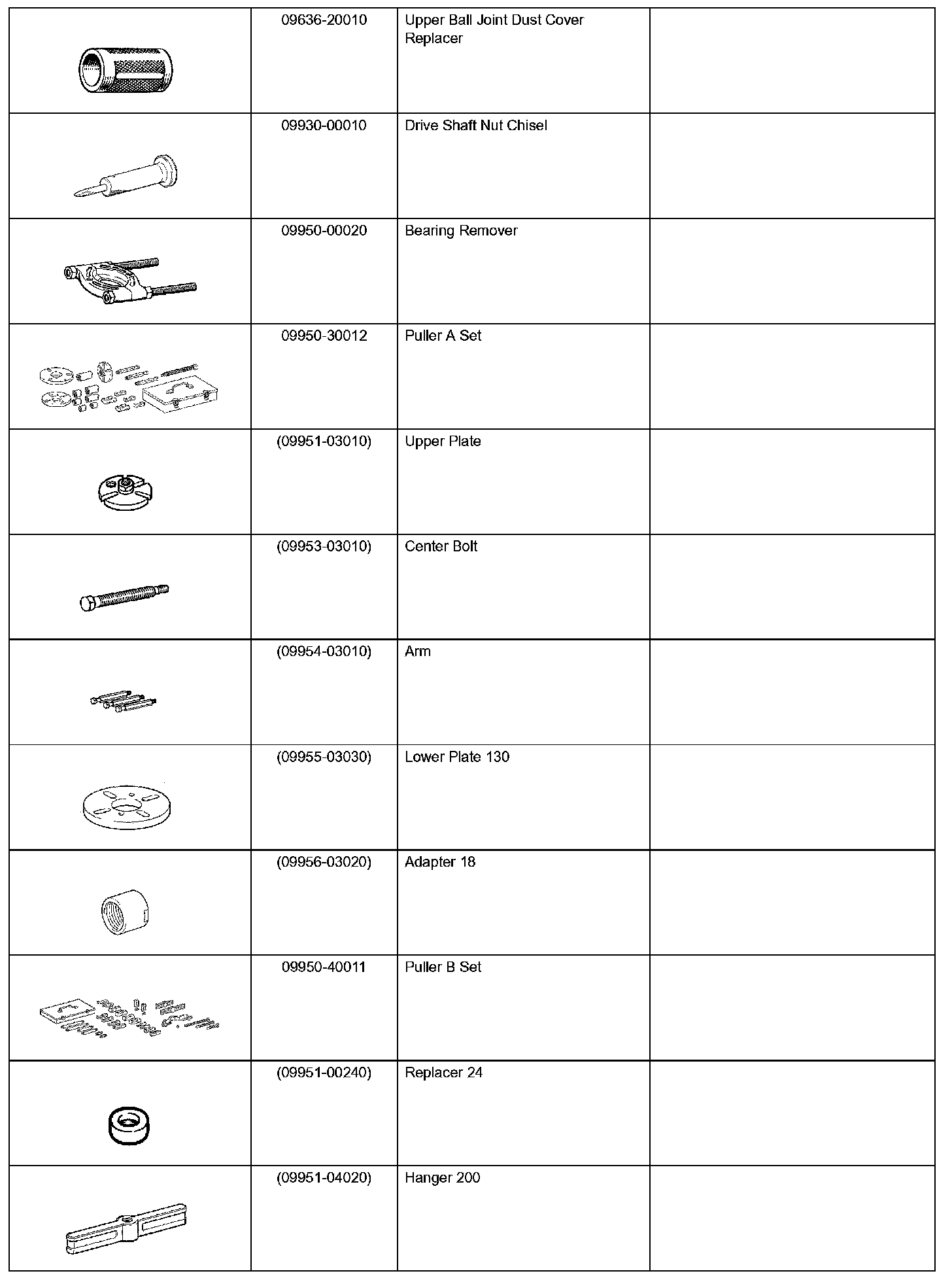

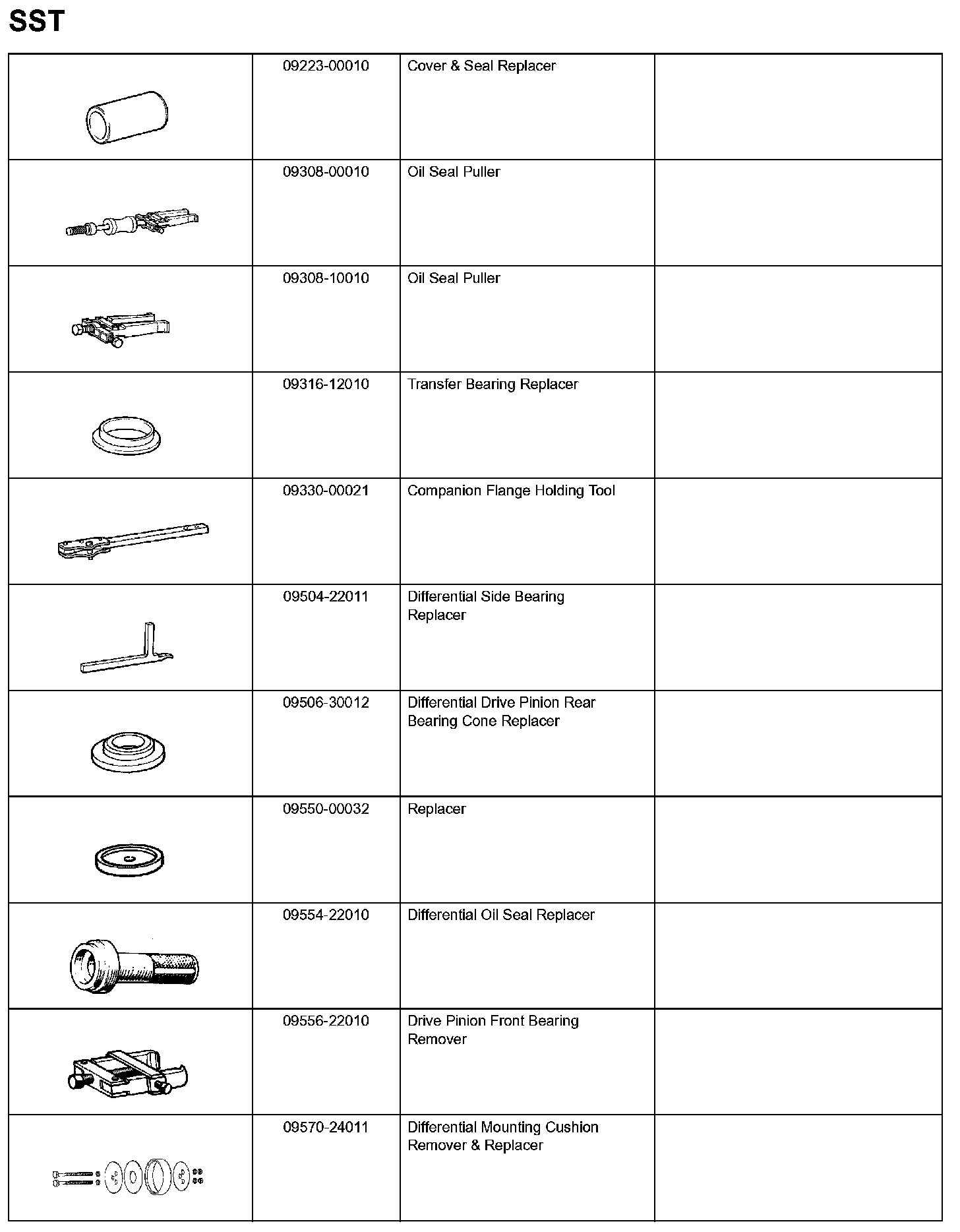

Differential - SST Part 1:

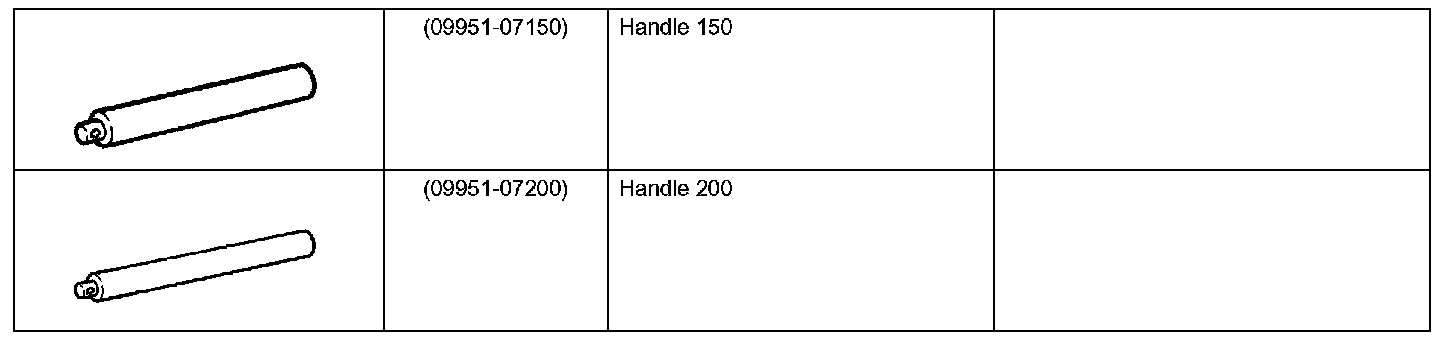

Differential - SST Part 2:

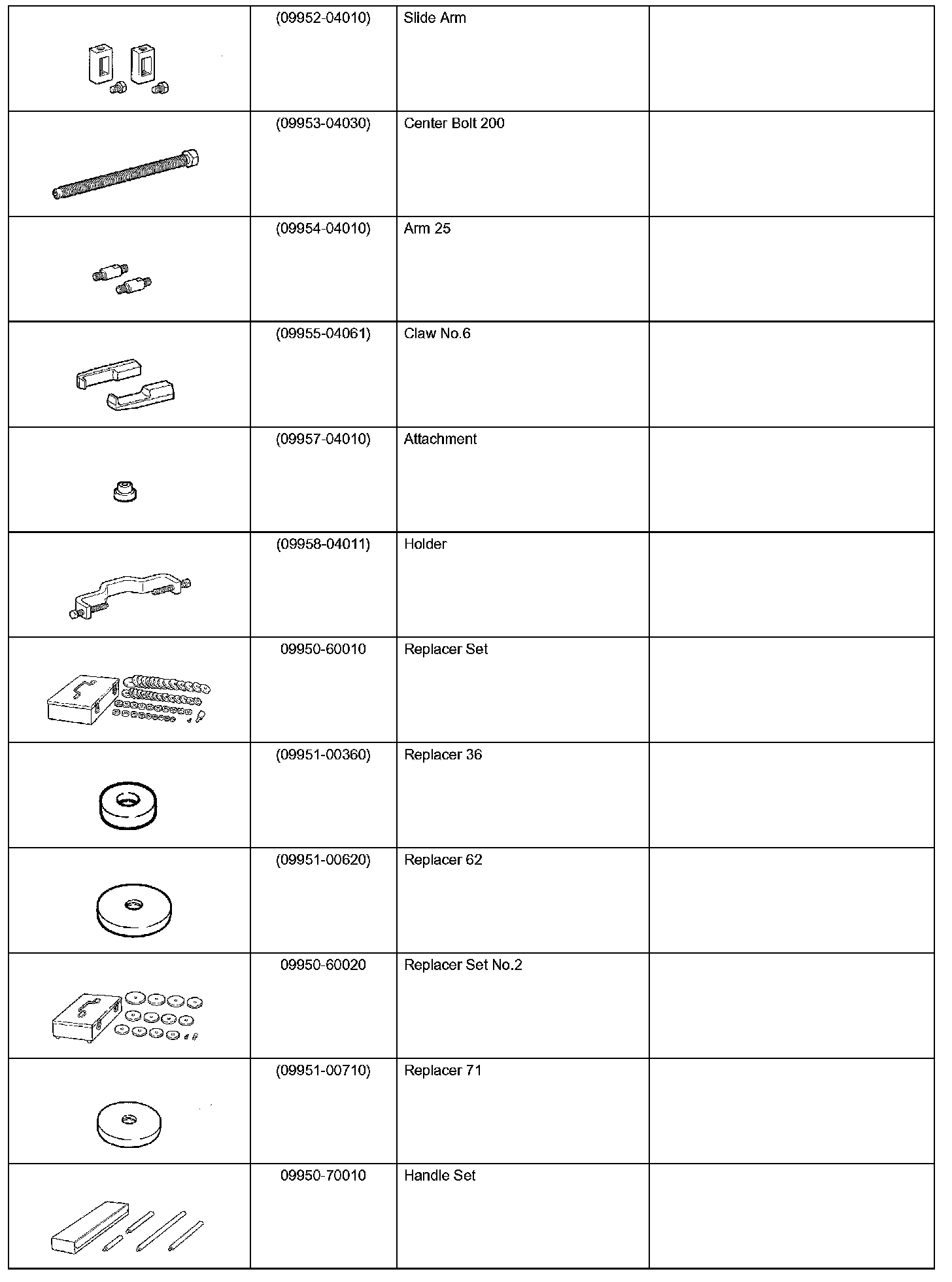

Differential - SST Part 3:



Differential - SST Part 4:

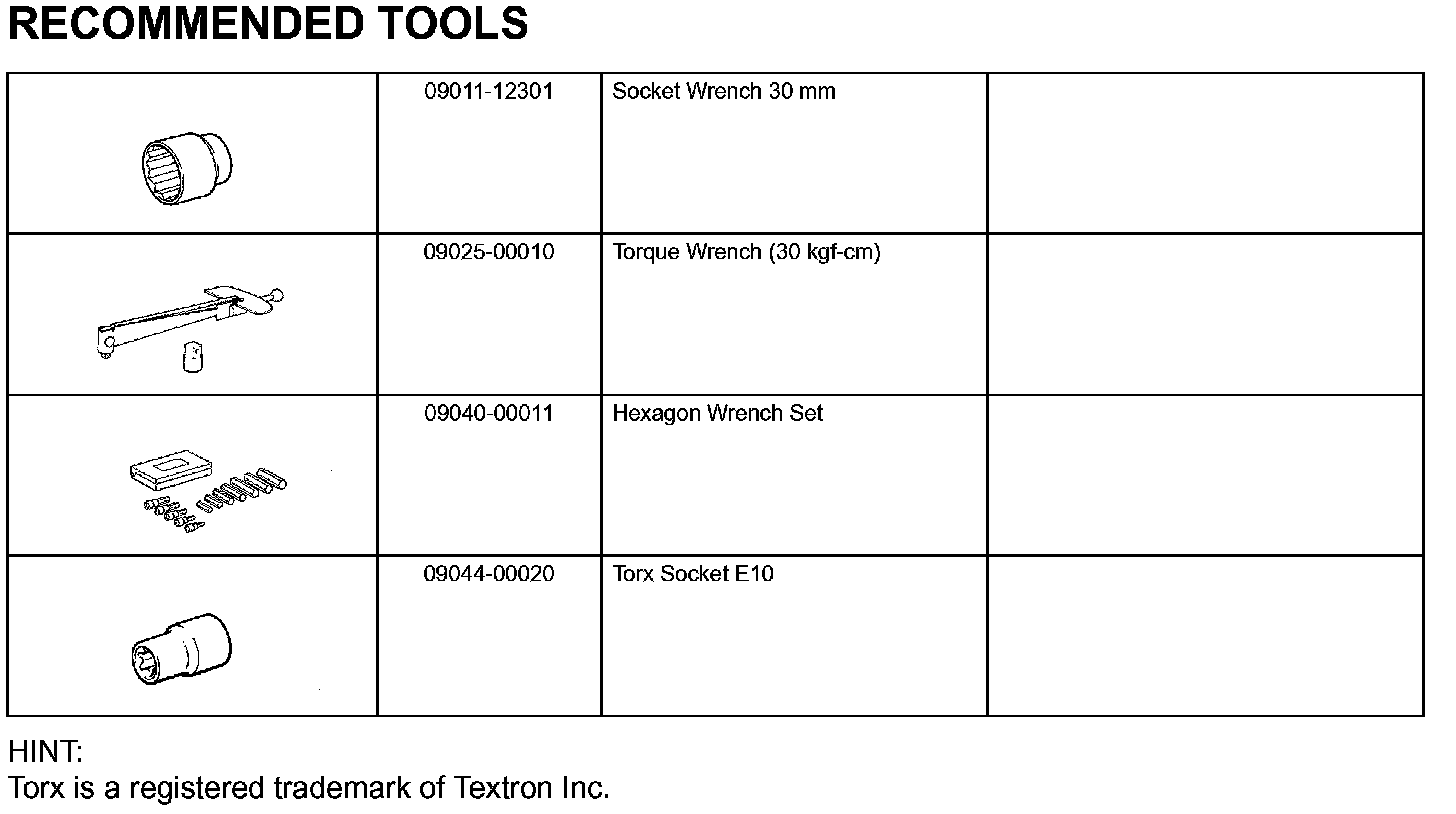

Differential - Recommended Tools:

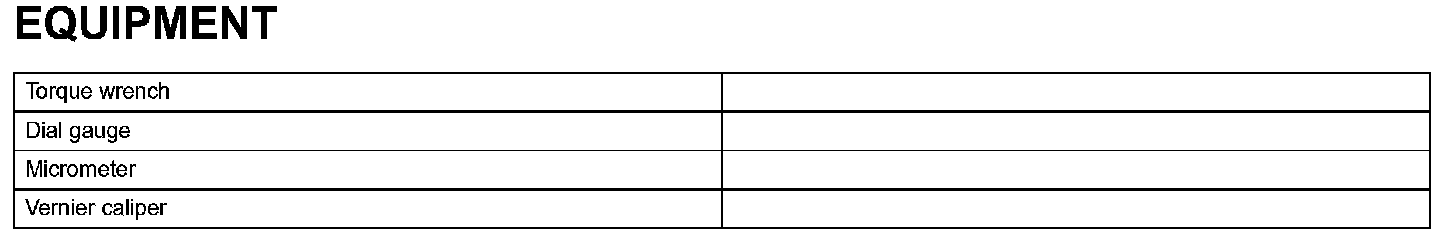

Differential - Equipment:

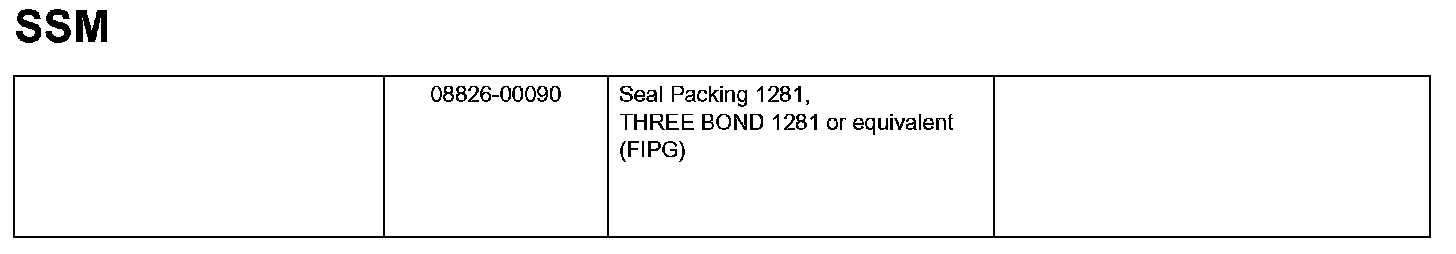

Differential - SSM:
