System Description
NAVIGATION: NAVIGATION SYSTEM: SYSTEM DESCRIPTION

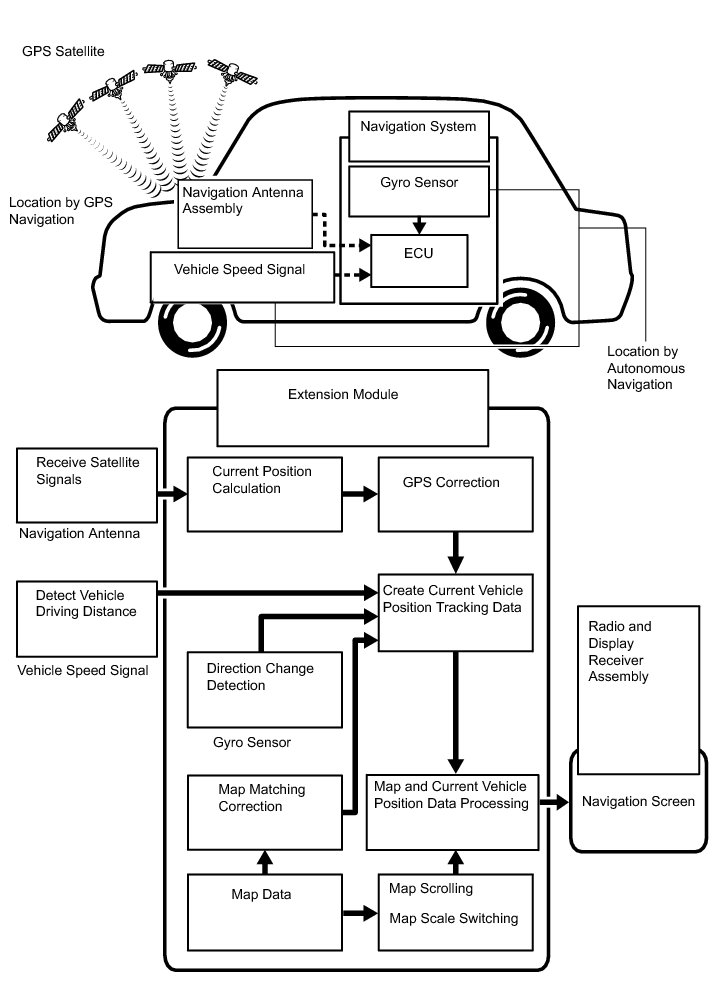

1. NAVIGATION SYSTEM OUTLINE
(a) Vehicle position tracking methods
It is essential that the navigation system correctly tracks the current vehicle position and displays it on the map. There are 2 methods to track the current vehicle position: autonomous (dead reckoning) and GPS* (satellite) navigation. Both navigation methods are used in conjunction with each other.
*: GPS (Global Positioning System)
HINT

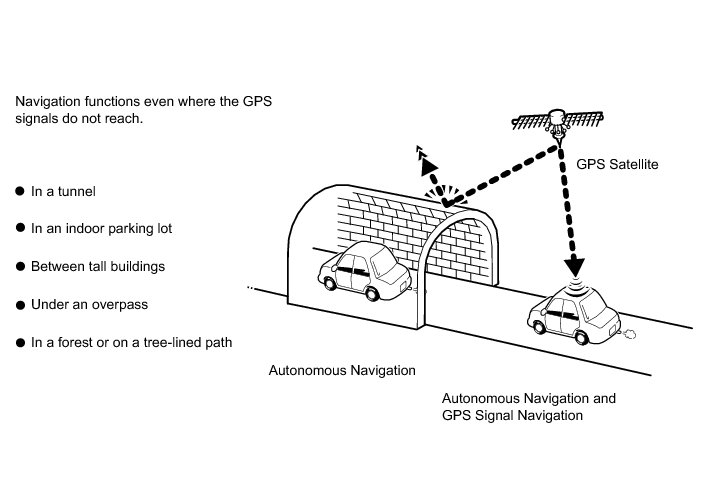

The combination of autonomous and GPS navigation makes it possible to display the vehicle position even when the vehicle is in places where GPS signals cannot be received. When only autonomous navigation is used, however, the mapping accuracy may slightly decrease.
(b) Autonomous navigation
This method determines the relative vehicle position based on the driving track determined by the gyro located in the extension module and the vehicle speed signal.
(1) Gyro sensor
Used to calculate the direction by detecting angular velocity. It is located in the extension module.
(2) Vehicle speed signal
Used to calculate the vehicle driving distance.

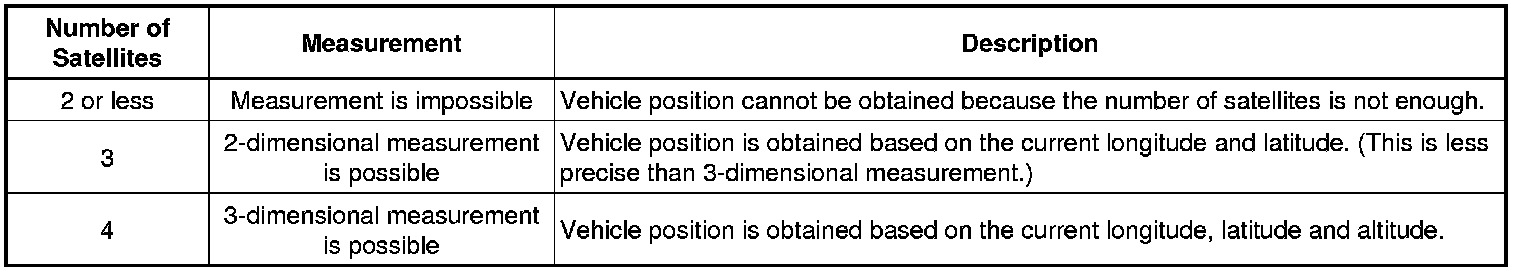

(c) GPS* navigation (Satellite navigation)
This method detects the absolute vehicle position using radio waves from GPS satellites.
*: GPS satellites were launched by the U.S. Department of Defense for military purposes.

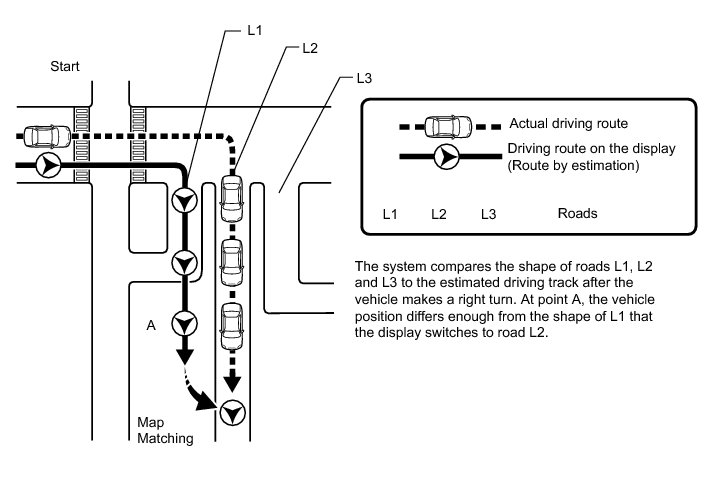

(d) Map matching
The current driving route is calculated by autonomous navigation (according to the gyro sensor and vehicle speed signal) and GPS navigation. This information is then compared with possible road shapes from the map data in the hard disk drive and the vehicle position is set onto the most appropriate road.
(e) Touch switch
Touch switches are touch-sensitive (interactive) switches operated by touching the screen. When a switch is pressed, the outer glass bends in to contact the inner glass at the pressed position. By doing this, the voltage ratio is measured and the pressed position is detected.
2. EXTENSION MODULE OUTLINE
The extension module resides in the vehicle. Inputs to the system are from a USB port, the GPS receiver through which the vehicle location is obtained, and connectivity via a "Bluetooth" enabled phone. The extension module enables the use of exclusive applications.
3. CD (Compact Disc) PLAYER OUTLINE
(a) A compact disc player uses a laser pickup to read digital signals recorded on a compact disc (CD). By converting the digital signals to analog, it can play music and audio.
CAUTION:
Do not look directly at the laser pickup because the CD player uses an invisible laser beam. Be sure to operate the player only as instructed.
NOTICE:
* Do not disassemble any part of the CD player.
* Do not apply oil to the CD player.
* Do not insert anything but a CD into the CD player.
(b) Usable discs
(1) This player can play only audio CDs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) that have any of the following marks:
(c) Precautions for use of discs
NOTICE:
* Copy-protected CDs cannot be played.
* CD-Rs and CD-RWs may not be played depending on the recording conditions or characteristics of the discs, or due to damage, dirt or deterioration caused by leaving the discs in the cabin for a long time.
* Unfinalized CD-Rs and CD-RWs cannot be played.
* DualDiscs that combine DVD recorded material on one side with CD digital audio material on the other cannot be played.
* Keep the discs away from dirt. Be careful not to damage the discs or leave your fingerprints on them.
* Hold discs by the outer edge and center hole with the label side up.
* Leaving the disc exposed halfway out of the slot for a long time after pressing the disc eject button may cause deformation of the disc, making the disc unusable.
* If discs have adhesive tape, stickers, CD labels or any traces of such labels attached, the discs may not be ejected or player malfunctions may result.
* Keep the discs away from direct sunlight. (Exposure to direct sunlight may cause deformation of the disc, making the disc unusable.)
* Do not use odd-shaped CDs because these may cause player malfunctions.
* Do not use discs whose recording portion is transparent or translucent because they may not be inserted, ejected or played normally.
* Use only 4.7 in. (12 cm) CDs.
* Do not use 3 in. (8 cm) CDs either with or without adapters.
HINT
* When it is cold or it is raining, if the windows mist up, mist and condensation may form in the player. In such cases, the CD may skip or stop in the middle of play. Ventilate or dehumidify the cabin for a while before using the player.
* The CD may skip if the player experiences strong vibrations when the vehicle is driven on rough roads or similar uneven surfaces.
(d) Cleaning
NOTICE:
Do not use a lens cleaner because it may cause a malfunction in the pickup portion of the player.

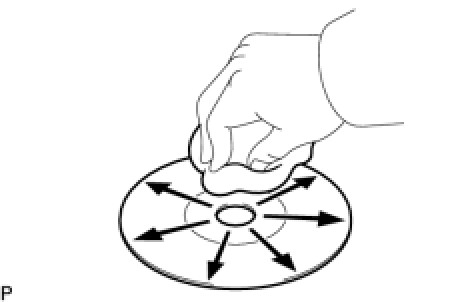

(1) If dirt is on the disc surface, wipe it clean with a soft dry cloth such as an eyeglass cleaner for plastic lenses from the inside to the outside in a radial direction.
NOTICE:
* Pressing on the disc by hand or rubbing the disc with a hard cloth may scratch the disc surface.
* Use of solvents such as record spray, antistatic agents, alcohol, benzine, thinners or a chemical cloth may cause damage to the disc, making the disc unusable.
4. MP3/WMA OUTLINE
(a) Playable MP3 file standards

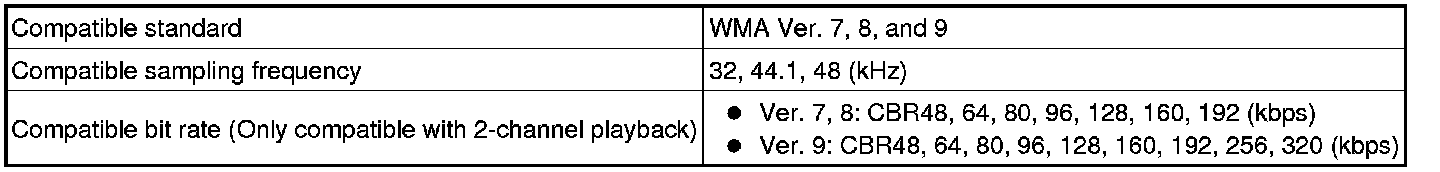

(b) Playable WMA file standards
(c) ID3 tag and WMA tag
(1) Additional text information called an ID3 tag can be input to MP3 files. Information such as song titles and artist names can be stored.
HINT
This player is compatible with ID3 tags of ID3 Ver. 1.0 and 1.1, and ID3 Ver. 2.2 and 2.3. (Number of characters complies with ID3 Ver. 1.0 and 1.1.)
(2) Additional text information called a WMA tag can be input to WMA files. Information such as song titles and artist names can be stored.
(d) Usable media
(1) Only CD-ROMs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) can be used to play MP3/WMA files.
NOTICE:
* CD-Rs and CD-RWs are more easily affected by a hot and humid environment than discs used for normal audio CDs. For this reason, some CD-Rs and CD-RWs do not play.
* If there are fingerprints or scratches on a disc, the disc may not play or the CD may skip.
* Some CD-Rs and CD-RWs may deteriorate if they are left in the cabin for a long time.
* Keep CD-Rs and CD-RWs in an opaque case.
(e) Usable media format
(1) Usable media format
HINT
* As for MP3/WMA files written in any unlisted format, the contents of the files may not be played normally or the file names or folder names may not be displayed correctly.
* This player is compatible with multi-session discs and can play CD-Rs and CD-RWs on which MP3/WMA files have been added. However, only the first session can be played.
* Discs whose first session includes both music data and MP3 or WMA format data cannot be played.

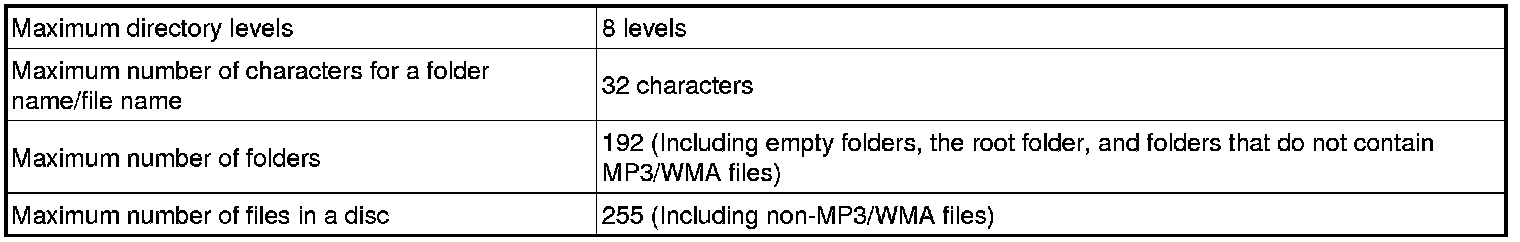

(2) Standards and restrictions
(f) File names
(1) Only files with an extension of ".mp3" or ".wma" can be recognized and played as MP3 or WMA files.
(2) Save MP3 or WMA files with an extension of ".mp3" or ".wma".
NOTICE:
If non-MP3 or non-WMA files are saved with an extension of ".mp3" or ".wma", those files may be wrongly recognized as MP3 or WMA files and played. A loud noise may occur and damage to the speakers may result.
5. "Bluetooth" OUTLINE
Text in Illustration
(a) "Bluetooth" is a trademark owned by Bluetooth SIG, Inc.
(b) "Bluetooth" is a wireless connection technology that uses the 2.4 GHz frequency band.
HINT
The communication performance of "Bluetooth" may vary depending on obstructions or radio wave conditions between communication devices, electromagnetic radiation, communication device sensitivity or antenna capacity.
(c) Hands-free function
(1) The "Bluetooth" built-in extension module and a "Bluetooth" compatible cellular phone*1 can be connected using a "Bluetooth" wireless connection. This enables the use of the hands-free function on the cellular phone even if the phone is in a pocket or bag. For this reason, it is not necessary to use a connector or cable to connect the cellular phone.
*1: Some versions of "Bluetooth" compatible cellular phones may not function.
(2) Compatible hands-free devices
* *1: This profile is necessary when using hands-free function.
* *2: This profile is necessary when using message function.
* *3: This profile is necessary when using "Entune" system function.
HINT
The amount of remaining battery charge displayed on the radio and display receiver assembly may be different from that of the portable player.
(d) "Bluetooth" audio function
(1) The "Bluetooth" built-in extension module and a "Bluetooth" compatible portable audio player*2 can be connected using a "Bluetooth" wireless connection. This enables files stored in the portable audio player to be heard from the vehicle speakers. In addition, operations such as play/stop can be performed directly from the extension module.
*2: Some versions of "Bluetooth" compatible audio players may not be able to operate the "Bluetooth" function, or music may play, but functions available using the extension module may be limited.

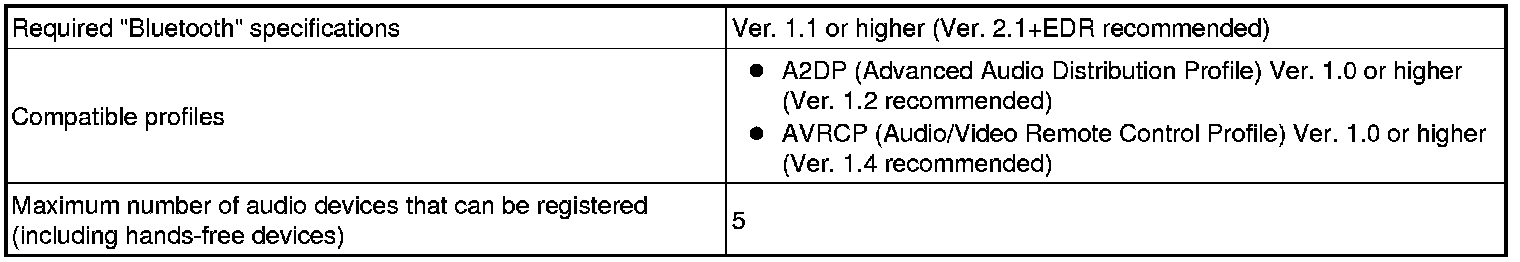

(2) Compatible "Bluetooth" audio devices
HINT
The amount of remaining battery charge displayed on the radio and display receiver assembly may be different from that of the portable player.
6. "Entune" SYSTEM FUNCTION OUTLINE
(a) Entune is a service that enables Entune applications and Entune content from a cellular phone to be used via the extension module screen. As Bluetooth communication is used for the communication between a cellular phone and the extension module, before using the "Entune" service on the navigation system, the cellular phone needs to be registered with the navigation system as a Bluetooth device. For details regarding "Entune" operations, each of the applications and compatible phones, refer to http://www.toyota.com/entune/.
7. RADIO DESCRIPTION

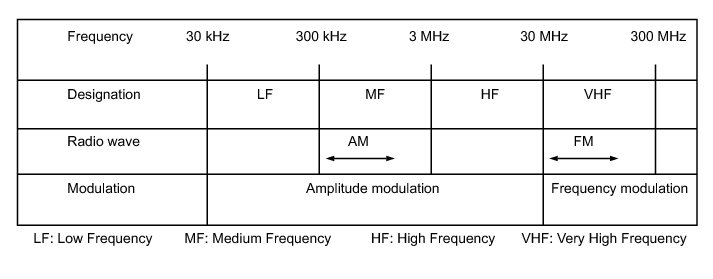

(a) Radio frequency band
(1) Radio broadcasts use the radio frequency bands shown in the table below.
(b) Service area
(1) The service areas of AM and FM broadcasts are vastly different. Sometimes an AM broadcast can be received very clearly but an FM stereo broadcast cannot. FM stereo has the smallest service area, and is prone to pick up static and other types of interference such as noise.
Text in Illustration
(c) Radio reception problems
HINT
In addition to static, other problems such as "phasing", "multipath" and "fade out" exist. These problems are not caused by electrical noise, but by the radio signal propagation method itself.
(1) Phasing
AM broadcasts are susceptible to electrical interference and another kind of interference called phasing. Occurring only at night, phasing is the interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off the ionosphere and the other signal is received directly from the transmitter.
Text in Illustration
(2) Multipath
Multipath is a type of interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off buildings or mountains and the other signal is received directly from the transmitter.
Text in Illustration
(3) Fade out
Fade out is caused by objects (buildings, mountains and other such large obstacles) that deflect away part of a signal, resulting in a weaker signal when the object is between the transmitter and vehicle. High frequency radio waves, such as FM broadcasts, are easily deflected by obstructions. Low frequency radio waves, such as AM broadcasts, are less likely to deflect.
Text in Illustration
(d) Noise problem
Technicians must have a clear understanding about each customer's noise complaint. Use the following table to diagnose noise problems.
8. "HD Radio" FUNCTION OUTLINE (BROADCAST IN NORTH AMERICA ONLY)
(a) "HD Radio" system is a radio system that broadcasts in the IBOC (In-Band On-Channel) form that the iBiquity Co. has developed. By expanding the bandwidth per channel of conventional FM/AM bands, digital audio and data signals are additionally transmitted.
"HD Radio" Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. "HD Radio" and the HD and HD Radio logos are proprietary trademarks of iBiquity Digital Corp.
The information for the music currently being listened to is stored in the system and transmitted to the "iPod" connected to the system. The information transferred to the "iPod" can be used for purchasing the music through "iTunes" music store.
9. SDARS SYSTEM FUNCTION OUTLINE (BROADCAST IN NORTH AMERICA ONLY)
(a) Satellite Digital Audio Radio Service (SDARS) is a satellite digital radio broadcast provided by Sirius XM Radio Inc. The broadcast (pay-type) is performed through satellites and terrestrial repeater networks. Several unique channels are available, and even if a vehicle changes locations, the same information can be received without breaks. Information such as song names, broadcast station names, etc. can be received. Also, traffic information can be received and displayed on the navigation screen.
NOTICE:
To receive audio-visual pay-type broadcasts, the customer must enter into a pay-type contract with XM Satellite Radio Inc. After entering into a contract, registration of an 8-digit XM Radio ID is necessary. Also, if parts are replaced, the XM Radio ID must be reregistered.
10. USB AUDIO SYSTEM FUNCTION OUTLINE
(a) The No. 1 stereo jack adapter assembly is equipped with a USB terminal. Connecting a USB device or "iPod" to the No. 1 stereo jack adapter assembly allows music files to be played. Not only is it possible to play music from a USB device with audio functions, is also possible to play MP3 or WMA music files that are stored on a USB device. In addition, "iPod" control software is installed, allowing file selection from playlists and operation using shuffle mode.
HINT
* Visual contents of an "iPod" cannot be played.
* Operation through the controls of a USB device or "iPod" cannot be performed while it is connected.
(b) USB audio system compatible model
(1) USB device
The following device formats can be used:
MP3 and WMA files written in any format other than those listed above may not play correctly, and their names and folder names may not be displayed correctly.
Items related to standards and limitations are as follows:
* Maximum directory hierarchy: 8 levels
* Maximum number of folders in device: 3000 (including the root folder)
* Maximum number of files in device: 9999
* Maximum number of files per folder: 255
(2) "iPod"
"iPod" is a trademark of Apple Inc., registered in the U.S. and other countries.

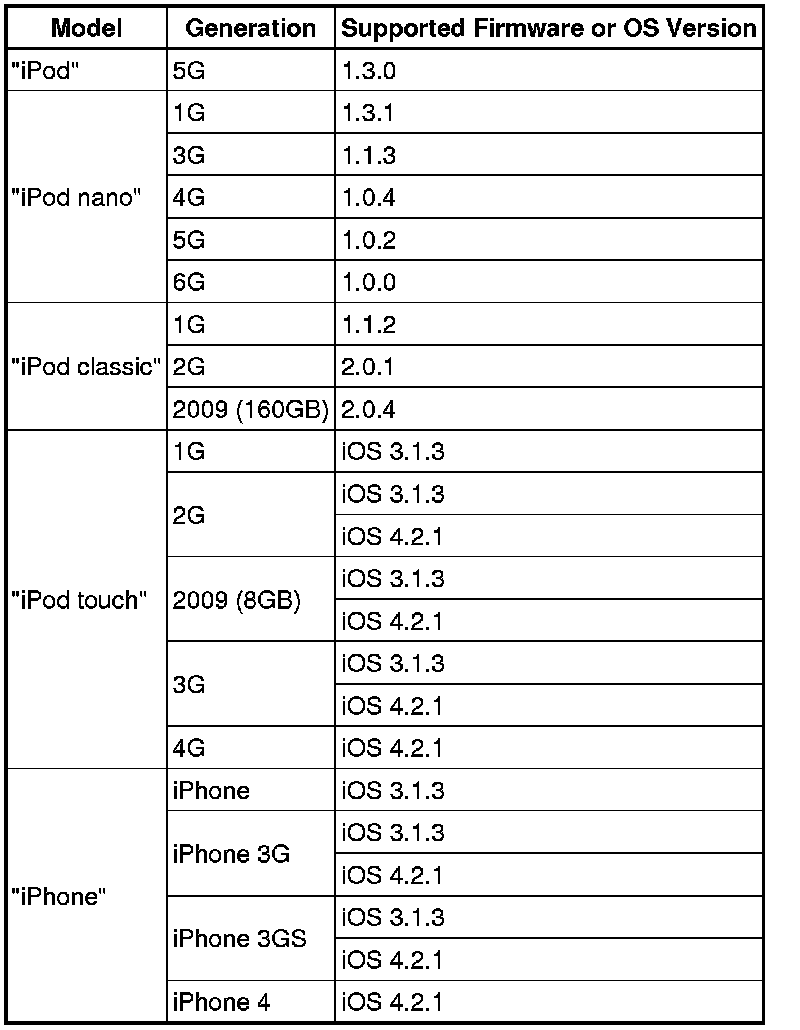

Supported Models and Firmware or OS Versions

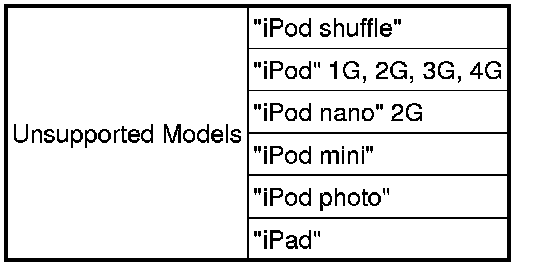

Unsupported Models
HINT
* "iPod" models and firmware versions that are not listed in "Supported Models and Firmware or OS Versions" may not function, or may not function correctly. Also depending on differences between models or software versions etc., some models listed in the table might be incompatible with this system.
* Depending on the generation of "iPod" used, response to commands from the vehicle may be delayed.
Items related to standards and limitations are as follows:
* Maximum number of lists in device: 9999
* Maximum number of songs in device: 65025
* Maximum number of songs per list: No limitation
11. AUTOMATIC SOUND LEVELIZER (ASL) FUNCTION OUTLINE
(a) The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases). The ASL adjusts the volume level based upon vehicle speed signals that it receives from the combination meter assembly.
12. COMMUNICATION SYSTEM

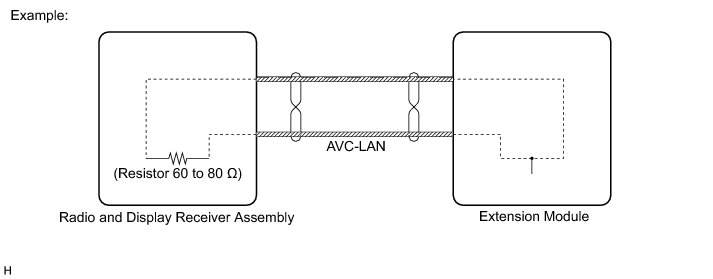

(a) AVC-LAN Outline
(1) Components of the navigation system communicate with each other via the AVC-LAN.
(2) The AVC-LAN uses a twisted pair of wires for its communication lines.
(3) The master unit of the AVC-LAN is the radio and display receiver assembly.
HINT
* The radio and display receiver assembly has the resistance (60 to 80 Ohms) necessary for communication.
* If a short or open circuit occurs in the AVC-LAN circuit, communication is interrupted and the system will not operate normally.
13. DIAGNOSTIC FUNCTION OUTLINE
(a) The navigation system has a diagnostic function (the result is indicated on the master unit).
