Pinout Values and Diagnostic Parameters

NAVIGATION: NAVIGATION SYSTEM: TERMINALS OF ECU

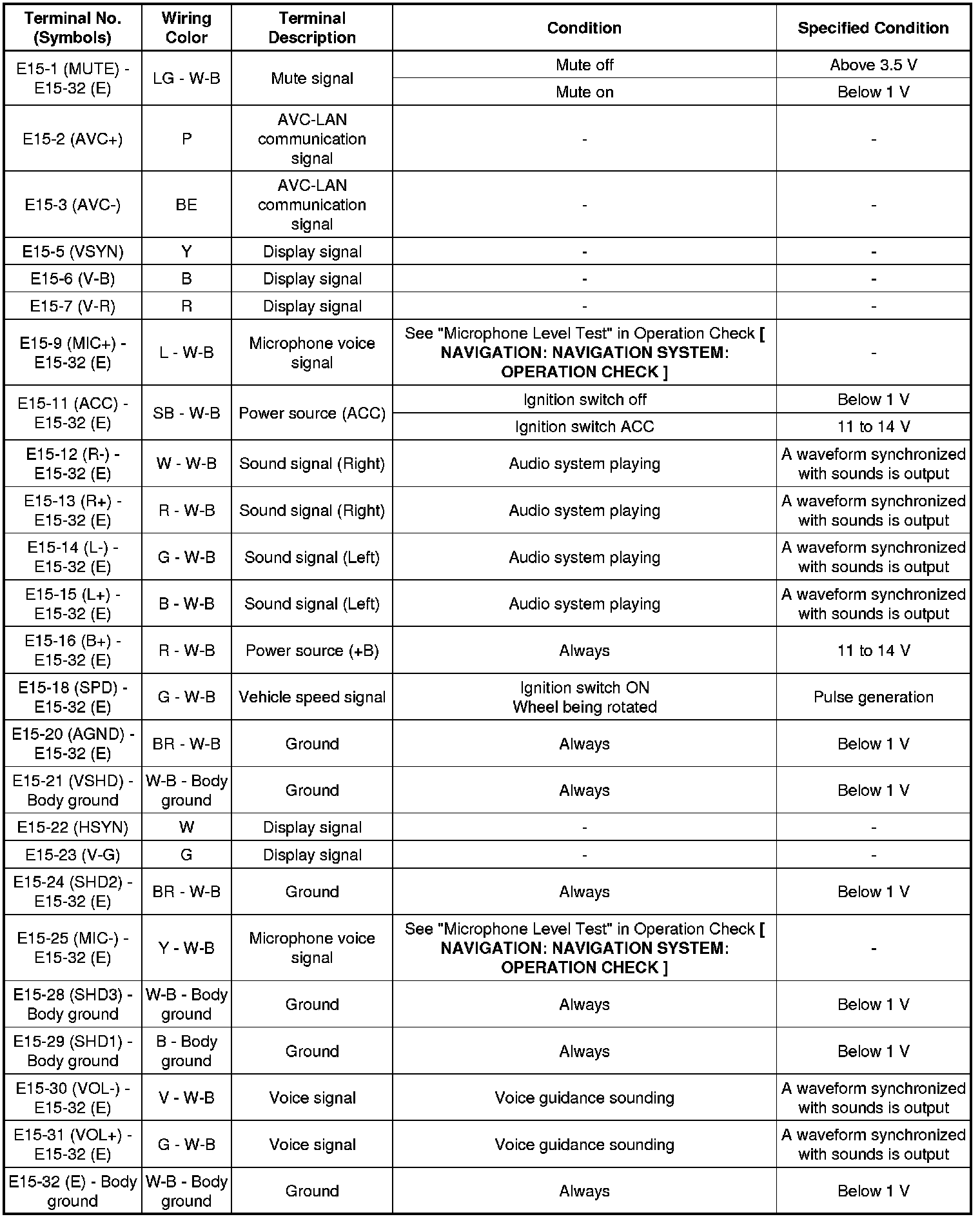

1. RADIO AND DISPLAY RECEIVER ASSEMBLY

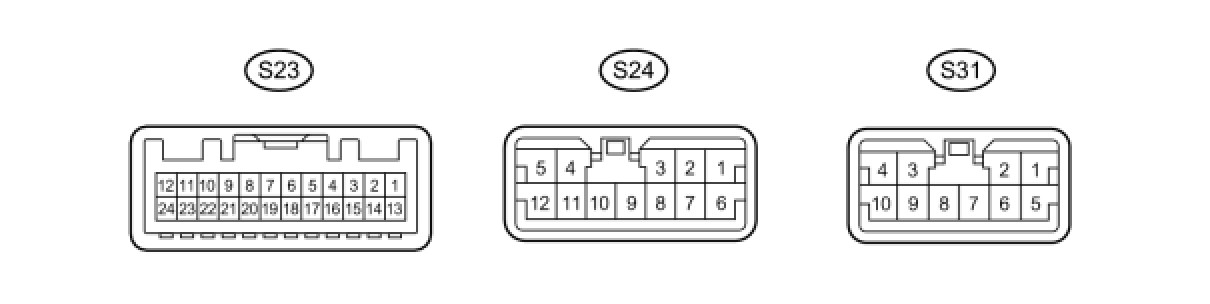

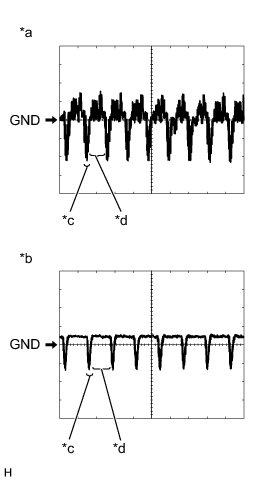

(a) Reference (Oscilloscope waveform):





(1) Waveform 1 (camera lens not covered, displaying an image)





HINT
The video waveform changes according to the image sent by the television camera assembly.

(2) Waveform 2 (camera lens covered, blacking out the screen)





HINT
The video waveform changes according to the image sent by the rear television camera assembly.

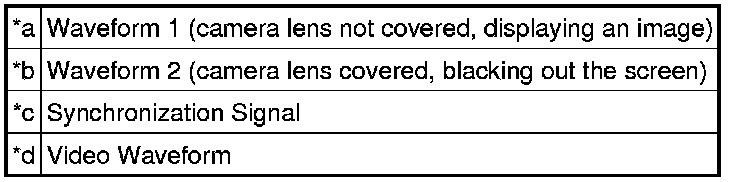

Text in Illustration

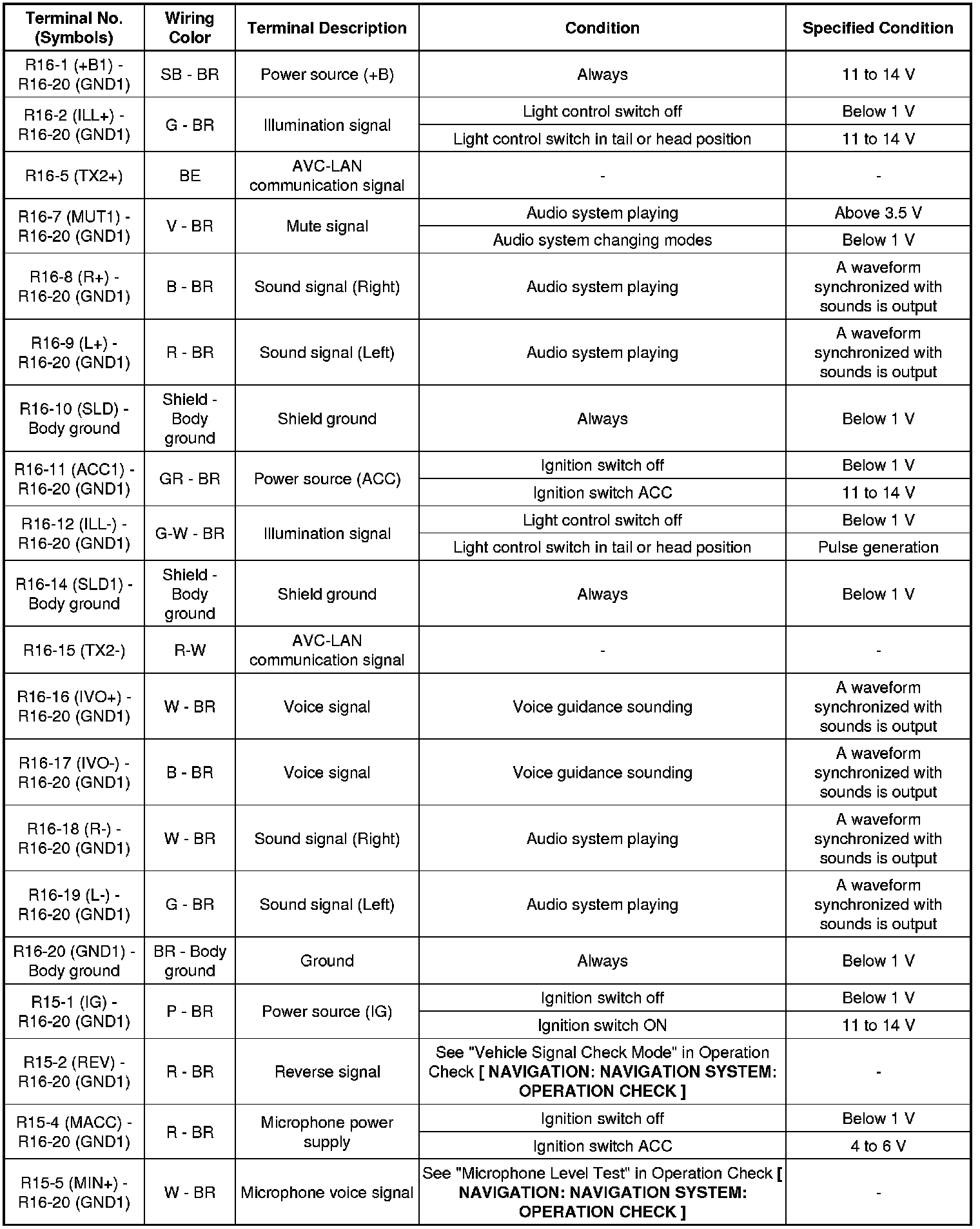

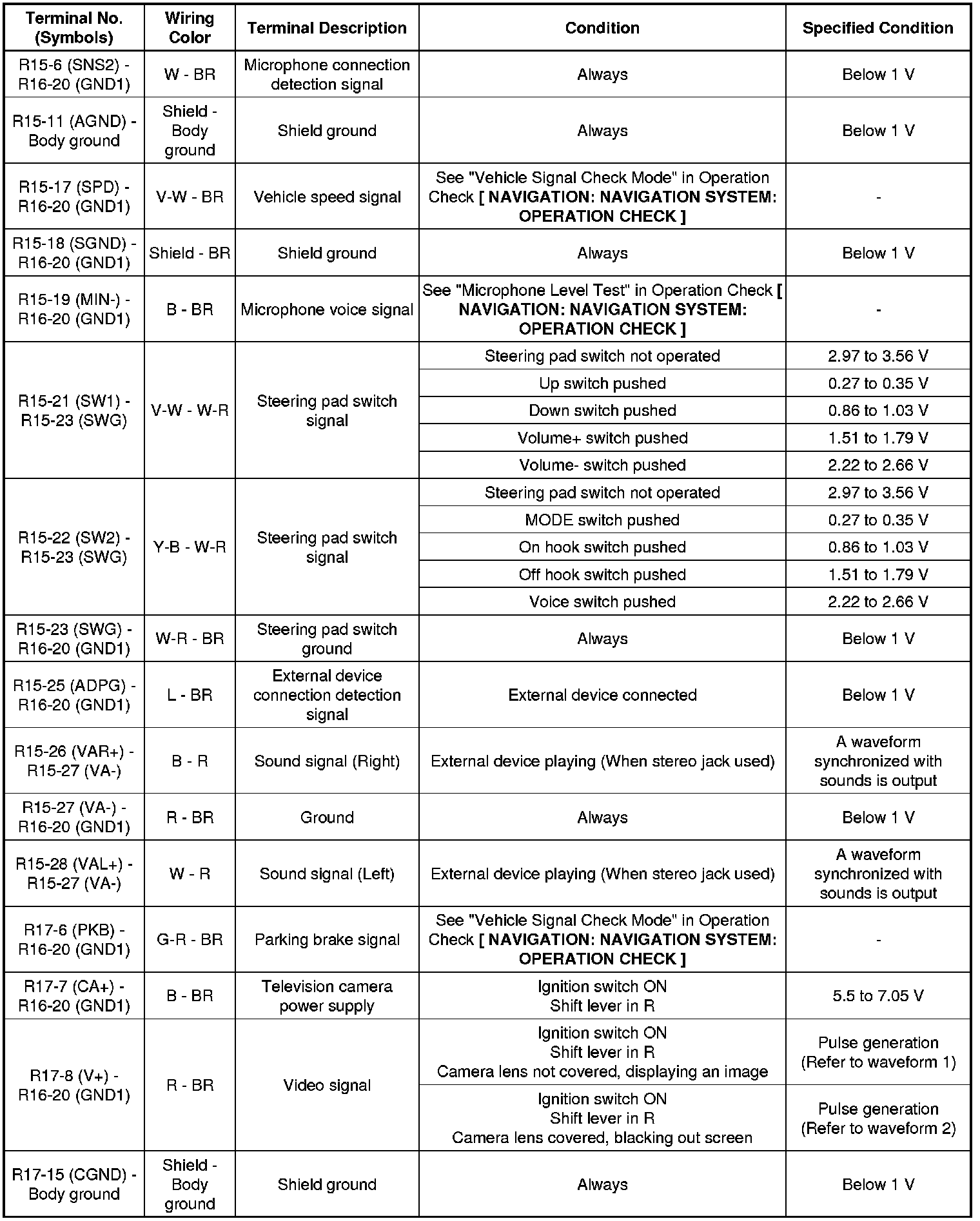

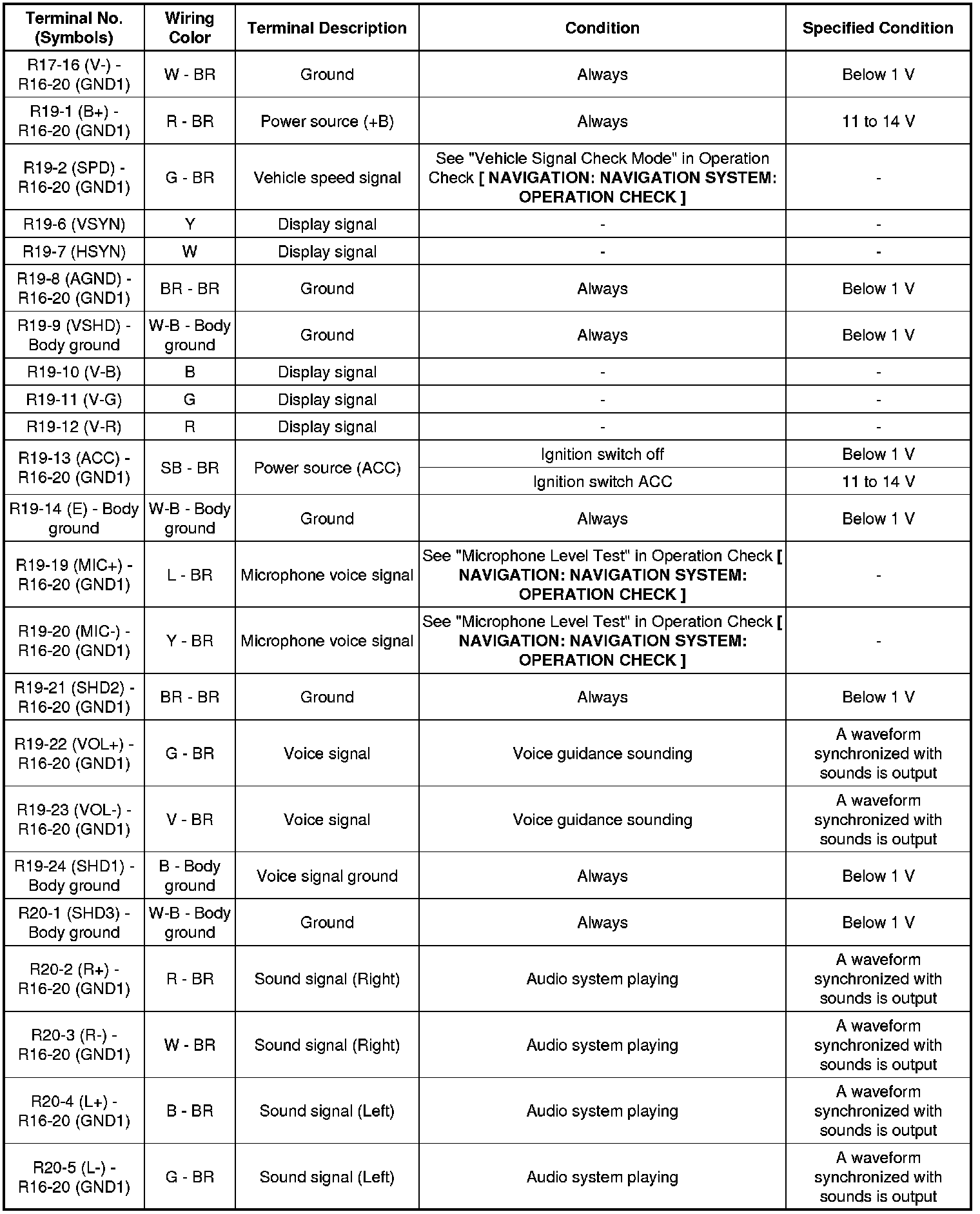

2. EXTENSION MODULE

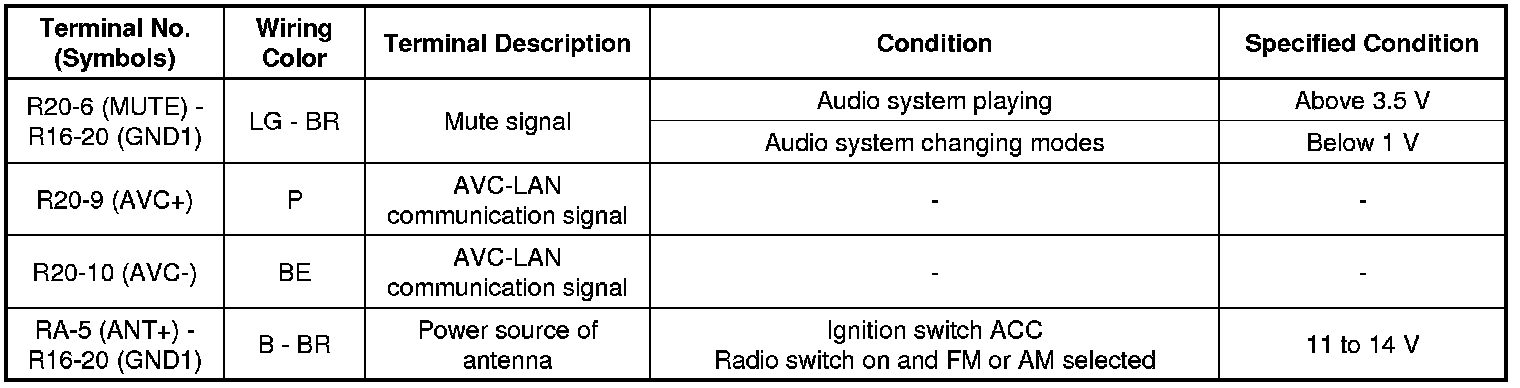

3. STEREO COMPONENT AMPLIFIER ASSEMBLY
