Pinout Values and Diagnostic Parameters

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: TERMINALS OF ECU

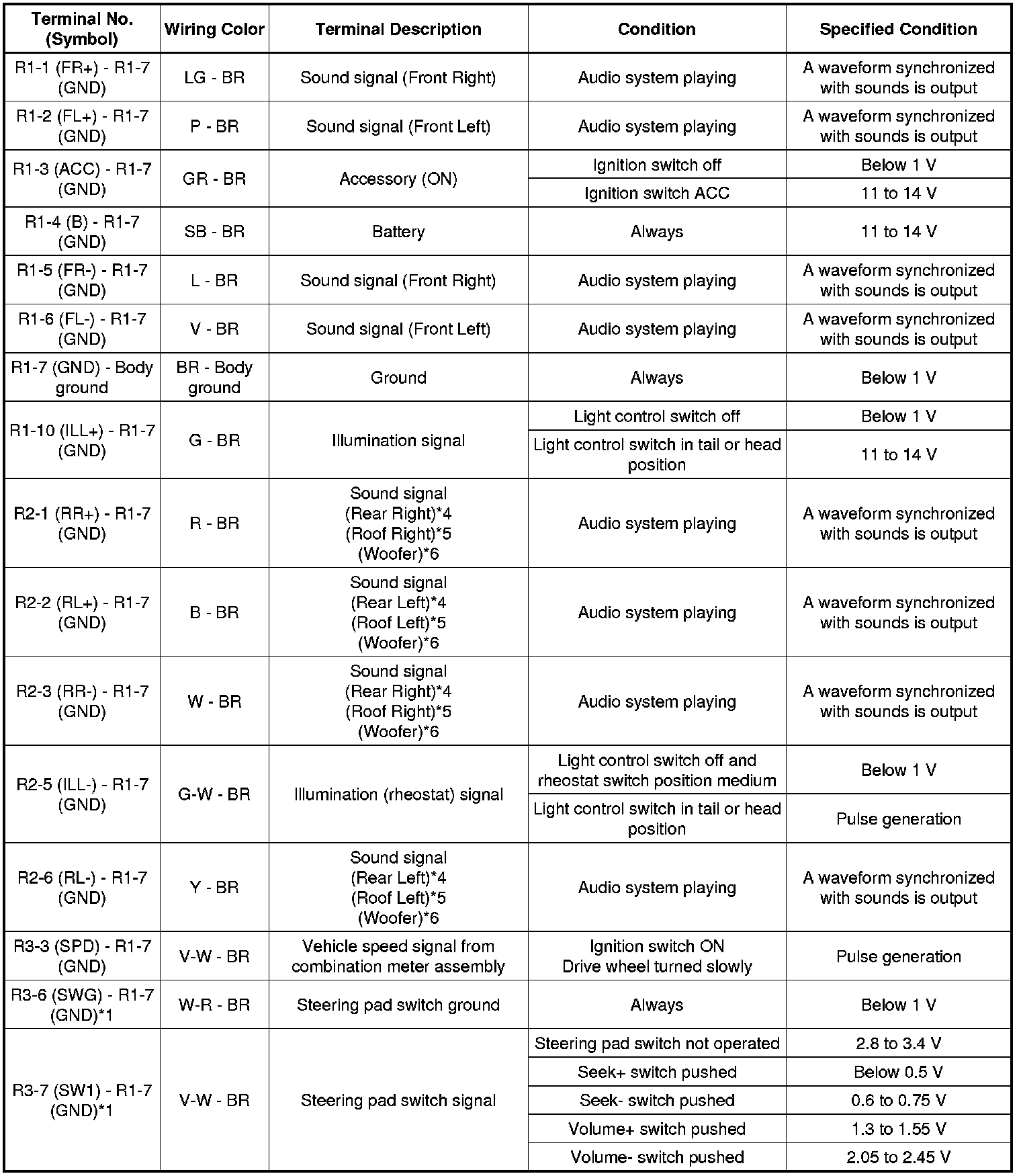

1. RADIO RECEIVER ASSEMBLY













* *1: w/ Steering Pad Switch

* *2: w/ Microphone

* *3: w/ USB Audio System

* *4: for Double Cab

* *5: for Access Cab

* *6: for 7 Speakers

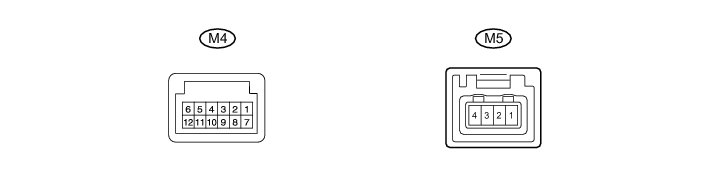

2. MULTI-MEDIA INTERFACE ECU (w/ USB Audio System)
