Home >> Toyota Truck >> 2012 >> Tacoma PreRunner V6-4.0L (1GR-FE) >> Repair and Diagnosis >> Body and Frame >> Specifications >> Exterior

Exterior

SERVICE SPECIFICATIONS: EXTERIOR: TORQUE SPECIFICATIONS

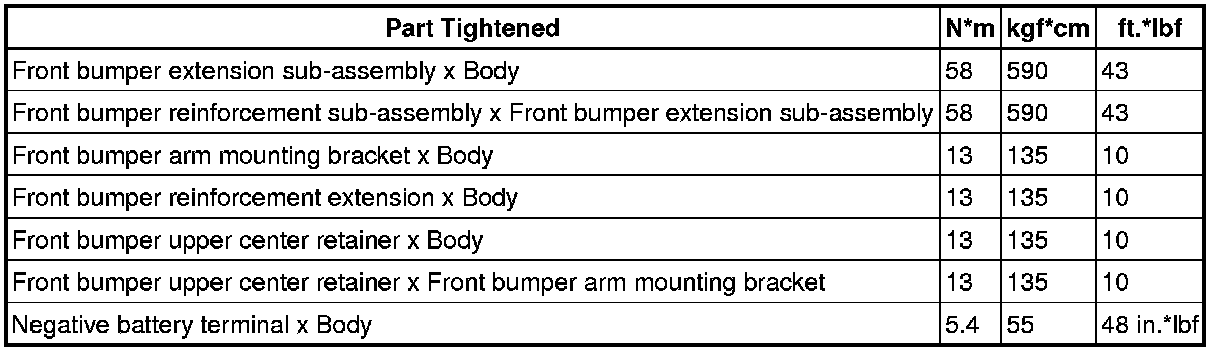

FRONT BUMPER:

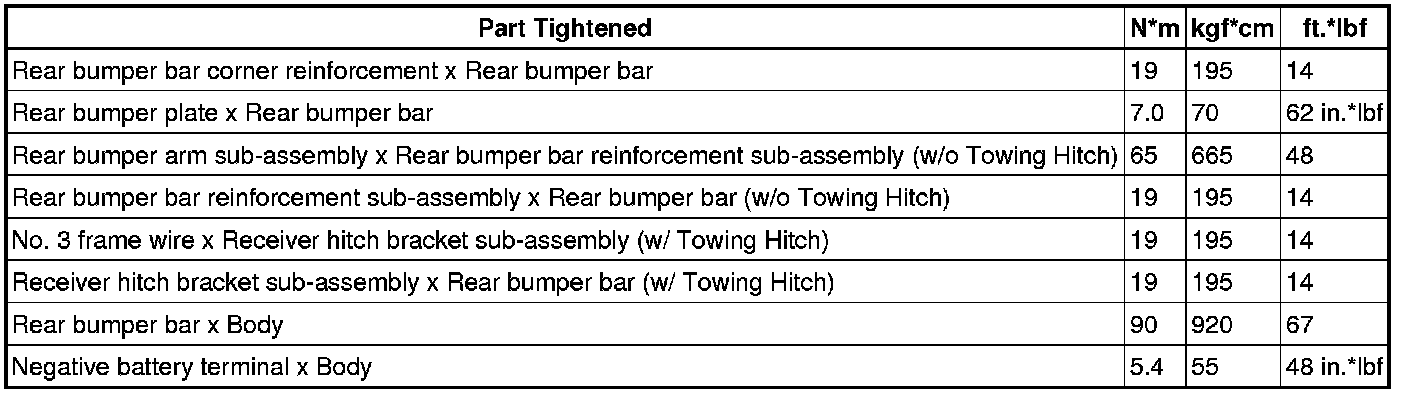

REAR BUMPER:

FRONT DOOR BELT MOULDING:

REAR DOOR BELT MOULDING:
